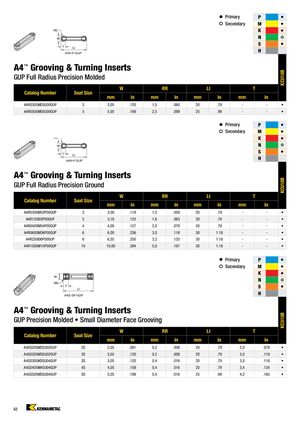

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 52

• Primary P • • Secondary M • K • N • S • A4R-P-GUP H A4™ Grooving & Turning Inserts KCU10B GUP Full Radius Precision Molded W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4R0305M03U00GUP 3 3,05 .120 1,5 .060 20 .79 - - • A4R0505M05U00GUP 5 5,05 .199 2,5 .099 25 .99 - - • • Primary P • • Secondary M • K • N • S • A4R-P-GUP H A4™ Grooving & Turning Inserts KCU10B GUP Full Radius Precision Ground W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4R0300M03P00GUP 3 3,00 .118 1,5 .059 20 .79 - - • A4R125I03P00GUP 3 3,18 .125 1,6 .063 20 .79 - - • A4R0400M04P00GUP 4 4,00 .157 2,0 .079 20 .79 - - • A4R0600M06P00GUP 6 6,00 .236 3,0 .118 30 1.18 - - • A4R250I06P00GUP 6 6,35 .250 3,2 .125 30 1.18 - - • A4R1000M10P00GUP 10 10,00 .394 5,0 .197 30 1.18 - - • • Primary P • • Secondary M • K • N • S • A4G-SP-GUP H A4™ Grooving & Turning Inserts KCU10B GUP Precision Molded • Small Diameter Face Grooving W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4G0205M2SU02GUP 2S 2,05 .081 0,2 .008 20 .79 2,0 .079 • A4G0305M3SU02GUP 3S 3,05 .120 0,2 .008 20 .79 3,0 .118 • A4G0305M3SU04GUP 3S 3,05 .120 0,4 .016 20 .79 3,0 .118 • A4G0405M4SU04GUP 4S 4,05 .159 0,4 .016 20 .79 3,4 .134 • A4G0505M5SU04GUP 5S 5,05 .199 0,4 .016 25 .99 4,2 .165 • 52
