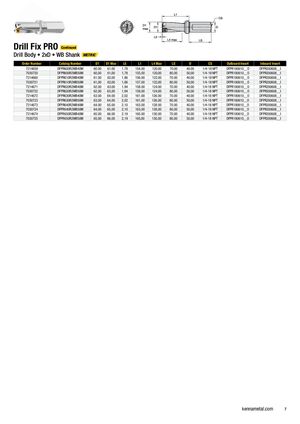

Drill Fix PRO
Продолжение. Корпус сверла • 2xD • Хвостовик WB МЕТРИЧЕСКИЙ
| Номер заказа | Номер каталога | D1 | D1 макс | L5 | L1 | L4 макс | LS | D | CS | Наружная пластина | Внутренняя пластина |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7214653 | DFPR550R2WB40M | 55.00 | 56.00 | 1.37 | 142.00 | 110.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030715 | DFPR550R2WB50M | 55,00 | 56,00 | 1,37 | 144,00 | 110,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214654 | DFPR560R2WB40M | 56.00 | 57.00 | 1.45 | 144.00 | 112.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030716 | DFPR560R2WB50M | 56,00 | 57,00 | 1,45 | 146,00 | 112,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214655 | DFPR570R2WB40M | 57.00 | 58.00 | 1.53 | 146.00 | 114.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030717 | DFPR570R2WB50M | 57,00 | 58,00 | 1,53 | 147,00 | 114,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214656 | DFPR580R2WB40M | 58.00 | 59.00 | 1.61 | 148.00 | 116.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030718 | DFPR580R2WB50M | 58,00 | 59,00 | 1,61 | 149,00 | 116,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214657 | DFPR590R2WB40M | 59.00 | 60.00 | 1.70 | 152.00 | 118.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030719 | DFPR590R2WB50M | 59,00 | 60,00 | 1,70 | 153,00 | 118,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214659 | DFPR600R2WB40M | 60.00 | 61.00 | 1.78 | 154.00 | 120.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030720 | DFPR600R2WB50M | 60,00 | 61,00 | 1,78 | 155,00 | 120,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214660 | DFPR610R2WB40M | 61.00 | 62.00 | 1.86 | 156.00 | 122.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030721 | DFPR610R2WB50M | 61,00 | 62,00 | 1,86 | 157,00 | 122,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214671 | DFPR620R2WB40M | 62.00 | 63.00 | 1.94 | 158.00 | 124.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030722 | DFPR620R2WB50M | 62,00 | 63,00 | 1,94 | 159,00 | 124,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214672 | DFPR630R2WB40M | 63.00 | 64.00 | 2.02 | 161.00 | 126.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030723 | DFPR630R2WB50M | 63,00 | 64,00 | 2,02 | 161,00 | 126,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214673 | DFPR640R2WB40M | 64.00 | 65.00 | 2.10 | 163.00 | 128.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030724 | DFPR640R2WB50M | 64,00 | 65,00 | 2,10 | 163,00 | 128,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214674 | DFPR650R2WB40M | 65.00 | 66.00 | 2.19 | 165.00 | 130.00 | 70.00 | 40.00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030725 | DFPR650R2WB50M | 65,00 | 66,00 | 2,19 | 165,00 | 130,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
