Сверла со сменными пластинами линейки Drill Fix PRO Kennametal 2024 - страница 13

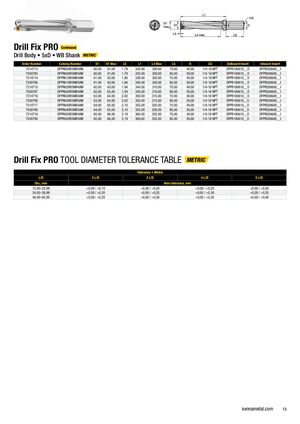

Drill Fix PRO Continued Drill Body • 5xD • WB Shank METRIC Order Number Catalog Number D1 D1 Max L5 L1 L4 Max LS D CS Outboard Insert Inboard Insert 7214713 DFPR600R5WB40M 60.00 61.00 1.78 334.00 300.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030785 DFPR600R5WB50M 60,00 61,00 1,78 335,00 300,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214714 DFPR610R5WB40M 61.00 62.00 1.86 339.00 305.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030786 DFPR610R5WB50M 61,00 62,00 1,86 340,00 305,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214715 DFPR620R5WB40M 62.00 63.00 1.94 344.00 310.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030787 DFPR620R5WB50M 62,00 63,00 1,94 345,00 310,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214716 DFPR630R5WB40M 63.00 64.00 2.02 350.00 315.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030788 DFPR630R5WB50M 63,00 64,00 2,02 350,00 315,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214717 DFPR640R5WB40M 64.00 65.00 2.10 355.00 320.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030789 DFPR640R5WB50M 64,00 65,00 2,10 355,00 320,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214718 DFPR650R5WB40M 65.00 66.00 2.19 360.00 325.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030790 DFPR650R5WB50M 65,00 66,00 2,19 360,00 325,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I Drill Fix PRO TOOL DIAMETER TOLERANCE TABLE METRIC Tolerance • Metric L/D 2 L/D 3 L/D 4 L/D 5 L/D Dia., mm Hole tolerance, mm 12,00–23,99 +0,00 / +0,15 +0,00 / +0,20 +0,00 / +0,25 +0,00 / +0,30 24,00–39,99 +0,00 / +0,20 +0,00 / +0,25 +0,00 / +0,30 +0,00 / +0,35 40,00–65,00 +0,00 / +0,25 +0,00 / +0,30 +0,00 / +0,35 +0,00 / +0,40 kennametal.com 13
