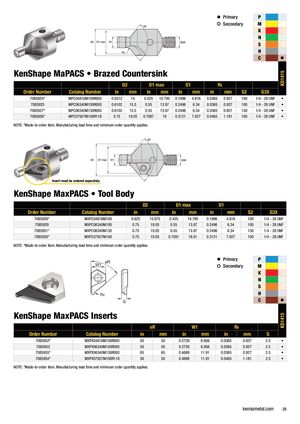

• Primary P • Secondary M K N S H C • KenShape MaPACS • Brazed Countersink KD1415 D2 D1 max D1 Rε Order Number Catalog Number in mm in mm in mm in mm S2 G3X 7085924* MPC04816M100R093 0.5512 14 0.425 10.795 0.1896 4.816 0.0365 0.927 100 1/4 - 28 UNF • 7085925 MPC06340M100R093 0.6102 15.5 0.55 13.97 0.2496 6.34 0.0365 0.927 100 1/4 - 28 UNF • 7085927* MPC06340M130R093 0.6102 15.5 0.55 13.97 0.2496 6.34 0.0365 0.927 130 1/4 - 28 UNF • 7085926* MPC07927M100R118 0.75 19.05 0.7087 18 0.3121 7.927 0.0465 1.181 100 1/4 - 28 UNF • NOTE: *Made-to-order item. Manufacturing lead time and minimum order quantity applies. Insert must be ordered separately. KenShape MaxPACS • Tool Body D2 D1 max D1 Order Number Catalog Number in mm in mm in mm S2 G3X 7085928* MXPC04816M100 0.625 15.875 0.425 10.795 0.1896 4.816 100 1/4 - 28 UNF 7085929 MXPC06340M100 0.75 19.05 0.55 13.97 0.2496 6.34 100 1/4 - 28 UNF 7085951* MXPC06340M130 0.75 19.05 0.55 13.97 0.2496 6.34 130 1/4 - 28 UNF 7085930* MXPC07927M100 0.75 19.05 0.7091 18.01 0.3121 7.927 100 1/4 - 28 UNF NOTE: *Made-to-order item. Manufacturing lead time and minimum order quantity applies. • Primary P • Secondary M K N S H C • KenShape MaxPACS Inserts KD1415 eR W1 Rε Order Number Catalog Number in mm in mm in mm S 7085952* MXPX04816M100R093 50 50 0.2739 6.956 0.0365 0.927 2.5 • 7085953 MXPX06340M100R093 50 50 0.2739 6.956 0.0365 0.927 2.5 • 7085955* MXPX06340M130R093 65 65 0.4689 11.91 0.0365 0.927 2.5 • 7085954* MXPX07927M100R118 50 50 0.4689 11.91 0.0465 1.181 2.5 • NOTE: *Made-to-order item. Manufacturing lead time and minimum order quantity applies. kennametal.com 25
