Решения Kennametal для обработки композитов 2024 - страница 19

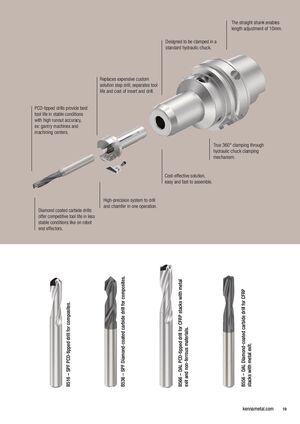

The straight shank enables length adjustment of 10mm. Designed to be clamped in a standard hydraulic chuck. Replaces expensive custom solution step drill, separates tool life and cost of insert and drill. PCD-tipped drills provide best tool life in stable conditions with high runout accuracy, ex: gantry machines and machining centers. True 360° clamping through hydraulic chuck clamping mechanism. Cost-effective solution, easy and fast to assemble. High-precision system to drill and chamfer in one operation. Diamond coated carbide drills offer competitive tool life in less stable conditions like on robot end effectors. B536 – SPF Diamond-coated carbide drill for composites. B566 – DAL PCD-tipped drill for CFRP stacks with metal B556 – DAL Diamond-coated carbide drill for CFRP B516 – SPF PCD-tipped drill for composites. exit and non-ferrous materials. stacks with metal exit. kennametal.com 19
