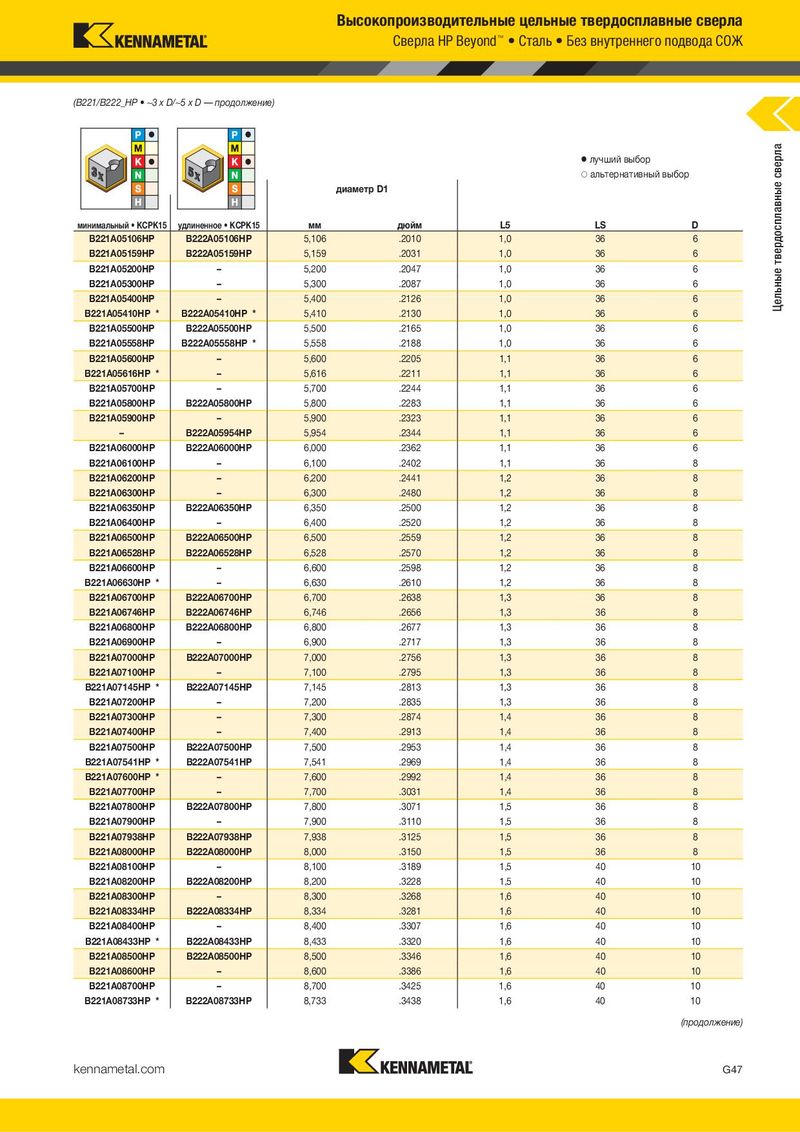

Основной каталог Kennametal вращающиеся инструменты 2018 - страница 81

Предыдущая страница Следующая страница

Навигация

(B221/B222_HP • ~3 x D/~5 x D — продолжение)

лучший выбор альтернативный выбор диаметр D1

минимальный • KCPK15удлиненное • KCPK15ммдюймL5LSD
B221A05106HPB222A05106HP5,106.20101,0366
B221A05159HPB222A05159HP5,159.20311,0366
Значения L, L3 и L4 max приведены в таблице размеров B221A05200HP–5,200.20471,0366
Цельные твердосплавные сверла на вкладке.
B221A05300HP–5,300.20871,0366
B221A05400HP–5,400.21261,0366
�лучший выбор
диаметр D1�альтернативный выбор
минимальный • KCPK15удлиненное • KCPK15ммдюймL5LS D
B221A05106HPB222A05106HP5,106.20101,036 6
B221A05159HPB222A05159HP5,159.20311,036 6
B221A05200HP–5,200.20471,036 6
B221A05300HP–5,300.20871,036 6
B221A05400HP–5,400.21261,036 6
B221A05410HPB222A05410HP5,410.21301,036 6
B221A05500HPB222A05500HP5,500.21651,036 6
B221A05558HPB222A05558HP5,558.21881,036 6
B221A05600HP–5,600.22051,136 6
B221A05616HP–5,616.22111,136 6
B221A05700HP–5,700.22441,136 6
B221A05800HPB222A05800HP5,800.22831,136 6
B221A05900HP–5,900.23231,136 6
–B222A05954HP5,954.23441,136 6
B221A06000HPB222A06000HP6,000.23621,136 6
B221A06100HP–6,100.24021,136 8
B221A06200HP–6,200.24411,236 8
B221A06300HP–6,300.24801,236 8
B221A06350HPB222A06350HP6,350.25001,236 8
B221A06400HP–6,400.25201,236 8
B221A06500HPB222A06500HP6,500.25591,236 8
B221A06528HPB222A06528HP6,528.25701,236 8
B221A06600HP–6,600.25981,236 8
B221A06630HP–6,630.26101,236 8
B221A06700HPB222A06700HP6,700.26381,336 8
B221A06746HPB222A06746HP6,746.26561,336 8
B221A06800HPB222A06800HP6,800.26771,336 8
B221A06900HP–6,900.27171,336 8
B221A07000HPB222A07000HP7,000.27561,336 8
B221A07100HP–7,100.27951,336 8
B221A07145HPB222A07145HP7,145.28131,336 8
B221A07200HP–7,200.28351,336 8
B221A07300HP–7,300.28741,436 8
B221A07400HP–7,400.29131,436 8
B221A07500HPB222A07500HP7,500.29531,436 8
B221A07541HPB222A07541HP7,541.29691,436 8
B221A07600HP–7,600.29921,436 8
B221A07700HP–7,700.30311,436 8
B221A07800HPB222A07800HP7,800.30711,536 8
B221A07900HP–7,900.31101,536 8
B221A07938HPB222A07938HP7,938.31251,536 8
B221A08000HPB222A08000HP8,000.31501,536 8
B221A08100HP–8100.31891540 10
B221A08200HPB222A08200HP, 8,200.3228, 1,540 10
B221A08300HP–8,300.32681,640 10
B221A08334HPB222A08334HP8,334.32811,640 10
B221A08400HP–8,400.33071,640 10
B221A08433HPB222A08433HP8,433.33201,640 10
B221A08500HPB222A08500HP8,500.33461,640 10
B221A08600HP–8,600.33861,640 10
B221A08700HP–8700.34251640 10
B221A08733HPB222A08733HP, 8,733.3438, 1,640 10
