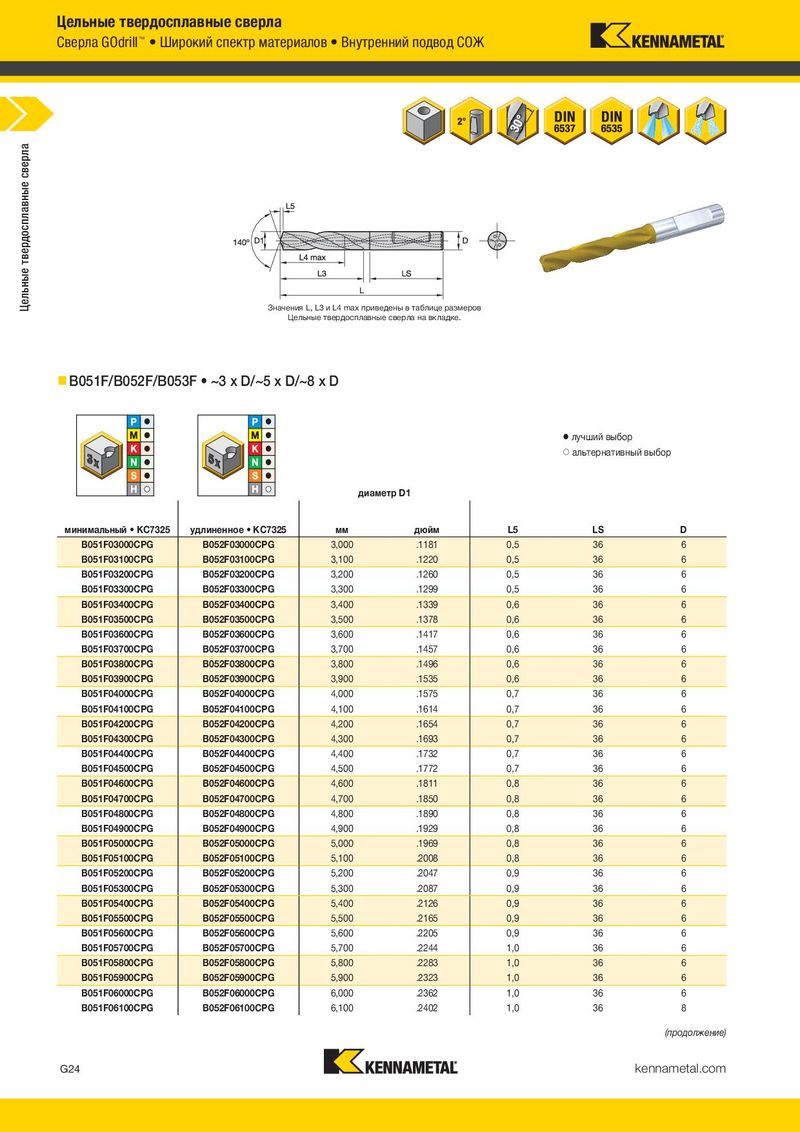

(B051F/B052F/B053F • ~3 x D/~5 x D/~8 x D — продолжение)
Значения L, L3 и L4 max приведены в таблице размеров Цельные твердосплавные сверла на вкладке.
B051F/B052F/B053F • ~3 x D/~5 x D/~8 x D
лучший выбор альтернативный выбор
диаметр D1
| минимальный • KC7325 | удлиненное • KC7325 | мм | дюйм | L5 | LS | D |
| B051F03000CPG | B052F03000CPG | 3,000 | .1181 | 0,5 | 36 | 6 |
| B051F03100CPG | B052F03100CPG | 3,100 | .1220 | 0,5 | 36 | 6 |
| B051F03200CPG | B052F03200CPG | 3,200 | .1260 | 0,5 | 36 | 6 |
| B051F03300CPG | B052F03300CPG | 3,300 | .1299 | 0,5 | 36 | 6 |
| B051F03400CPG | B052F03400CPG | 3,400 | .1339 | 0,6 | 36 | 6 |
| B051F03500CPG | B052F03500CPG | 3,500 | .1378 | 0,6 | 36 | 6 |
| B051F03600CPG | B052F03600CPG | 3,600 | .1417 | 0,6 | 36 | 6 |
| B051F03700CPG | B052F03700CPG | 3,700 | .1457 | 0,6 | 36 | 6 |
| B051F03800CPG | B052F03800CPG | 3,800 | .1496 | 0,6 | 36 | 6 |
| B051F03900CPG | B052F03900CPG | 3,900 | .1535 | 0,6 | 36 | 6 |
| B051F04000CPG | B052F04000CPG | 4,000 | .1575 | 0,7 | 36 | 6 |
| B051F04100CPG | B052F04100CPG | 4,100 | .1614 | 0,7 | 36 | 6 |
| B051F04200CPG | B052F04200CPG | 4,200 | .1654 | 0,7 | 36 | 6 |
| B051F04300CPG | B052F04300CPG | 4,300 | .1693 | 0,7 | 36 | 6 |
| B051F04400CPG | B052F04400CPG | 4,400 | .1732 | 0,7 | 36 | 6 |
| B051F04500CPG | B052F04500CPG | 4,500 | .1772 | 0,7 | 36 | 6 |
| B051F04600CPG | B052F04600CPG | 4,600 | .1811 | 0,8 | 36 | 6 |
| B051F04700CPG | B052F04700CPG | 4,700 | .1850 | 0,8 | 36 | 6 |
| B051F04800CPG | B052F04800CPG | 4,800 | .1890 | 0,8 | 36 | 6 |
| B051F04900CPG | B052F04900CPG | 4,900 | .1929 | 0,8 | 36 | 6 |
| B051F05000CPG | B052F05000CPG | 5,000 | .1969 | 0,8 | 36 | 6 |
| B051F05100CPG | B052F05100CPG | 5,100 | .2008 | 0,8 | 36 | 6 |
| B051F05200CPG | B052F05200CPG | 5,200 | .2047 | 0,9 | 36 | 6 |
| B051F05300CPG | B052F05300CPG | 5,300 | .2087 | 0,9 | 36 | 6 |
| B051F05400CPG | B052F05400CPG | 5,400 | .2126 | 0,9 | 36 | 6 |
| B051F05500CPG | B052F05500CPG | 5,500 | .2165 | 0,9 | 36 | 6 |
| B051F05600CPG | B052F05600CPG | 5,600 | .2205 | 0,9 | 36 | 6 |
| B051F05700CPG | B052F05700CPG | 5,700 | .2244 | 1,0 | 36 | 6 |
| B051F05800CPG | B052F05800CPG | 5,800 | .2283 | 1,0 | 36 | 6 |
| B051F05900CPG | B052F05900CPG | 5,900 | .2323 | 1,0 | 36 | 6 |
| B051F06000CPG | B052F06000CPG | 6,000 | .2362 | 1,0 | 36 | 6 |
| B051F06100CPG | B052F06100CPG | 6,100 | .2402 | 1,0 | 36 | 8 |
лучший выбор альтернативный выбор диаметр D1
| минимальный • KC7325 | удлиненное • KC7325 | мм | дюйм | L5 | LS | D |
| B051F06200CPG | B052F06200CPG | 6,200 | .2441 | 1,0 | 36 | 8 |
| B051F06300CPG | B052F06300CPG | 6,300 | .2480 | 1,1 | 36 | 8 |
| B051F06400CPG | B052F06400CPG | 6,400 | .2520 | 1,1 | 36 | 8 |
| B051F06500CPG | B052F06500CPG | 6,500 | .2559 | 1,1 | 36 | 8 |
| B051F06600CPG | B052F06600CPG | 6,600 | .2598 | 1,1 | 36 | 8 |
| B051F06700CPG | B052F06700CPG | 6,700 | .2638 | 1,1 | 36 | 8 |
| B051F06800CPG | B052F06800CPG | 6,800 | .2677 | 1,1 | 36 | 8 |
| B051F06900CPG | B052F06900CPG | 6,900 | .2717 | 1,2 | 36 | 8 |
| B051F07000CPG | B052F07000CPG | 7,000 | .2756 | 1,2 | 36 | 8 |
| B051F07100CPG | B052F07100CPG | 7,100 | .2795 | 1,2 | 36 | 8 |
| B051F07200CPG | B052F07200CPG | 7,200 | .2835 | 1,2 | 36 | 8 |
| B051F07300CPG | B052F07300CPG | 7,300 | .2874 | 1,2 | 36 | 8 |
| B051F07400CPG | B052F07400CPG | 7,400 | .2913 | 1,3 | 36 | 8 |
| B051F07500CPG | B052F07500CPG | 7,500 | .2953 | 1,3 | 36 | 8 |
| B051F07600CPG | B052F07600CPG | 7,600 | .2992 | 1,3 | 36 | 8 |
| B051F07700CPG | B052F07700CPG | 7,700 | .3031 | 1,3 | 36 | 8 |
| B051F07800CPG | B052F07800CPG | 7,800 | .3071 | 1,3 | 36 | 8 |
| B051F07900CPG | B052F07900CPG | 7,900 | .3110 | 1,3 | 36 | 8 |
| B051F08000CPG | B052F08000CPG | 8,000 | .3150 | 1,4 | 36 | 8 |
| B051F08100CPG | B052F08100CPG | 8,100 | .3189 | 1,4 | 40 | 10 |
| B051F08200CPG | B052F08200CPG | 8,200 | .3228 | 1,4 | 40 | 10 |
| B051F08300CPG | B052F08300CPG | 8,300 | .3268 | 1,4 | 40 | 10 |
| B051F08400CPG | B052F08400CPG | 8,400 | .3307 | 1,4 | 40 | 10 |
| B051F08500CPG | B052F08500CPG | 8,500 | .3346 | 1,4 | 40 | 10 |
| B051F08600CPG | B052F08600CPG | 8,600 | .3386 | 1,5 | 40 | 10 |
| B051F08700CPG | B052F08700CPG | 8,700 | .3425 | 1,5 | 40 | 10 |
| B051F08800CPG | B052F08800CPG | 8,800 | .3465 | 1,5 | 40 | 10 |
| B051F08900CPG | B052F08900CPG | 8,900 | .3504 | 1,5 | 40 | 10 |
| B051F09000CPG | B052F09000CPG | 9,000 | .3543 | 1,5 | 40 | 10 |
| B051F09100CPG | B052F09100CPG | 9,100 | .3583 | 1,5 | 40 | 10 |
| B051F09200CPG | B052F09200CPG | 9,200 | .3622 | 1,6 | 40 | 10 |
| B051F09300CPG | B052F09300CPG | 9,300 | .3661 | 1,6 | 40 | 10 |
| B051F09400CPG | B052F09400CPG | 9,400 | .3701 | 1,6 | 40 | 10 |
| B051F09500CPG | B052F09500CPG | 9,500 | .3740 | 1,6 | 40 | 10 |
| B051F09600CPG | B052F09600CPG | 9,600 | .3780 | 1,6 | 40 | 10 |
| B051F09700CPG | B052F09700CPG | 9,700 | .3819 | 1,7 | 40 | 10 |
| B051F09800CPG | B052F09800CPG | 9,800 | .3858 | 1,7 | 40 | 10 |
| B051F09900CPG | B052F09900CPG | 9,900 | .3898 | 1,7 | 40 | 10 |
| B051F10000CPG | B052F10000CPG | 10,000 | .3937 | 1,7 | 40 | 10 |
| B051F10100CPG | B052F10100CPG | 10,100 | .3976 | 1,7 | 45 | 12 |
| B051F10200CPG | B052F10200CPG | 10,200 | .4016 | 1,7 | 45 | 12 |
| B051F10300CPG | B052F10300CPG | 10,300 | .4055 | 1,8 | 45 | 12 |
| B051F10400CPG | B052F10400CPG | 10,400 | .4094 | 1,8 | 45 | 12 |
| B051F10500CPG | B052F10500CPG | 10,500 | .4134 | 1,8 | 45 | 12 |
| B051F10600CPG | B052F10600CPG | 10,600 | .4173 | 1,8 | 45 | 12 |
| B051F10700CPG | B052F10700CPG | 10,700 | .4213 | 1,8 | 45 | 12 |
| B051F10800CPG | B052F10800CPG | 10,800 | .4252 | 1,8 | 45 | 12 |
| B051F10900CPG | B052F10900CPG | 10,900 | .4291 | 1,9 | 45 | 12 |
| B051F11000CPG | B052F11000CPG | 11,000 | .4331 | 1,9 | 45 | 12 |
| B051F11100CPG | B052F11100CPG | 11,100 | .4370 | 1,9 | 45 | 12 |
| B051F11200CPG | B052F11200CPG | 11,200 | .4409 | 1,9 | 45 | 12 |
| B051F11300CPG | B052F11300CPG | 11,300 | .4449 | 1,9 | 45 | 12 |
| минимальный • KC7325 | удлиненное • KC7325 | мм | дюйм | L5 | LS | D |
| B051F03000CPG | B052F03000CPG | 3,000 | .1181 | 0,5 | 36 | 6 |
| B051F03100CPG | B052F03100CPG | 3,100 | .1220 | 0,5 | 36 | 6 |
| B051F03200CPG | B052F03200CPG | 3,200 | .1260 | 0,5 | 36 | 6 |
| B051F03300CPG | B052F03300CPG | 3,300 | .1299 | 0,5 | 36 | 6 |
| B051F03400CPG | B052F03400CPG | 3,400 | .1339 | 0,6 | 36 | 6 |
| B051F03500CPG | B052F03500CPG | 3,500 | .1378 | 0,6 | 36 | 6 |
| B051F03600CPG | B052F03600CPG | 3,600 | .1417 | 0,6 | 36 | 6 |
| B051F03700CPG | B052F03700CPG | 3,700 | .1457 | 0,6 | 36 | 6 |
| B051F03800CPG | B052F03800CPG | 3,800 | .1496 | 0,6 | 36 | 6 |
| B051F03900CPG | B052F03900CPG | 3,900 | .1535 | 0,6 | 36 | 6 |
| B051F04000CPG | B052F04000CPG | 4,000 | .1575 | 0,7 | 36 | 6 |
| B051F04100CPG | B052F04100CPG | 4,100 | .1614 | 0,7 | 36 | 6 |
| B051F04200CPG | B052F04200CPG | 4,200 | .1654 | 0,7 | 36 | 6 |
| B051F04300CPG | B052F04300CPG | 4,300 | .1693 | 0,7 | 36 | 6 |
| B051F04400CPG | B052F04400CPG | 4,400 | .1732 | 0,7 | 36 | 6 |
| B051F04500CPG | B052F04500CPG | 4,500 | .1772 | 0,7 | 36 | 6 |
| B051F04600CPG | B052F04600CPG | 4,600 | .1811 | 0,8 | 36 | 6 |
| B051F04700CPG | B052F04700CPG | 4,700 | .1850 | 0,8 | 36 | 6 |
| B051F04800CPG | B052F04800CPG | 4,800 | .1890 | 0,8 | 36 | 6 |
| B051F04900CPG | B052F04900CPG | 4,900 | .1929 | 0,8 | 36 | 6 |
| B051F05000CPG | B052F05000CPG | 5,000 | .1969 | 0,8 | 36 | 6 |
| B051F05100CPG | B052F05100CPG | 5,100 | .2008 | 0,8 | 36 | 6 |
| B051F05200CPG | B052F05200CPG | 5,200 | .2047 | 0,9 | 36 | 6 |
| B051F05300CPG | B052F05300CPG | 5,300 | .2087 | 0,9 | 36 | 6 |
| B051F05400CPG | B052F05400CPG | 5,400 | .2126 | 0,9 | 36 | 6 |
| B051F05500CPG | B052F05500CPG | 5,500 | .2165 | 0,9 | 36 | 6 |
| B051F05600CPG | B052F05600CPG | 5,600 | .2205 | 0,9 | 36 | 6 |
| B051F05700CPG | B052F05700CPG | 5,700 | .2244 | 1,0 | 36 | 6 |
| B051F05800CPG | B052F05800CPG | 5,800 | .2283 | 1,0 | 36 | 6 |
| B051F05900CPG | B052F05900CPG | 5,900 | .2323 | 1,0 | 36 | 6 |
| B051F06000CPG | B052F06000CPG | 6,000 | .2362 | 1,0 | 36 | 6 |
| B051F06100CPG | B052F06100CPG | 6,100 | .2402 | 1,0 | 36 | 8 |
