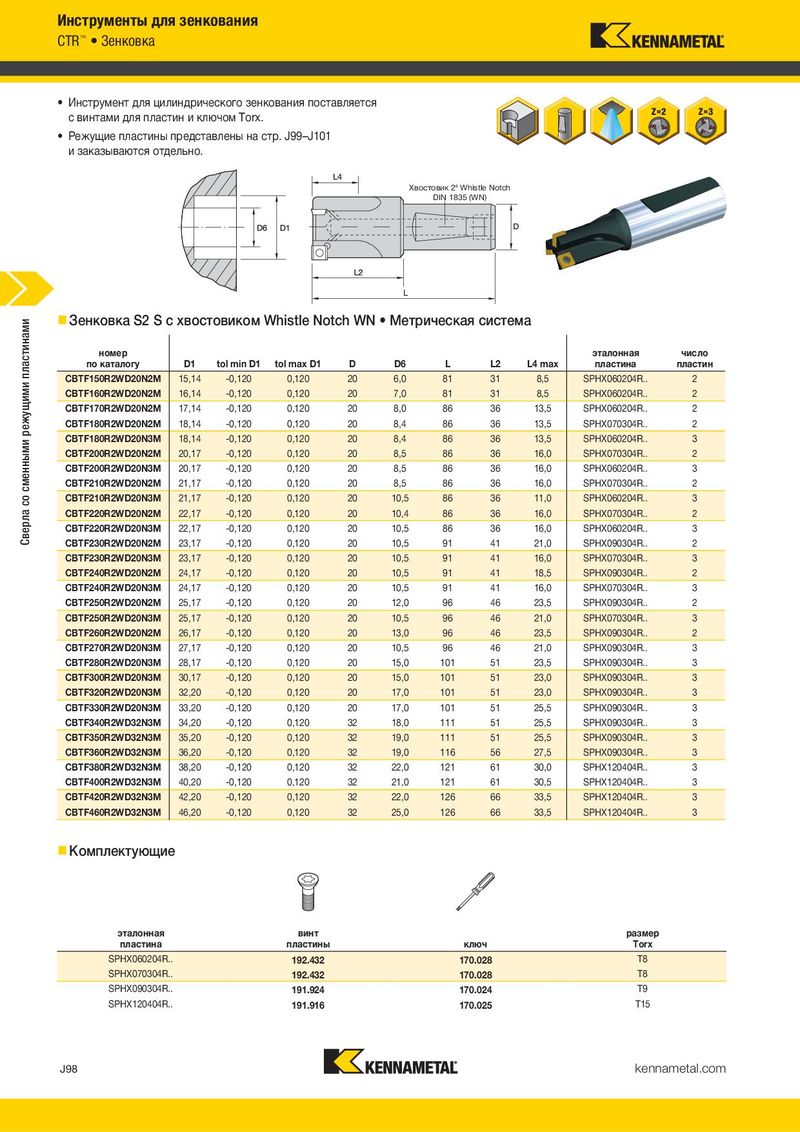

Основной каталог Kennametal вращающиеся инструменты 2018 - страница 422
Навигация
Каталог Kennametal инновации 2021.1
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024
Оптимальный выбор Kennametal 2025 - 2026
Пластины с геометрией FV для токарной обработки Kennametal 2023
Инструменты для зенкования Сверла со сменными режущими пластинами
CTR™ Зенковка Зенковка S2 S Пластины для сверл HTS-C
- Инструмент для цилиндрического зенкования поставляется
- Двусторонняя пластина.
с винтами для пластин и ключом Torx.
- Режущие пластины представлены на стр. J99–J101 лучший выбор и заказываются отдельно. альтернативный выбор
Хвостовик 2º Whistle Notch DIN 1835 (WN)
P M K N S H
Зенковка S2 S с хвостовиком Whistle Notch WN Метрическая система SPHX..R-20
номер эталонная число
по каталогу D1 tol min D1 tol max D1 D D6 L L2 L4 max пластина пластин номер
| CBTF150R2WD20N2M | 15,14 | -0,120 | 0,120 | 20 | 6,0 | 81 | 31 | 8,5 | SPHX060204R.. | 2 | по каталогу | D | D1 | S | R | ° | N2 | N M | ||
| CBTF160R2WD20N2M | 16,14 | -0,120 | 0,120 | 20 | 7,0 | 81 | 31 | 8,5 | SPHX060204R.. | 2 | SPHX060202R20 | 6,35 | 2,85 | 2,38 | 0,20 | 12 | 11 | 7 | – – | – |
| SPHX060204R20 | 6,35 | 2,85 | 2,38 | 0,40 | 12 | 11 | 7 | – | ||||||||||||
| CBTF170R2WD20N2M | 17,14 | -0,120 | 0,120 | 20 | 8,0 | 86 | 36 | 13,5 | SPHX060204R.. | 2 | ||||||||||
| CBTF180R2WD20N2M | 18,14 | -0,120 | 0,120 | 20 | 8,4 | 86 | 36 | 13,5 | SPHX070304R.. | 2 | SPHX060206R20 | 6,35 | 2,85 | 2,38 | 0,60 | 12 | 11 | 7 | – – | – |
| CBTF180R2WD20N3M | 18,14 | -0,120 | 0,120 | 20 | 8,4 | 86 | 36 | 13,5 | SPHX060204R.. | 3 | SPHX060208R20 | 6,35 | 2,85 | 2,38 | 0,80 | 12 | 11 | 7 | – – | – |
| SPHX070302R20 | 7,94 | 2,85 | 3,18 | 0,20 | 12 | 11 | 7 | – – | – | |||||||||||
| CBTF200R2WD20N2M | 20,17 | -0,120 | 0,120 | 20 | 8,5 | 86 | 36 | 16,0 | SPHX070304R.. | 2 | ||||||||||
| CBTF200R2WD20N3M | 20,17 | -0,120 | 0,120 | 20 | 8,5 | 86 | 36 | 16,0 | SPHX060204R.. | 3 | SPHX070304R20 | 7,94 | 2,85 | 3,18 | 0,40 | 12 | 11 | 7 | – | |
| CBTF210R2WD20N2M | 21,17 | -0,120 | 0,120 | 20 | 8,5 | 86 | 36 | 16,0 | SPHX070304R.. | 2 | SPHX070306R20 | 7,94 | 2,85 | 3,18 | 0,60 | 12 | 11 | 7 | – – | – |
| SPHX070308R20 | 7,94 | 2,85 | 3,18 | 0,80 | 12 | 11 | 7 | – – | – | |||||||||||
| CBTF210R2WD20N3M | 21,17 | -0,120 | 0,120 | 20 | 10,5 | 86 | 36 | 11,0 | SPHX060204R.. | 3 | ||||||||||
| CBTF220R2WD20N2M | 22,17 | -0,120 | 0,120 | 20 | 10,4 | 86 | 36 | 16,0 | SPHX070304R.. | 2 | SPHX070310R20 | 7,94 | 2,85 | 3,18 | 1,00 | 12 | 11 | 7 | – – | – |
| CBTF220R2WD20N3M | 22,17 | -0,120 | 0,120 | 20 | 10,5 | 86 | 36 | 16,0 | SPHX060204R.. | 3 | SPHX070312R20 | 7,94 | 2,85 | 3,18 | 1,20 | 12 | 11 | 7 | – – | – |
| SPHX090304R20 | 9,53 | 3,50 | 3,18 | 0,40 | 12 | 11 | 7 | |||||||||||||
| CBTF230R2WD20N2M | 23,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 21,0 | SPHX090304R.. | 2 | ||||||||||
| CBTF230R2WD20N3M | 23,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 16,0 | SPHX070304R.. | 3 | SPHX090308R20 | 9,53 | 3,50 | 3,18 | 0,80 | 12 | 11 | 7 | – – | |
| CBTF240R2WD20N2M | 24,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 18,5 | SPHX090304R.. | 2 | SPHX090310R20 | 9,53 | 3,50 | 3,18 | 1,00 | 12 | 11 | 7 | – – | – |
| SPHX090312R20 | 9,53 | 3,50 | 3,18 | 1,20 | 12 | 11 | 7 | – – | – | |||||||||||
| CBTF240R2WD20N3M | 24,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 16,0 | SPHX070304R.. | 3 | ||||||||||
| CBTF250R2WD20N2M | 25,17 | -0,120 | 0,120 | 20 | 12,0 | 96 | 46 | 23,5 | SPHX090304R.. | 2 | SPHX090316R20 | 9,53 | 3,50 | 3,18 | 1,60 | 12 | 11 | 7 | – – | – |
| CBTF250R2WD20N3M | 25,17 | -0,120 | 0,120 | 20 | 10,5 | 96 | 46 | 21,0 | SPHX070304R.. | 3 | SPHX120404R20 | 12,70 | 4,50 | 4,76 | 0,40 | 12 | 11 | 7 | – | |
| SPHX120408R20 | 12,70 | 4,50 | 4,76 | 0,80 | 12 | 11 | 7 | – – | ||||||||||||
| CBTF260R2WD20N2M | 26,17 | -0,120 | 0,120 | 20 | 13,0 | 96 | 46 | 23,5 | SPHX090304R.. | 2 | ||||||||||
| CBTF270R2WD20N3M | 27,17 | -0,120 | 0,120 | 20 | 10,5 | 96 | 46 | 21,0 | SPHX090304R.. | 3 | SPHX120410R20 | 12,70 | 4,50 | 4,76 | 1,00 | 12 | 11 | 7 | – – | – |
| CBTF280R2WD20N3M | 28,17 | -0,120 | 0,120 | 20 | 15,0 | 101 | 51 | 23,5 | SPHX090304R.. | 3 | SPHX120412R20 | 12,70 | 4,50 | 4,76 | 1,20 | 12 | 11 | 7 | – – | – |
| SPHX120416R20 | 12,70 | 4,50 | 4,76 | 1,60 | 12 | 11 | 7 | – – | – | |||||||||||
| CBTF300R2WD20N3M | 30,17 | -0,120 | 0,120 | 20 | 15,0 | 101 | 51 | 23,0 | SPHX090304R.. | 3 | ||||||||||
| CBTF320R2WD20N3M | 32,20 | -0,120 | 0,120 | 20 | 17,0 | 101 | 51 | 23,0 | SPHX090304R.. | 3 | SPHX120420R20 | 12,70 | 4,50 | 4,76 | 2,00 | 12 | 11 | 7 | – – | – |
| номер по каталогу | D1 | tol min D1 | tol max D1 | D | D6 | L | L2 | L4 max | эталонная пластина | число пластин |
| CBTF150R2WD20N2M | 15,14 | -0,120 | 0,120 | 20 | 6,0 | 81 | 31 | 8,5 | SPHX060204R.. | 2 |
| CBTF160R2WD20N2M | 16,14 | -0,120 | 0,120 | 20 | 7,0 | 81 | 31 | 8,5 | SPHX060204R.. | 2 |
| CBTF170R2WD20N2M | 17,14 | -0,120 | 0,120 | 20 | 8,0 | 86 | 36 | 13,5 | SPHX060204R.. | 2 |
| CBTF180R2WD20N2M | 18,14 | -0,120 | 0,120 | 20 | 8,4 | 86 | 36 | 13,5 | SPHX070304R.. | 2 |
| CBTF180R2WD20N3M | 18,14 | -0,120 | 0,120 | 20 | 8,4 | 86 | 36 | 13,5 | SPHX060204R.. | 3 |
| CBTF200R2WD20N2M | 20,17 | -0,120 | 0,120 | 20 | 8,5 | 86 | 36 | 16,0 | SPHX070304R.. | 2 |
| CBTF200R2WD20N3M | 20,17 | -0,120 | 0,120 | 20 | 8,5 | 86 | 36 | 16,0 | SPHX060204R.. | 3 |
| CBTF210R2WD20N2M | 21,17 | -0,120 | 0,120 | 20 | 8,5 | 86 | 36 | 16,0 | SPHX070304R.. | 2 |
| CBTF210R2WD20N3M | 21,17 | -0,120 | 0,120 | 20 | 10,5 | 86 | 36 | 11,0 | SPHX060204R.. | 3 |
| CBTF220R2WD20N2M | 22,17 | -0,120 | 0,120 | 20 | 10,4 | 86 | 36 | 16,0 | SPHX070304R.. | 2 |
| CBTF220R2WD20N3M | 22,17 | -0,120 | 0,120 | 20 | 10,5 | 86 | 36 | 16,0 | SPHX060204R.. | 3 |
| CBTF230R2WD20N2M | 23,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 21,0 | SPHX090304R.. | 2 |
| CBTF230R2WD20N3M | 23,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 16,0 | SPHX070304R.. | 3 |
| CBTF240R2WD20N2M | 24,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 18,5 | SPHX090304R.. | 2 |
| CBTF240R2WD20N3M | 24,17 | -0,120 | 0,120 | 20 | 10,5 | 91 | 41 | 16,0 | SPHX070304R.. | 3 |
| CBTF250R2WD20N2M | 25,17 | -0,120 | 0,120 | 20 | 12,0 | 96 | 46 | 23,5 | SPHX090304R.. | 2 |
| CBTF250R2WD20N3M | 25,17 | -0,120 | 0,120 | 20 | 10,5 | 96 | 46 | 21,0 | SPHX070304R.. | 3 |
| CBTF260R2WD20N2M | 26,17 | -0,120 | 0,120 | 20 | 13,0 | 96 | 46 | 23,5 | SPHX090304R.. | 2 |
| CBTF270R2WD20N3M | 27,17 | -0,120 | 0,120 | 20 | 10,5 | 96 | 46 | 21,0 | SPHX090304R.. | 3 |
| CBTF280R2WD20N3M | 28,17 | -0,120 | 0,120 | 20 | 15,0 | 101 | 51 | 23,5 | SPHX090304R.. | 3 |
| CBTF300R2WD20N3M | 30,17 | -0,120 | 0,120 | 20 | 15,0 | 101 | 51 | 23,0 | SPHX090304R.. | 3 |
| CBTF320R2WD20N3M | 32,20 | -0,120 | 0,120 | 20 | 17,0 | 101 | 51 | 23,0 | SPHX090304R.. | 3 |
| CBTF330R2WD20N3M | 33,20 | -0,120 | 0,120 | 20 | 17,0 | 101 | 51 | 25,5 | SPHX090304R.. | 3 |
| CBTF340R2WD32N3M | 34,20 | -0,120 | 0,120 | 32 | 18,0 | 111 | 51 | 25,5 | SPHX090304R.. | 3 |
| CBTF350R2WD32N3M | 35,20 | -0,120 | 0,120 | 32 | 19,0 | 111 | 51 | 25,5 | SPHX090304R.. | 3 |
| CBTF360R2WD32N3M | 36,20 | -0,120 | 0,120 | 32 | 19,0 | 116 | 56 | 27,5 | SPHX090304R.. | 3 |
| CBTF380R2WD32N3M | 38,20 | -0,120 | 0,120 | 32 | 22,0 | 121 | 61 | 30,0 | SPHX120404R.. | 3 |
| CBTF400R2WD32N3M | 40,20 | -0,120 | 0,120 | 32 | 21,0 | 121 | 61 | 30,5 | SPHX120404R.. | 3 |
| CBTF420R2WD32N3M | 42,20 | -0,120 | 0,120 | 32 | 22,0 | 126 | 66 | 33,5 | SPHX120404R.. | 3 |
| CBTF460R2WD32N3M | 46,20 | -0,120 | 0,120 | 32 | 25,0 | 126 | 66 | 33,5 | SPHX120404R.. | 3 |
| эталонная пластина | винт пластины | ключ | размер Torx |
| SPHX060204R.. | 192.432 | 170.028 | T8 |
| SPHX070304R.. | 192.432 | 170.028 | T8 |
| SPHX090304R.. | 191.924 | 170.024 | T9 |
| SPHX120404R.. | 191.916 | 170.025 | T15 |
