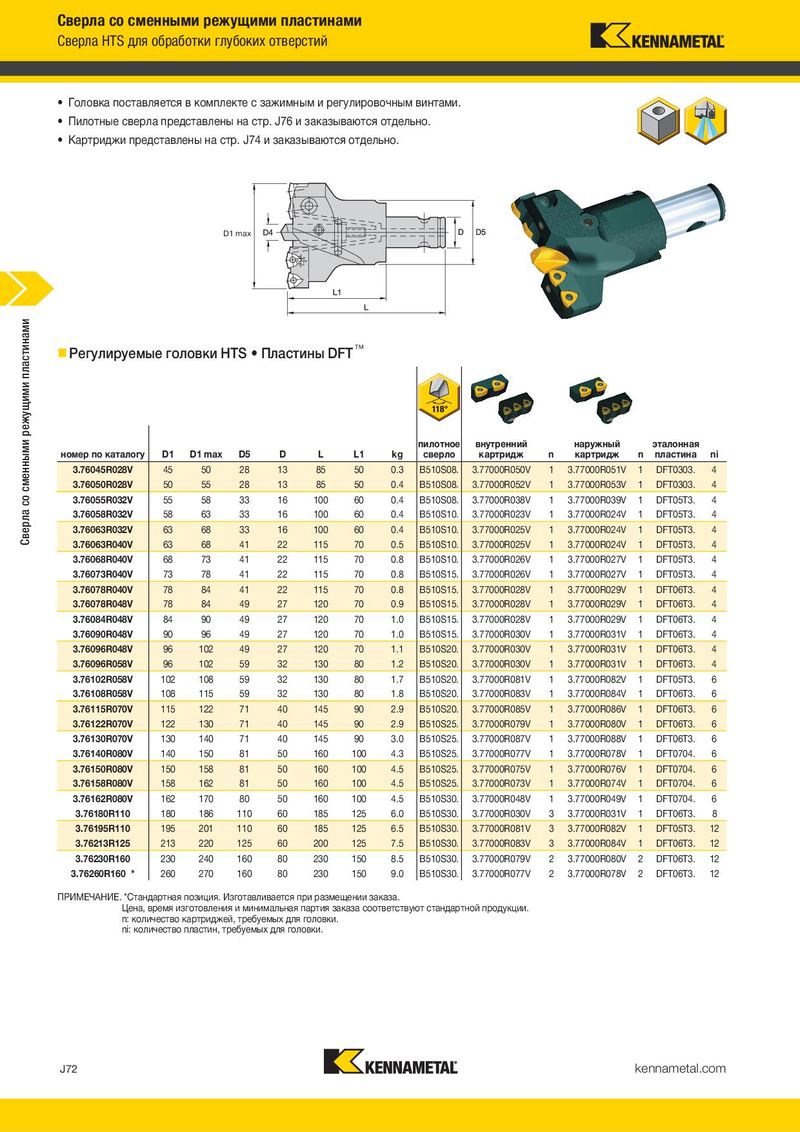

Сверла со сменными режущими пластинами Сверла со сменными пластинами
Сверла HTS для обработки глубоких отверстий Система HTS для сверления глубоких отверстий
- Головка поставляется в комплекте с зажимным и регулировочным винтами.
- Головка поставляется в комплекте с зажимным и регулировочным винтами.
- Пилотные сверла представлены на стр. J76 и заказываются отдельно.
- Пилотные сверла представлены на стр. J76 и заказываются отдельно.
- Картриджи представлены на стр. J74 и заказываются отдельно.
- Картриджи представлены на стр. J74–J75. и заказываются отдельно.
D1 max D1 max
Регулируемые головки HTS Пластины DFT™ Регулируемые головки HTS Пластины DFT™ и SPHX
наружный
пилотное внутренний наружный эталонная пилотное внутренний внутренний эталонная картридж эталонная
| номер по каталогу | D1 | D1 max | D5 | D | L | L1 | kg | сверло | картридж | n | картридж | n | пластина | ni |
| 3.76045R028V | 45 | 50 | 28 | 13 | 85 | 50 | 0.3 | B510S08. | 3.77000R050V | 1 | 3.77000R051V | 1 | DFT0303. | 4 |
| 3.76050R028V | 50 | 55 | 28 | 13 | 85 | 50 | 0.4 | B510S08. | 3.77000R052V | 1 | 3.77000R053V | 1 | DFT0303. | 4 |
| 3.76055R032V | 55 | 58 | 33 | 16 | 100 | 60 | 0.4 | B510S08. | 3.77000R038V | 1 | 3.77000R039V | 1 | DFT05T3. | 4 |
| 3.76058R032V | 58 | 63 | 33 | 16 | 100 | 60 | 0.4 | B510S10. | 3.77000R023V | 1 | 3.77000R024V | 1 | DFT05T3. | 4 |
| 3.76063R032V | 63 | 68 | 33 | 16 | 100 | 60 | 0.4 | B510S10. | 3.77000R025V | 1 | 3.77000R024V | 1 | DFT05T3. | 4 |
| 3.76063R040V | 63 | 68 | 41 | 22 | 115 | 70 | 0.5 | B510S10. | 3.77000R025V | 1 | 3.77000R024V | 1 | DFT05T3. | 4 |
| 3.76068R040V | 68 | 73 | 41 | 22 | 115 | 70 | 0.8 | B510S10. | 3.77000R026V | 1 | 3.77000R027V | 1 | DFT05T3. | 4 |
| 3.76073R040V | 73 | 78 | 41 | 22 | 115 | 70 | 0.8 | B510S15. | 3.77000R026V | 1 | 3.77000R027V | 1 | DFT05T3. | 4 |
| 3.76078R040V | 78 | 84 | 41 | 22 | 115 | 70 | 0.8 | B510S15. | 3.77000R028V | 1 | 3.77000R029V | 1 | DFT06T3. | 4 |
| 3.76078R048V | 78 | 84 | 49 | 27 | 120 | 70 | 0.9 | B510S15. | 3.77000R028V | 1 | 3.77000R029V | 1 | DFT06T3. | 4 |
| 3.76084R048V | 84 | 90 | 49 | 27 | 120 | 70 | 1.0 | B510S15. | 3.77000R028V | 1 | 3.77000R029V | 1 | DFT06T3. | 4 |
| 3.76090R048V | 90 | 96 | 49 | 27 | 120 | 70 | 1.0 | B510S15. | 3.77000R030V | 1 | 3.77000R031V | 1 | DFT06T3. | 4 |
| 3.76096R048V | 96 | 102 | 49 | 27 | 120 | 70 | 1.1 | B510S20. | 3.77000R030V | 1 | 3.77000R031V | 1 | DFT06T3. | 4 |
| 3.76096R058V | 96 | 102 | 59 | 32 | 130 | 80 | 1.2 | B510S20. | 3.77000R030V | 1 | 3.77000R031V | 1 | DFT06T3. | 4 |
| 3.76102R058V | 102 | 108 | 59 | 32 | 130 | 80 | 1.7 | B510S20. | 3.77000R081V | 1 | 3.77000R082V | 1 | DFT05T3. | 6 |
| 3.76108R058V | 108 | 115 | 59 | 32 | 130 | 80 | 1.8 | B510S20. | 3.77000R083V | 1 | 3.77000R084V | 1 | DFT06T3. | 6 |
| 3.76115R070V | 115 | 122 | 71 | 40 | 145 | 90 | 2.9 | B510S20. | 3.77000R085V | 1 | 3.77000R086V | 1 | DFT06T3. | 6 |
| 3.76122R070V | 122 | 130 | 71 | 40 | 145 | 90 | 2.9 | B510S25. | 3.77000R079V | 1 | 3.77000R080V | 1 | DFT06T3. | 6 |
| 3.76130R070V | 130 | 140 | 71 | 40 | 145 | 90 | 3.0 | B510S25. | 3.77000R087V | 1 | 3.77000R088V | 1 | DFT06T3. | 6 |
| 3.76140R080V | 140 | 150 | 81 | 50 | 160 | 100 | 4.3 | B510S25. | 3.77000R077V | 1 | 3.77000R078V | 1 | DFT0704. | 6 |
| 3.76150R080V | 150 | 158 | 81 | 50 | 160 | 100 | 4.5 | B510S25. | 3.77000R075V | 1 | 3.77000R076V | 1 | DFT0704. | 6 |
| 3.76158R080V | 158 | 162 | 81 | 50 | 160 | 100 | 4.5 | B510S25. | 3.77000R073V | 1 | 3.77000R074V | 1 | DFT0704. | 6 |
| 3.76162R080V | 162 | 170 | 80 | 50 | 160 | 100 | 4.5 | B510S30. | 3.77000R048V | 1 | 3.77000R049V | 1 | DFT0704. | 6 |
| 3.76180R110 | 180 | 186 | 110 | 60 | 185 | 125 | 6.0 | B510S30. | 3.77000R030V | 3 | 3.77000R031V | 1 | DFT06T3. | 8 |
| 3.76195R110 | 195 | 201 | 110 | 60 | 185 | 125 | 6.5 | B510S30. | 3.77000R081V | 3 | 3.77000R082V | 1 | DFT05T3. | 12 |
| 3.76213R125 | 213 | 220 | 125 | 60 | 200 | 125 | 7.5 | B510S30. | 3.77000R083V | 3 | 3.77000R084V | 1 | DFT06T3. | 12 |
| 3.76230R160 | 230 | 240 | 160 | 80 | 230 | 150 | 8.5 | B510S30. | 3.77000R079V | 2 | 3.77000R080V | 2 | DFT06T3. | 12 |
| 3.76260R160 * | 260 | 270 | 160 | 80 | 230 | 150 | 9.0 | B510S30. | 3.77000R077V | 2 | 3.77000R078V | 2 | DFT06T3. | 12 |
| номер по каталогу | D1 | D1 max | сверло | картридж | n | картридж 2 | n | пластина | ni | SPHX n | пластина | ni | |
| 3.76045R028V | 45 | 50 | B510S08. | 3.77000R250V | 1 | — | — | DFT0303. | 3 | 3.77000R251V | 1 | SPHX0703. | 1 |
| 3.76050R028V | 50 | 55 | B510S08. | 3.77000R252V | 1 | — | — | DFT0303. | 3 | 3.77000R253V | 1 | SPHX0703. | 1 |
| 3.76055R032V | 55 | 58 | B510S08. | 3.77000R038V | 1 | — | — | DFT05T3. | 3 | 3.77000R239V | 1 | SPHX0903. | 1 |
| 3.76058R032V | 58 | 63 | B510S10. | 3.77000R023V | 1 | — | — | DFT05T3. | 3 | 3.77000R224V | 1 | SPHX0903. | 1 |
| 3.76063R032V | 63 | 68 | B510S10. | 3.77000R025V | 1 | — | — | DFT05T3. | 3 | 3.77000R224V | 1 | SPHX0903. | 1 |
| 3.76063R040V | 63 | 68 | B510S10. | 3.77000R025V | 1 | — | — | DFT05T3. | 3 | 3.77000R224V | 1 | SPHX0903. | 1 |
| 3.76068R040V | 68 | 73 | B510S10. | 3.77000R026V | 1 | — | — | DFT05T3. | 3 | 3.77000R227V | 1 | SPHX0903. | 1 |
| 3.76073R040V | 73 | 78 | B510S15. | 3.77000R026V | 1 | — | — | DFT05T3. | 3 | 3.77000R227V | 1 | SPHX0903. | 1 |
| 3.76078R040V | 78 | 84 | B510S15. | 3.77000R028V | 1 | — | — | DFT06T3. | 3 | 3.77000R229V | 1 | SPHX0903. | 1 |
| 3.76078R048V | 78 | 84 | B510S15. | 3.77000R028V | 1 | — | — | DFT06T3. | 3 | 3.77000R229V | 1 | SPHX0903. | 1 |
| 3.76084R048V | 84 | 90 | B510S15. | 3.77000R228V | 1 | — | — | DFT06T3. | 3 | 3.77000R229V | 1 | SPHX0903. | 1 |
| 3.76090R048V | 90 | 96 | B510S15. | 3.77000R230V | 1 | — | — | DFT06T3. | 3 | 3.77000R231V | 1 | SPHX0903. | 1 |
| 3.76096R048V | 96 | 102 | B510S20. | 3.77000R230V | 1 | — | — | DFT06T3. | 3 | 3.77000R231V | 1 | SPHX0903. | 1 |
| 3.76096R058V | 96 | 102 | B510S20. | 3.77000R230V | 1 | — | — | DFT06T3. | 3 | 3.77000R231V | 1 | SPHX0903. | 1 |
| 3.76102R058V | 102 | 108 | B510S20. | 3.77000R081V | 1 | — | — | DFT05T3. | 5 | 3.77000R282V | 1 | SPHX0903. | 1 |
| 3.76108R058V | 108 | 115 | B510S20. | 3.77000R083V | 1 | — | — | DFT06T3. | 5 | 3.77000R284V | 1 | SPHX1204. | 1 |
| 3.76115R070V | 115 | 122 | B510S20. | 3.77000R085V | 1 | — | — | DFT06T3. | 5 | 3.77000R286V | 1 | SPHX1204. | 1 |
| 3.76122R070V | 122 | 130 | B510S25. | 3.77000R079V | 1 | — | — | DFT06T3. | 5 | 3.77000R280V | 1 | SPHX1204. | 1 |
| 3.76130R070V | 130 | 140 | B510S25. | 3.77000R087V | 1 | — | — | DFT06T3. | 5 | 3.77000R288V | 1 | SPHX1204. | 1 |
| 3.76140R080V | 140 | 150 | B510S25. | 3.77000R077V | 1 | — | — | DFT0704. | 5 | 3.77000R278V | 1 | SPHX1505. | 1 |
| 3.76150R080V | 150 | 158 | B510S25. | 3.77000R075V | 1 | — | — | DFT0704. | 5 | 3.77000R276V | 1 | SPHX1204. | 1 |
| 3.76158R080V | 158 | 162 | B510S25. | 3.77000R073V | 1 | — | — | DFT0704. | 5 | 3.77000R274V | 1 | SPHX1204. | 1 |
| 3.76162R080V | 162 | 170 | B510S30. | 3.77000R248V | 1 | — | — | DFT0704. | 5 | 3.77000R249V | 1 | SPHX1505. | 1 |
| 3.76180R110 | 180 | 186 | B510S30. | 3.77000R230V | 3 | — | — | DFT06T3. | 7 | 3.77000R231V | 1 | SPHX0903. | 1 |
| 3.76195R110 | 195 | 201 | B510S30. | 3.77000R081V | 3 | — | — | DFT05T3. | 11 | 3.77000R282V | 1 | SPHX0903. | 1 |
| 3.76213R125 | 213 | 220 | B510S30. | 3.77000R083V | 3 | — | — | DFT06T3. | 11 | 3.77000R284V | 1 | SPHX1204. | 1 |
| 3.76230R160 | 230 | 240 | B510S30. | 3.77000R079V | 2 | 3.77000R080V | 1 | DFT06T3. | 11 | 3.77000R280V | 1 | SPHX1204. | 1 |
| 3.76260R160 * | 260 | 270 | B510S30. | — 2 | — | 1 | DFT06T3. | 11 | 3.77000R078V | 1 | SPHX1204. | 1 |
| номер по каталогу | D1 | D1 max | D5 | D | L | L1 | kg | пилотное сверло | внутренний картридж | n | наружный картридж | n эталонная пластина | ni |
| 3.76045R028V | 45 | 50 | 28 | 13 | 85 | 50 | 0.3 | B510S08. | 3.77000R050V | 1 | 3.77000R051V | 1 DFT0303. | 4 |
| 3.76050R028V | 50 | 55 | 28 | 13 | 85 | 50 | 0.4 | B510S08. | 3.77000R052V | 1 | 3.77000R053V | 1 DFT0303. | 4 |
| 3.76055R032V | 55 | 58 | 33 | 16 | 100 | 60 | 0.4 | B510S08. | 3.77000R038V | 1 | 3.77000R039V | 1 DFT05T3. | 4 |
| 3.76058R032V | 58 | 63 | 33 | 16 | 100 | 60 | 0.4 | B510S10. | 3.77000R023V | 1 | 3.77000R024V | 1 DFT05T3. | 4 |
| 3.76063R032V | 63 | 68 | 33 | 16 | 100 | 60 | 0.4 | B510S10. | 3.77000R025V | 1 | 3.77000R024V | 1 DFT05T3. | 4 |
| 3.76063R040V | 63 | 68 | 41 | 22 | 115 | 70 | 0.5 | B510S10. | 3.77000R025V | 1 | 3.77000R024V | 1 DFT05T3. | 4 |
| 3.76068R040V | 68 | 73 | 41 | 22 | 115 | 70 | 0.8 | B510S10. | 3.77000R026V | 1 | 3.77000R027V | 1 DFT05T3. | 4 |
| 3.76073R040V | 73 | 78 | 41 | 22 | 115 | 70 | 0.8 | B510S15. | 3.77000R026V | 1 | 3.77000R027V | 1 DFT05T3. | 4 |
| 3.76078R040V | 78 | 84 | 41 | 22 | 115 | 70 | 0.8 | B510S15. | 3.77000R028V | 1 | 3.77000R029V | 1 DFT06T3. | 4 |
| 3.76078R048V | 78 | 84 | 49 | 27 | 120 | 70 | 0.9 | B510S15. | 3.77000R028V | 1 | 3.77000R029V | 1 DFT06T3. | 4 |
| 3.76084R048V | 84 | 90 | 49 | 27 | 120 | 70 | 1.0 | B510S15. | 3.77000R028V | 1 | 3.77000R029V | 1 DFT06T3. | 4 |
| 3.76090R048V | 90 | 96 | 49 | 27 | 120 | 70 | 1.0 | B510S15. | 3.77000R030V | 1 | 3.77000R031V | 1 DFT06T3. | 4 |
| 3.76096R048V | 96 | 102 | 49 | 27 | 120 | 70 | 1.1 | B510S20. | 3.77000R030V | 1 | 3.77000R031V | 1 DFT06T3. | 4 |
| 3.76096R058V | 96 | 102 | 59 | 32 | 130 | 80 | 1.2 | B510S20. | 3.77000R030V | 1 | 3.77000R031V | 1 DFT06T3. | 4 |
| 3.76102R058V | 102 | 108 | 59 | 32 | 130 | 80 | 1.7 | B510S20. | 3.77000R081V | 1 | 3.77000R082V | 1 DFT05T3. | 6 |
| 3.76108R058V | 108 | 115 | 59 | 32 | 130 | 80 | 1.8 | B510S20. | 3.77000R083V | 1 | 3.77000R084V | 1 DFT06T3. | 6 |
| 3.76115R070V | 115 | 122 | 71 | 40 | 145 | 90 | 2.9 | B510S20. | 3.77000R085V | 1 | 3.77000R086V | 1 DFT06T3. | 6 |
| 3.76122R070V | 122 | 130 | 71 | 40 | 145 | 90 | 2.9 | B510S25. | 3.77000R079V | 1 | 3.77000R080V | 1 DFT06T3. | 6 |
| 3.76130R070V | 130 | 140 | 71 | 40 | 145 | 90 | 3.0 | B510S25. | 3.77000R087V | 1 | 3.77000R088V | 1 DFT06T3. | 6 |
| 3.76140R080V | 140 | 150 | 81 | 50 | 160 | 100 | 4.3 | B510S25. | 3.77000R077V | 1 | 3.77000R078V | 1 DFT0704. | 6 |
| 3.76150R080V | 150 | 158 | 81 | 50 | 160 | 100 | 4.5 | B510S25. | 3.77000R075V | 1 | 3.77000R076V | 1 DFT0704. | 6 |
| 3.76158R080V | 158 | 162 | 81 | 50 | 160 | 100 | 4.5 | B510S25. | 3.77000R073V | 1 | 3.77000R074V | 1 DFT0704. | 6 |
| 3.76162R080V | 162 | 170 | 80 | 50 | 160 | 100 | 4.5 | B510S30. | 3.77000R048V | 1 | 3.77000R049V | 1 DFT0704. | 6 |
| 3.76180R110 | 180 | 186 | 110 | 60 | 185 | 125 | 6.0 | B510S30. | 3.77000R030V | 3 | 3.77000R031V | 1 DFT06T3. | 8 |
| 3.76195R110 | 195 | 201 | 110 | 60 | 185 | 125 | 6.5 | B510S30. | 3.77000R081V | 3 | 3.77000R082V | 1 DFT05T3. | 12 |
| 3.76213R125 | 213 | 220 | 125 | 60 | 200 | 125 | 7.5 | B510S30. | 3.77000R083V | 3 | 3.77000R084V | 1 DFT06T3. | 12 |
| 3.76230R160 | 230 | 240 | 160 | 80 | 230 | 150 | 8.5 | B510S30. | 3.77000R079V | 2 | 3.77000R080V | 2 DFT06T3. | 12 |
| 3.76260R160 | 260 | 270 | 160 | 80 | 230 | 150 | 9.0 | B510S30. | 3.77000R077V | 2 | 3.77000R078V | 2 DFT06T3. | 12 |
