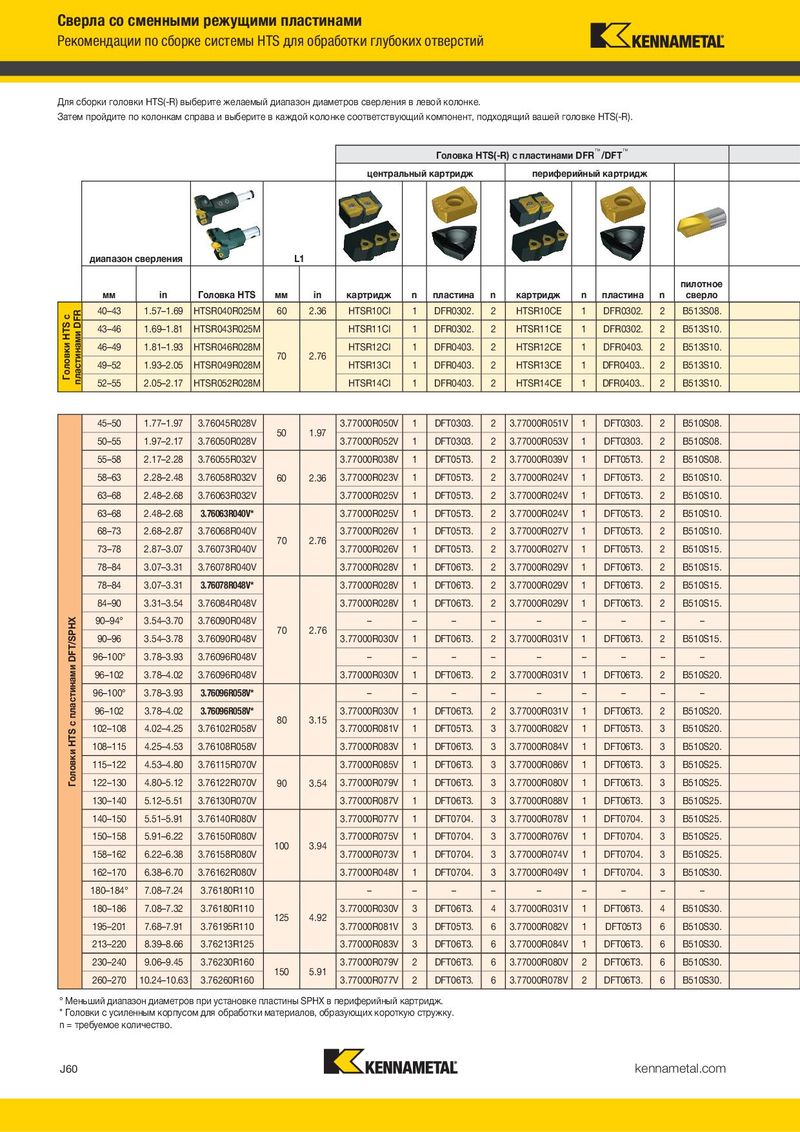

Для сборки головки HTS(-R) выберите желаемый диапазон диаметров сверления в левой колонке. Затем пройдите по колонкам справа и выберите в каждой колонке соответствующий компонент, подходящий вашей головке HTS(-R).
Головка HTS(-R) с пластинами DFR™/DFT™ Головка HTS с пластинами DFT ™ и периферийной пластиной SPHX
центральный картридж периферийный картридж центральный картридж периферийный картридж
диапазон сверления L1 пилотное пилотное
| Головка H | TS(-R | ) с пластинами | DF | R ™/DFT ™ | |||||||||
| централ | ьны | й картридж | перифери | йн | ый картридж | ||||||||
| диапазон | сверления | L | 1 | ||||||||||
| мм | in | Головка HTS | мм | in | картридж | n | пластина | n | картридж | n | пластина | n | пилотное сверло |
| с FR 40–43 | 1.57–1.69 | HTSR040R025M | 60 | 2.36 | HTSR10CI | 1 | DFR0302. | 2 | HTSR10CE | 1 | DFR0302. | 2 | B513S08. |
| HTS и D 43–46 | 1.69–1.81 | HTSR043R025M | HTSR11CI | 1 | DFR0302. | 2 | HTSR11CE | 1 | DFR0302. | 2 | B513S10. | ||
| ки нам 46–49 | 1.81–1.93 | HTSR046R028M | HTSR12CI | 1 | DFR0403. | 2 | HTSR12CE | 1 | DFR0403. | 2 | B513S10. | ||
| олов асти 49–52 | 1.93–2.05 | HTSR049R028M | 70 | 2.76 | HTSR13CI | 1 | DFR0403. | 2 | HTSR13CE | 1 | DFR0403.. | 2 | B513S10. |
| Г пл 52–55 | 2.05–2.17 | HTSR052R028M | HTSR14CI | 1 | DFR0403. | 2 | HTSR14CE | 1 | DFR0403.. | 2 | B513S10. | ||
| 45–50 | 1.77–1.97 | 3.76045R028V | 3.77000R050V | 1 | DFT0303. | 2 | 3.77000R051V | 1 | DFT0303. | 2 | B510S08. | ||
| 50–55 | 1.97–2.17 | 3.76050R028V | 50 | 1.97 | 3.77000R052V | 1 | DFT0303. | 2 | 3.77000R053V | 1 | DFT0303. | 2 | B510S08. |
| 55–58 | 2.17–2.28 | 3.76055R032V | 3.77000R038V | 1 | DFT05T3. | 2 | 3.77000R039V | 1 | DFT05T3. | 2 | B510S08. | ||
| 58–63 | 2.28–2.48 | 3.76058R032V | 60 | 2.36 | 3.77000R023V | 1 | DFT05T3. | 2 | 3.77000R024V | 1 | DFT05T3. | 2 | B510S10. |
| 63–68 | 2.48–2.68 | 3.76063R032V | 3.77000R025V | 1 | DFT05T3. | 2 | 3.77000R024V | 1 | DFT05T3. | 2 | B510S10. | ||
| 63–68 | 2.48–2.68 | 3.76063R040V | 3.77000R025V | 1 | DFT05T3. | 2 | 3.77000R024V | 1 | DFT05T3. | 2 | B510S10. | ||
| 68–73 | 2.68–2.87 | 3.76068R040V | 3.77000R026V | 1 | DFT05T3. | 2 | 3.77000R027V | 1 | DFT05T3. | 2 | B510S10. | ||
| 73–78 | 2.87–3.07 | 3.76073R040V | 70 | 2.76 | 3.77000R026V | 1 | DFT05T3. | 2 | 3.77000R027V | 1 | DFT05T3. | 2 | B510S15. |
| 78–84 | 3.07–3.31 | 3.76078R040V | 3.77000R028V | 1 | DFT06T3. | 2 | 3.77000R029V | 1 | DFT06T3. | 2 | B510S15. | ||
| 78–84 | 3.07–3.31 | 3.76078R048V | 3.77000R028V | 1 | DFT06T3. | 2 | 3.77000R029V | 1 | DFT06T3. | 2 | B510S15. | ||
| 84–90 | 3.31–3.54 | 3.76084R048V | 3.77000R028V | 1 | DFT06T3. | 2 | 3.77000R029V | 1 | DFT06T3. | 2 | B510S15. | ||
| HX 90–94° | 3.54–3.70 | 3.76090R048V | – | – | – | – | – | – | – | – | – | ||
| /SP 90–96 | 3.54–3.78 | 3.76090R048V | 70 | 2.76 | 3.77000R030V | 1 | DFT06T3. | 2 | 3.77000R031V | 1 | DFT06T3. | 2 | B510S15. |
| DFT 96–100° | 3.78–3.93 | 3.76096R048V | – | – | – | – | – | – | – | – | – | ||
| ами 96–102 | 3.78–4.02 | 3.76096R048V | 3.77000R030V | 1 | DFT06T3. | 2 | 3.77000R031V | 1 | DFT06T3. | 2 | B510S20. | ||
| стин 96–100° | 3.78–3.93 | 3.76096R058V | – | – | – | – | – | – | – | – | – | ||
| пла 96–102 | 3.78–4.02 | 3.76096R058V | 3.77000R030V | 1 | DFT06T3. | 2 | 3.77000R031V | 1 | DFT06T3. | 2 | B510S20. | ||
| TS с 102–108 | 4.02–4.25 | 3.76102R058V | 80 | 3.15 | 3.77000R081V | 1 | DFT05T3. | 3 | 3.77000R082V | 1 | DFT05T3. | 3 | B510S20. |
| и H 108–115 | 4.25–4.53 | 3.76108R058V | 3.77000R083V | 1 | DFT06T3. | 3 | 3.77000R084V | 1 | DFT06T3. | 3 | B510S20. | ||
| овк 115–122 | 4.53–4.80 | 3.76115R070V | 3.77000R085V | 1 | DFT06T3. | 3 | 3.77000R086V | 1 | DFT06T3. | 3 | B510S25. | ||
| Гол 122–130 | 4.80–5.12 | 3.76122R070V | 90 | 3.54 | 3.77000R079V | 1 | DFT06T3. | 3 | 3.77000R080V | 1 | DFT06T3. | 3 | B510S25. |
| 130–140 | 5.12–5.51 | 3.76130R070V | 3.77000R087V | 1 | DFT06T3. | 3 | 3.77000R088V | 1 | DFT06T3. | 3 | B510S25. | ||
| 140–150 | 5.51–5.91 | 3.76140R080V | 3.77000R077V | 1 | DFT0704. | 3 | 3.77000R078V | 1 | DFT0704. | 3 | B510S25. | ||
| 150–158 | 5.91–6.22 | 3.76150R080V | 3.77000R075V | 1 | DFT0704. | 3 | 3.77000R076V | 1 | DFT0704. | 3 | B510S25. | ||
| 158–162 | 6.22–6.38 | 3.76158R080V | 100 | 3.94 | 3.77000R073V | 1 | DFT0704. | 3 | 3.77000R074V | 1 | DFT0704. | 3 | B510S25. |
| 162–170 | 6.38–6.70 | 3.76162R080V | 3.77000R048V | 1 | DFT0704. | 3 | 3.77000R049V | 1 | DFT0704. | 3 | B510S30. | ||
| 180–184° | 7.08–7.24 | 3.76180R110 | – | – | – | – | – | – | – | – | – | ||
| 180–186 | 7.08–7.32 | 3.76180R110 | 3.77000R030V | 3 | DFT06T3. | 4 | 3.77000R031V | 1 | DFT06T3. | 4 | B510S30. | ||
| 125 | 4.92 | ||||||||||||
| 195–201 | 7.68–7.91 | 3.76195R110 | 3.77000R081V | 3 | DFT05T3. | 6 | 3.77000R082V | 1 | DFT05T3 | 6 | B510S30. | ||
| 213–220 | 8.39–8.66 | 3.76213R125 | 3.77000R083V | 3 | DFT06T3. | 6 | 3.77000R084V | 1 | DFT06T3. | 6 | B510S30. | ||
| 230–240 | 9.06–9.45 | 3.76230R160 | 3.77000R079V | 2 | DFT06T3. | 6 | 3.77000R080V | 2 | DFT06T3. | 6 | B510S30. | ||
| 260–270 | 10.24–10.63 | 3.76260R160 | 150 | 5.91 | 3.77000R077V | 2 | DFT06T3. | 6 | 3.77000R078V | 2 | DFT06T3. | 6 | B510S30. |
