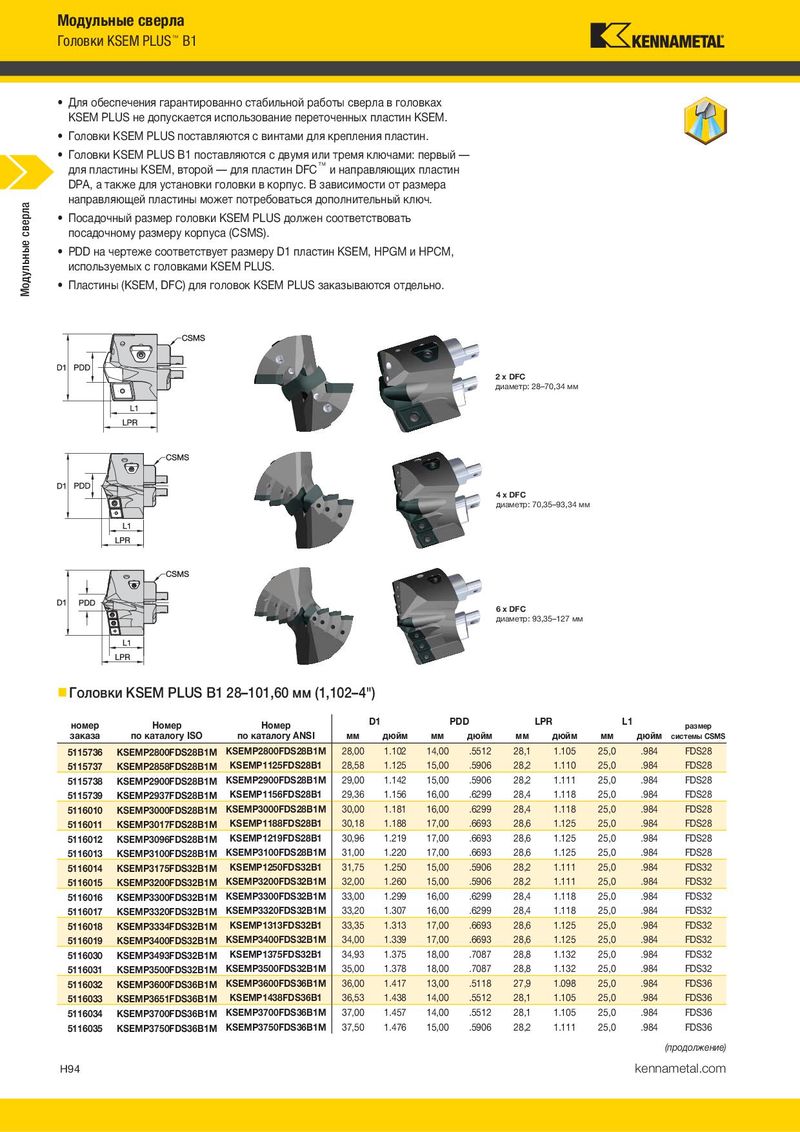

Модульные сверла Модульные сверла Головки KSEM PLUS B1 ™ Головки KSEM PLUS™ B1 • Для обеспечения гарантированно стабильной работы сверла в головках (Головки KSEM PLUS B1 28–101,60 мм (1,102–4") — продолжение) KSEM PLUS не допускается использование переточенных пластин KSEM. • Головки KSEM PLUS поставляются с винтами для крепления пластин. D1 PDD LPR L1 D1 PDD LPR L1 • Головки KSEM PLUS B1 поставляются с двумя или тремя ключами: первый — номер Номер Номер размер заказа по каталогу ISO по каталогу ANSI мм дюйм мм дюйм мм дюйм мм дюйм системы CSMS для пластины KSEM, второй — для пластин DFC™ и направляющих пластин 5116036 KSEMP3800FDS36B1M KSEMP3800FDS36B1M 38,00 1.496 15,00 .5906 28,2 1.111 25,0 .984 FDS36 DPA, а также для установки головки в корпус. В зависимости от размера 5116037 KSEMP3810FDS36B1M KSEMP1500FDS36B1 38,10 1.500 15,00 .5906 28,2 1.111 25,0 .984 FDS36 направляющей пластины может потребоваться дополнительный ключ. Модульные сверла Модульные сверла 5116038 KSEMP3900FDS36B1M KSEMP3900FDS36B1M 39,00 1.535 16,00 .6299 28,4 1.118 25,0 .984 FDS36 • Посадочный размер головки KSEM PLUS должен соответствовать 5116039 KSEMP3920FDS36B1M KSEMP3920FDS36B1M 39,20 1.543 16,00 .6299 28,4 1.118 25,0 .984 FDS36 посадочному размеру корпуса (CSMS). 5116040 KSEMP3970FDS36B1M KSEMP1563FDS36B1 39,70 1.563 17,00 .6693 28,6 1.125 25,0 .984 FDS36 • PDD на чертеже соответствует размеру D1 пластин KSEM, HPGM и HPCM, 5116041 KSEMP4000FDS40B1M KSEMP4000FDS40B1M 40,00 1.575 17,00 .6693 33,8 1.330 30,0 1.181 FDS40 используемых с головками KSEM PLUS. 5116042 KSEMP4100FDS40B1M KSEMP4100FDS40B1M 41,00 1.614 18,00 .7087 34,0 1.337 30,0 1.181 FDS40 5116043 KSEMP4128FDS40B1M KSEMP1625FDS40B1 41,28 1.625 18,00 .7087 34,0 1.337 30,0 1.181 FDS40 • Пластины (KSEM, DFC) для головок KSEM PLUS заказываются отдельно. 5116044 KSEMP4200FDS40B1M KSEMP4200FDS40B1M 42,00 1.654 19,00 .7480 34,1 1.344 30,0 1.181 FDS40 5116045 KSEMP4300FDS40B1M KSEMP4300FDS40B1M 43,00 1.693 20,00 .7874 34,3 1.351 30,0 1.181 FDS40 5116046 KSEMP4400FDS40B1M KSEMP4400FDS40B1M 44,00 1.732 21,00 .8268 34,5 1.358 30,0 1.181 FDS40 5116047 KSEMP4445FDS40B1M KSEMP1750FDS40B1 44,45 1.750 22,00 .8661 34,7 1.365 30,0 1.181 FDS40 5116098 KSEMP4500FDS45B1M KSEMP4500FDS45B1M 45,00 1.772 18,00 .7087 34,0 1.337 30,0 1.181 FDS45 5116099 KSEMP4600FDS45B1M KSEMP4600FDS45B1M 46,00 1.811 19,00 .7480 34,1 1.344 30,0 1.181 FDS45 2 x DFC диаметр: 28–70,34 мм 5116110 KSEMP4700FDS45B1M KSEMP4700FDS45B1M 47,00 1.850 20,00 .7874 34,3 1.351 30,0 1.181 FDS45 5116111 KSEMP4763FDS45B1M KSEMP1875FDS45B1 47,63 1.875 21,00 .8268 34,5 1.358 30,0 1.181 FDS45 5116112 KSEMP4800FDS45B1M KSEMP4800FDS45B1M 48,00 1.890 21,00 .8268 34,5 1.358 30,0 1.181 FDS45 5116113 KSEMP4900FDS45B1M KSEMP4900FDS45B1M 49,00 1.929 22,00 .8661 34,7 1.365 30,0 1.181 FDS45 5116114 KSEMP5000FDS50B1M KSEMP5000FDS50B1M 50,00 1.969 23,00 .9055 40,0 1.577 35,0 1.378 FDS50 5116115 KSEMP5080FDS50B1M KSEMP2000FDS50B1 50,80 2.000 24,00 .9449 40,2 1.584 35,0 1.378 FDS50 5116116 KSEMP5100FDS50B1M KSEMP5100FDS50B1M 51,00 2.008 24,00 .9449 40,2 1.584 35,0 1.378 FDS50 5116117 KSEMP5200FDS50B1M KSEMP5200FDS50B1M 52,00 2.047 25,00 .9843 40,4 1.590 35,0 1.378 FDS50 4 x DFC 5116118 KSEMP5300FDS50B1M KSEMP5300FDS50B1M 53,00 2.087 26,00 1.0236 40,6 1.597 35,0 1.378 FDS50 диаметр: 70,35–93,34 мм 5116119 KSEMP5398FDS50B1M KSEMP2125FDS50B1 53,98 2.125 27,00 1.0630 40,8 1.604 35,0 1.378 FDS50 5116120 KSEMP5400FDS50B1M KSEMP5400FDS50B1M 54,00 2.126 27,00 1.0630 40,8 1.604 35,0 1.378 FDS50 5116121 KSEMP5500FDS50B1M KSEMP5500FDS50B1M 55,00 2.165 28,00 1.1024 40,9 1.611 35,0 1.378 FDS50 5116122 KSEMP5600FDS56B1M KSEMP5600FDS56B1M 56,00 2.205 20,00 .7874 39,5 1.556 35,0 1.378 FDS56 5116123 KSEMP5700FDS56B1M KSEMP5700FDS56B1M 57,00 2.244 21,00 .8268 39,7 1.563 35,0 1.378 FDS56 5116124 KSEMP5715FDS56B1M KSEMP2250FDS56B1 57,15 2.250 21,00 .8268 39,7 1.563 35,0 1.378 FDS56 5116125 KSEMP5800FDS56B1M KSEMP5800FDS56B1M 58,00 2.283 22,00 .8661 39,9 1.570 35,0 1.378 FDS56 6 x DFC диаметр: 93,35–127 мм 5116126 KSEMP5900FDS56B1M KSEMP5900FDS56B1M 59,00 2.323 23,00 .9055 40,0 1.577 35,0 1.378 FDS56 5116127 KSEMP6000FDS56B1M KSEMP6000FDS56B1M 60,00 2.362 24,00 .9449 40,2 1.584 35,0 1.378 FDS56 5116128 KSEMP6033FDS56B1M KSEMP2375FDS56B1 60,33 2.375 24,00 .9449 40,2 1.584 35,0 1.378 FDS56 5116129 KSEMP6100FDS56B1M KSEMP6100FDS56B1M 61,00 2.402 25,00 .9843 40,4 1.590 35,0 1.378 FDS56 5116130 KSEMP6200FDS56B1M KSEMP6200FDS56B1M 62,00 2.441 26,00 1.0236 40,6 1.597 35,0 1.378 FDS56 5116131 KSEMP6300FDS63B1M KSEMP6300FDS63B1M 63,00 2.480 27,00 1.0630 46,0 1.809 40,0 1.575 FDS63  Головки KSEM PLUS B1 28–101,60 мм (1,102–4") 5116132 KSEMP6350FDS63B1M KSEMP2500FDS63B1 63,50 2.500 28,00 1.1024 46,1 1.816 40,0 1.575 FDS63 D1 PDD LPR L1 5116133 KSEMP6400FDS63B1M KSEMP6400FDS63B1M 64,00 2.520 28,00 1.1024 46,1 1.816 40,0 1.575 FDS63 номер Номер Номер D1 PDD LPR L1 размер 5116134 KSEMP6500FDS63B1M KSEMP6500FDS63B1M 65,00 2.559 29,00 1.1417 46,3 1.823 40,0 1.575 FDS63 заказа по каталогу ISO по каталогу ANSI мм дюйм мм дюйм мм дюйм мм дюйм системы CSMS 5116135 KSEMP6600FDS63B1M KSEMP6600FDS63B1M 66,00 2.598 30,00 1.1811 46,5 1.830 40,0 1.575 FDS63 5115736 KSEMP2800FDS28B1M KSEMP2800FDS28B1M 28,00 1.102 14,00 .5512 28,1 1.105 25,0 .984 FDS28 5116136 KSEMP6668FDS63B1M KSEMP2625FDS63B1 66,68 2.625 31,00 1.2205 46,7 1.837 40,0 1.575 FDS63 5115737 KSEMP2858FDS28B1M KSEMP1125FDS28B1 28,58 1.125 15,00 .5906 28,2 1.110 25,0 .984 FDS28 5116137 KSEMP6700FDS63B1M KSEMP6700FDS63B1M 67,00 2.638 31,00 1.2205 46,7 1.837 40,0 1.575 FDS63 5115738 KSEMP2900FDS28B1M KSEMP2900FDS28B1M 29,00 1.142 15,00 .5906 28,2 1.111 25,0 .984 FDS28 5116138 KSEMP6800FDS63B1M KSEMP6800FDS63B1M 68,00 2.677 32,00 1.2598 46,8 1.844 40,0 1.575 FDS63 5115739 KSEMP2937FDS28B1M KSEMP1156FDS28B1 29,36 1.156 16,00 .6299 28,4 1.118 25,0 .984 FDS28 5116139 KSEMP6900FDS63B1M KSEMP6900FDS63B1M 69,00 2.717 33,00 1.2992 47,0 1.851 40,0 1.575 FDS63 5116010 KSEMP3000FDS28B1M KSEMP3000FDS28B1M 30,00 1.181 16,00 .6299 28,4 1.118 25,0 .984 FDS28 5116140 KSEMP6985FDS63B1M KSEMP2750FDS63B1 69,85 2.750 34,00 1.3386 47,2 1.858 40,0 1.575 FDS63 5116011 KSEMP3017FDS28B1M KSEMP1188FDS28B1 30,18 1.188 17,00 .6693 28,6 1.125 25,0 .984 FDS28 5116141 KSEMP7000FDS63B1M KSEMP7000FDS63B1M 70,00 2.756 34,00 1.3386 47,2 1.858 40,0 1.575 FDS63 5116012 KSEMP3096FDS28B1M KSEMP1219FDS28B1 30,96 1.219 17,00 .6693 28,6 1.125 25,0 .984 FDS28 6041937 KSEMP7100FDS71B1M KSEMP7100FDS71B1M 71,00 2.795 26,00 1.0240 47,9 1.885 40,0 1.575 FDS71 5116013 KSEMP3100FDS28B1M KSEMP3100FDS28B1M 31,00 1.220 17,00 .6693 28,6 1.125 25,0 .984 FDS28 6041797 KSEMP7200FDS71B1M KSEMP7200FDS71B1M 72,00 2.835 27,00 1.0630 48,1 1.892 40,0 1.575 FDS71 5116014 KSEMP3175FDS32B1M KSEMP1250FDS32B1 31,75 1.250 15,00 .5906 28,2 1.111 25,0 .984 FDS32 6041938 KSEMP7300FDS71B1M KSEMP7300FDS71B1M 73,00 2.874 28,00 1.1020 48,2 1.899 40,0 1.575 FDS71 5116015 KSEMP3200FDS32B1M KSEMP3200FDS32B1M 32,00 1.260 15,00 .5906 28,2 1.111 25,0 .984 FDS32 6042002 KSEMP7303FDS71B1M KSEMP2875FDS71B1 73,03 2.875 28,00 1.1020 48,2 1.899 40,0 1.575 FDS71 5116016 KSEMP3300FDS32B1M KSEMP3300FDS32B1M 33,00 1.299 16,00 .6299 28,4 1.118 25,0 .984 FDS32 6041798 KSEMP7400FDS71B1M KSEMP7400FDS71B1M 74,00 2.913 29,00 1.1420 48,4 1.906 40,0 1.575 FDS71 5116017 KSEMP3320FDS32B1M KSEMP3320FDS32B1M 33,20 1.307 16,00 .6299 28,4 1.118 25,0 .984 FDS32 6041939 KSEMP7500FDS71B1M KSEMP7500FDS71B1M 75,00 2.953 30,00 1.1810 48,6 1.913 40,0 1.575 FDS71 5116018 KSEMP3334FDS32B1M KSEMP1313FDS32B1 33,35 1.313 17,00 .6693 28,6 1.125 25,0 .984 FDS32 6041799 KSEMP7600FDS71B1M KSEMP7600FDS71B1M 76,00 2.992 31,00 1.2200 48,8 1.919 40,0 1.575 FDS71 5116019 KSEMP3400FDS32B1M KSEMP3400FDS32B1M 34,00 1.339 17,00 .6693 28,6 1.125 25,0 .984 FDS32 5397562 KSEMP7620FDS71B1M KSEMP3000FDS71B1 76,20 3.000 31,00 1.2200 48,8 1.919 48,8 1.919 FDS71 5116030 KSEMP3493FDS32B1M KSEMP1375FDS32B1 34,93 1.375 18,00 .7087 28,8 1.132 25,0 .984 FDS32 6041940 KSEMP7700FDS71B1M KSEMP7700FDS71B1M 77,00 3.031 32,00 1.2600 48,9 1.927 40,0 1.575 FDS71 5116031 KSEMP3500FDS32B1M KSEMP3500FDS32B1M 35,00 1.378 18,00 .7087 28,8 1.132 25,0 .984 FDS32 6041800 KSEMP7800FDS71B1M KSEMP7800FDS71B1M 78,00 3.071 33,00 1.2990 49,1 1.933 40,0 1.575 FDS71 5116032 KSEMP3600FDS36B1M KSEMP3600FDS36B1M 36,00 1.417 13,00 .5118 27,9 1.098 25,0 .984 FDS36 5116033 KSEMP3651FDS36B1M KSEMP1438FDS36B1 36,53 1.438 14,00 .5512 28,1 1.105 25,0 .984 FDS36 (продолжение) 5116034 KSEMP3700FDS36B1M KSEMP3700FDS36B1M 37,00 1.457 14,00 .5512 28,1 1.105 25,0 .984 FDS36 5116035 KSEMP3750FDS36B1M KSEMP3750FDS36B1M 37,50 1.476 15,00 .5906 28,2 1.111 25,0 .984 FDS36 (продолжение) H94 kennametal.com kennametal.com H95
