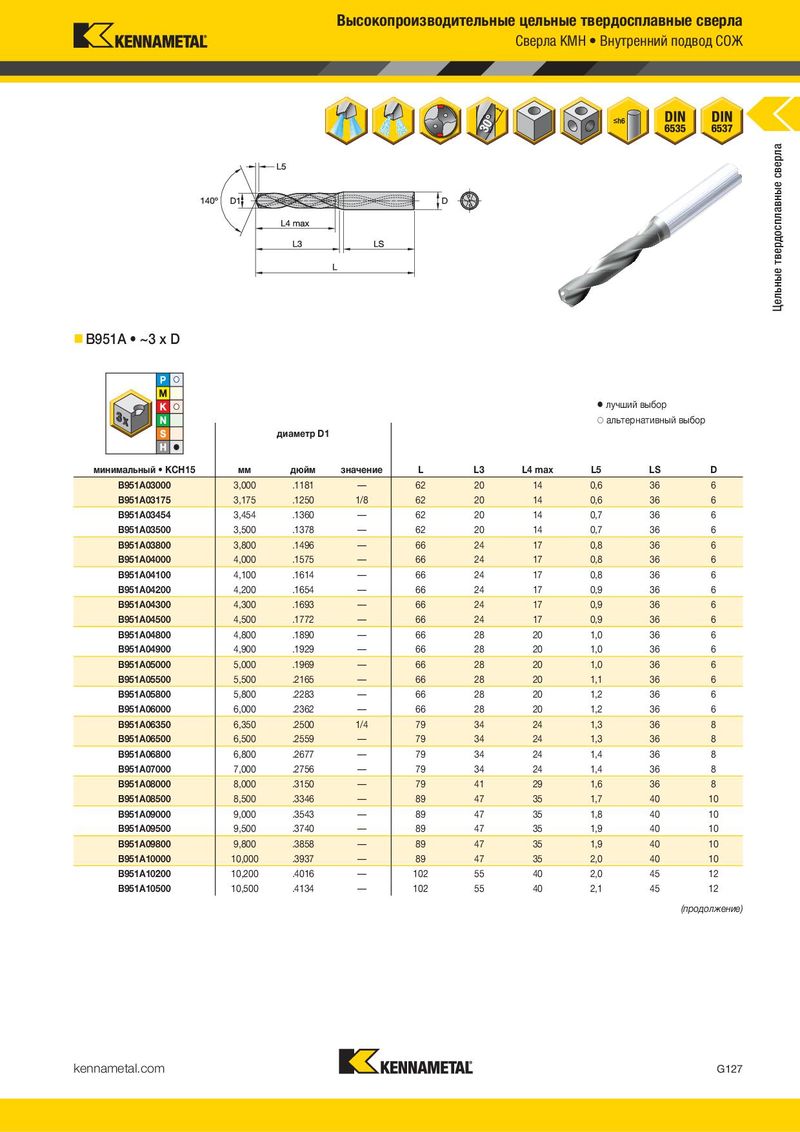

Сверла KMH • Без внутреннего подвода СОЖ Сверла KMH • Внутренний подвод СОЖ
B941A • ~3 x D B951A • ~3 x D
лучший выбор альтернативный выбор лучший выбор альтернативный выбор диаметр D1 диаметр D1
| минимальный • KCH15 | мм | дюйм | L | L3 | L4 max | L5 | LS | D | минимальный • KCH15 | мм | дюйм | значение | L | L3 | L4 max | L5 | LS | D |
| B941Z02500 | 2,500 | .0984 | 50 | 16 | 11 | 0,5 | 28 | 3 | B951A03000 | 3,000 | .1181 | — | 62 | 20 | 14 | 0,6 | 36 | 6 |
| B941A03000 | 3,000 | .1181 | 62 | 20 | 14 | 0,6 | 36 | 6 | B951A03175 | 3,175 | .1250 | 1/8 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| B941A03300 | 3,300 | .1299 | 62 | 20 | 14 | 0,6 | 36 | 6 | B951A03454 | 3,454 | .1360 | — | 62 | 20 | 14 | 0,7 | 36 | 6 |
| B941A03400 | 3,400 | .1339 | 62 | 20 | 14 | 0,6 | 36 | 6 | B951A03500 | 3,500 | .1378 | — | 62 | 20 | 14 | 0,7 | 36 | 6 |
| B941A03500 | 3,500 | .1378 | 62 | 20 | 14 | 0,6 | 36 | 6 | B951A03800 | 3,800 | .1496 | — | 66 | 24 | 17 | 0,8 | 36 | 6 |
| B941A04000 | 4,000 | .1575 | 66 | 24 | 17 | 0,7 | 36 | 6 | B951A04000 | 4,000 | .1575 | — | 66 | 24 | 17 | 0,8 | 36 | 6 |
| B941A04200 | 4,200 | .1654 | 66 | 24 | 17 | 0,8 | 36 | 6 | B951A04100 | 4,100 | .1614 | — | 66 | 24 | 17 | 0,8 | 36 | 6 |
| B941A04300 | 4,300 | .1693 | 66 | 24 | 17 | 0,8 | 36 | 6 | B951A04200 | 4,200 | .1654 | — | 66 | 24 | 17 | 0,9 | 36 | 6 |
| B941A04500 | 4,500 | .1772 | 66 | 24 | 17 | 0,8 | 36 | 6 | B951A04300 | 4,300 | .1693 | — | 66 | 24 | 17 | 0,9 | 36 | 6 |
| B941A05000 | 5,000 | .1969 | 66 | 28 | 20 | 0,9 | 36 | 6 | B951A04500 | 4,500 | .1772 | — | 66 | 24 | 17 | 0,9 | 36 | 6 |
| B941A05100 | 5,100 | .2008 | 66 | 28 | 20 | 0,9 | 36 | 6 | B951A04800 | 4,800 | .1890 | — | 66 | 28 | 20 | 1,0 | 36 | 6 |
| B941A05200 | 5,200 | .2047 | 66 | 28 | 20 | 0,9 | 36 | 6 | B951A04900 | 4,900 | .1929 | — | 66 | 28 | 20 | 1,0 | 36 | 6 |
| B941A05500 | 5,500 | .2165 | 66 | 28 | 20 | 1,0 | 36 | 6 | B951A05000 | 5,000 | .1969 | — | 66 | 28 | 20 | 1,0 | 36 | 6 |
| B941A05600 | 5,600 | .2205 | 66 | 28 | 20 | 1,0 | 36 | 6 | B951A05500 | 5,500 | .2165 | — | 66 | 28 | 20 | 1,1 | 36 | 6 |
| B941A06000 | 6,000 | .2362 | 66 | 28 | 20 | 1,1 | 36 | 6 | B951A05800 | 5,800 | .2283 | — | 66 | 28 | 20 | 1,2 | 36 | 6 |
| B941A06900 | 6,900 | .2717 | 79 | 34 | 24 | 1,3 | 36 | 8 | B951A06000 | 6,000 | .2362 | — | 66 | 28 | 20 | 1,2 | 36 | 6 |
| B941A07000 | 7,000 | .2756 | 79 | 34 | 24 | 1,3 | 36 | 8 | B951A06350 | 6,350 | .2500 | 1/4 | 79 | 34 | 24 | 1,3 | 36 | 8 |
| B941A07100 | 7,100 | .2795 | 79 | 41 | 29 | 1,3 | 36 | 8 | B951A06500 | 6,500 | .2559 | — | 79 | 34 | 24 | 1,3 | 36 | 8 |
| B941A08000 | 8,000 | .3150 | 79 | 41 | 29 | 1,4 | 36 | 8 | B951A06800 | 6,800 | .2677 | — | 79 | 34 | 24 | 1,4 | 36 | 8 |
| B941A08500 | 8,500 | .3346 | 89 | 47 | 35 | 1,5 | 40 | 10 | B951A07000 | 7,000 | .2756 | — | 79 | 34 | 24 | 1,4 | 36 | 8 |
| B941A08600 | 8,600 | .3386 | 89 | 47 | 35 | 1,6 | 40 | 10 | B951A08000 | 8,000 | .3150 | — | 79 | 41 | 29 | 1,6 | 36 | 8 |
| B941A09000 | 9,000 | .3543 | 89 | 47 | 35 | 1,6 | 40 | 10 | B951A08500 | 8,500 | .3346 | — | 89 | 47 | 35 | 1,7 | 40 | 10 |
| диаметр D1 | �лучш �альт | ий выбор ернативный в | ыбор | ||||||
| минимальный • KCH15 | мм | дюйм | значение | L | L3 | L4 max | L5 | LS | D |
| B951A03000 | 3,000 | .1181 | — | 62 | 20 | 14 | 0,6 | 36 | 6 |
| B951A03175 | 3,175 | .1250 | 1/8 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| B951A03454 | 3,454 | .1360 | — | 62 | 20 | 14 | 0,7 | 36 | 6 |
| B951A03500 | 3,500 | .1378 | — | 62 | 20 | 14 | 0,7 | 36 | 6 |
| B951A03800 | 3,800 | .1496 | — | 66 | 24 | 17 | 0,8 | 36 | 6 |
| B951A04000 | 4,000 | .1575 | — | 66 | 24 | 17 | 0,8 | 36 | 6 |
| B951A04100 | 4,100 | .1614 | — | 66 | 24 | 17 | 0,8 | 36 | 6 |
| B951A04200 | 4,200 | .1654 | — | 66 | 24 | 17 | 0,9 | 36 | 6 |
| B951A04300 | 4,300 | .1693 | — | 66 | 24 | 17 | 0,9 | 36 | 6 |
| B951A04500 | 4,500 | .1772 | — | 66 | 24 | 17 | 0,9 | 36 | 6 |
| B951A04800 | 4,800 | .1890 | — | 66 | 28 | 20 | 1,0 | 36 | 6 |
| B951A04900 | 4,900 | .1929 | — | 66 | 28 | 20 | 1,0 | 36 | 6 |
| B951A05000 | 5,000 | .1969 | — | 66 | 28 | 20 | 1,0 | 36 | 6 |
| B951A05500 | 5,500 | .2165 | — | 66 | 28 | 20 | 1,1 | 36 | 6 |
| B951A05800 | 5,800 | .2283 | — | 66 | 28 | 20 | 1,2 | 36 | 6 |
| B951A06000 | 6,000 | .2362 | — | 66 | 28 | 20 | 1,2 | 36 | 6 |
| B951A06350 | 6,350 | .2500 | 1/4 | 79 | 34 | 24 | 1,3 | 36 | 8 |
| B951A06500 | 6,500 | .2559 | — | 79 | 34 | 24 | 1,3 | 36 | 8 |
| B951A06800 | 6,800 | .2677 | — | 79 | 34 | 24 | 1,4 | 36 | 8 |
| B951A07000 | 7,000 | .2756 | — | 79 | 34 | 24 | 1,4 | 36 | 8 |
| B951A08000 | 8,000 | .3150 | — | 79 | 41 | 29 | 1,6 | 36 | 8 |
| B951A08500 | 8,500 | .3346 | — | 89 | 47 | 35 | 1,7 | 40 | 10 |
| B951A09000 | 9,000 | .3543 | — | 89 | 47 | 35 | 1,8 | 40 | 10 |
| B951A09500 | 9,500 | .3740 | — | 89 | 47 | 35 | 1,9 | 40 | 10 |
| B951A09800 | 9,800 | .3858 | — | 89 | 47 | 35 | 1,9 | 40 | 10 |
| B951A10000 | 10,000 | .3937 | — | 89 | 47 | 35 | 2,0 | 40 | 10 |
| B951A10200 | 10,200 | .4016 | — | 102 | 55 | 40 | 2,0 | 45 | 12 |
| B951A10500 | 10,500 | .4134 | — | 102 | 55 | 40 | 2,1 | 45 ( | 12 продолжение) |
