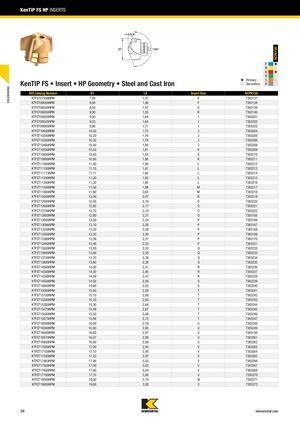

KenTIP FS HP INSERTS
KenTIP FS • Пластина • Геометрия HP • Стали и чугун
| Номер по каталогу ISO | D1 | L5 | Размер пластины | KCPK15A |
|---|---|---|---|---|
| KTFST07938HPM | 7,94 | 1,37 | E | 7383137 |
| KTFST08000HPM | 8,00 | 1,38 | F | 7383138 |
| KTFST08500HPM | 8,50 | 1,47 | G | 7383139 |
| KTFST09000HPM | 9,00 | 1,55 | H | 7383140 |
| KTFST09500HPM | 9,50 | 1,64 | I | 7383201 |
| KTFST09525HPM | 9,53 | 1,64 | I | 7383202 |
| KTFST09900HPM | 9,90 | 1,71 | I | 7383203 |
| KTFST10000HPM | 10,00 | 1,72 | J | 7383204 |
| KTFST10200HPM | 10,20 | 1,76 | J | 7383205 |
| KTFST10300HPM | 10,30 | 1,78 | J | 7383206 |
| KTFST10400HPM | 10,40 | 1,80 | J | 7383208 |
| KTFST10500HPM | 10,50 | 1,81 | K | 7383209 |
| KTFST10600HPM | 10,60 | 1,83 | K | 7383210 |
| KTFST10800HPM | 10,80 | 1,86 | K | 7383211 |
| KTFST11000HPM | 11,00 | 1,90 | L | 7383212 |
| KTFST11100HPM | 11,10 | 1,91 | L | 7383213 |
| KTFST11113HPM | 11,11 | 1,92 | L | 7383214 |
| KTFST11200HPM | 11,20 | 1,93 | L | 7383215 |
| KTFST11300HPM | 11,30 | 1,95 | L | 7383216 |
| KTFST11500HPM | 11,50 | 1,98 | M | 7383217 |
| KTFST11800HPM | 11,80 | 2,04 | M | 7383218 |
| KTFST12000HPM | 12,00 | 2,07 | N | 7383219 |
| KTFST12500HPM | 12,50 | 2,16 | O | 7383220 |
| KTFST12600HPM | 12,60 | 2,17 | O | 7383221 |
| KTFST12700HPM | 12,70 | 2,19 | O | 7383222 |
| KTFST12800HPM | 12,80 | 2,21 | O | 7383165 |
| KTFST13000HPM | 13,00 | 2,24 | P | 7383166 |
| KTFST13096HPM | 13,10 | 2,26 | P | 7383167 |
| KTFST13200HPM | 13,20 | 2,28 | P | 7383168 |
| KTFST13300HPM | 13,30 | 2,30 | P | 7383169 |
| KTFST13380HPM | 13,38 | 2,31 | P | 7383170 |
| KTFST13492HPM | 13,49 | 2,33 | P | 7383231 |
| KTFST13500HPM | 13,50 | 2,33 | Q | 7383232 |
| KTFST13600HPM | 13,60 | 2,35 | Q | 7383233 |
| KTFST13700HPM | 13,70 | 2,36 | Q | 7383234 |
| KTFST13800HPM | 13,80 | 2,38 | Q | 7383235 |
| KTFST14000HPM | 14,00 | 2,41 | R | 7383236 |
| KTFST14200HPM | 14,20 | 2,45 | R | 7383237 |
| KTFST14288HPM | 14,29 | 2,47 | R | 7383238 |
| KTFST14500HPM | 14,50 | 2,50 | S | 7383239 |
| KTFST14600HPM | 14,60 | 2,52 | S | 7383240 |
| KTFST15000HPM | 15,00 | 2,59 | T | 7383241 |
| KTFST15100HPM | 15,10 | 2,60 | T | 7383242 |
| KTFST15200HPM | 15,20 | 2,62 | T | 7383243 |
| KTFST15300HPM | 15,30 | 2,64 | T | 7383244 |
| KTFST15479HPM | 15,48 | 2,67 | T | 7383245 |
| KTFST15500HPM | 15,50 | 2,68 | T | 7383246 |
| KTFST15875HPM | 15,88 | 2,75 | T | 7383247 |
| KTFST16000HPM | 16,00 | 2,76 | U | 7383248 |
| KTFST16500HPM | 16,50 | 2,85 | U | 7383249 |
| KTFST16600HPM | 16,60 | 2,87 | U | 7383150 |
| KTFST16670HPM | 16,67 | 2,88 | U | 7383261 |
| KTFST16800HPM | 16,80 | 2,90 | U | 7383262 |
| KTFST17000HPM | 17,00 | 2,93 | V | 7383263 |
| KTFST17100HPM | 17,10 | 2,95 | V | 7383264 |
| KTFST17200HPM | 17,20 | 2,97 | V | 7383265 |
| KTFST17463HPM | 17,46 | 3,02 | V | 7383266 |
| KTFST17500HPM | 17,50 | 3,02 | V | 7383267 |
| KTFST17600HPM | 17,60 | 3,04 | V | 7383268 |
| KTFST17700HPM | 17,70 | 3,06 | V | 7383270 |
| KTFST18000HPM | 18,00 | 3,10 | W | 7383271 |
| KTFST19000HPM | 19,00 | 3,28 | X | 7383272 |
