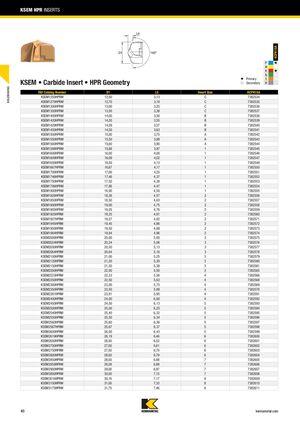

KSEM HPR INSERTS
KSEM • Карбидная пластина • Геометрия HPR
| Номер по каталогу ISO | D1 | L5 | Размер пластины | KCPK15A |
|---|---|---|---|---|
| KSEM1250HPRM | 12,50 | 3,13 | C | 7382534 |
| KSEM1270HPRM | 12,70 | 3,18 | C | 7382535 |
| KSEM1300HPRM | 13,00 | 3,25 | C | 7382536 |
| KSEM1350HPRM | 13,50 | 3,38 | C | 7382537 |
| KSEM1400HPRM | 14,00 | 3,50 | B | 7382538 |
| KSEM1420HPRM | 14,20 | 3,55 | B | 7382539 |
| KSEM1429HPRM | 14,29 | 3,57 | B | 7382540 |
| KSEM1450HPRM | 14,50 | 3,63 | B | 7382541 |
| KSEM1500HPRM | 15,00 | 3,75 | A | 7382542 |
| KSEM1550HPRM | 15,50 | 3,88 | A | 7382543 |
| KSEM1560HPRM | 15,60 | 3,90 | A | 7382544 |
| KSEM1588HPRM | 15,88 | 3,97 | 1 | 7382545 |
| KSEM1600HPRM | 16,00 | 4,00 | 1 | 7382546 |
| KSEM1609HPRM | 16,09 | 4,02 | 1 | 7382547 |
| KSEM1650HPRM | 16,50 | 4,13 | 1 | 7382548 |
| KSEM1667HPRM | 16,67 | 4,17 | 1 | 7382550 |
| KSEM1700HPRM | 17,00 | 4,25 | 1 | 7382551 |
| KSEM1746HPRM | 17,46 | 4,37 | 1 | 7382552 |
| KSEM1750HPRM | 17,50 | 4,38 | 1 | 7382553 |
| KSEM1786HPRM | 17,86 | 4,47 | 1 | 7382554 |
| KSEM1800HPRM | 18,00 | 4,50 | 1 | 7382555 |
| KSEM1826HPRM | 18,26 | 4,57 | 2 | 7382556 |
| KSEM1850HPRM | 18,50 | 4,63 | 2 | 7382557 |
| KSEM1900HPRM | 19,00 | 4,75 | 2 | 7382558 |
| KSEM1905HPRM | 19,05 | 4,76 | 2 | 7382559 |
| KSEM1925HPRM | 19,25 | 4,81 | 2 | 7382560 |
| KSEM1927HPRM | 19,27 | 4,82 | 2 | 7382571 |
| KSEM1945HPRM | 19,45 | 4,86 | 2 | 7382572 |
| KSEM1950HPRM | 19,50 | 4,88 | 2 | 7382573 |
| KSEM1984HPRM | 19,84 | 4,96 | 2 | 7382574 |
| KSEM2000HPRM | 20,00 | 5,00 | 3 | 7382575 |
| KSEM2024HPRM | 20,24 | 5,06 | 3 | 7382576 |
| KSEM2050HPRM | 20,50 | 5,13 | 3 | 7382577 |
| KSEM2064HPRM | 20,64 | 5,16 | 3 | 7382578 |
| KSEM2100HPRM | 21,00 | 5,25 | 3 | 7382579 |
| KSEM2120HPRM | 21,20 | 5,30 | 3 | 7382580 |
| KSEM2150HPRM | 21,50 | 5,38 | 3 | 7382581 |
| KSEM2200HPRM | 22,00 | 5,50 | 3 | 7382565 |
| KSEM2223HPRM | 22,23 | 5,56 | 4 | 7382566 |
| KSEM2250HPRM | 22,50 | 5,63 | 4 | 7382568 |
| KSEM2300HPRM | 23,00 | 5,75 | 4 | 7382569 |
| KSEM2350HPRM | 23,50 | 5,88 | 4 | 7382570 |
| KSEM2381HPRM | 23,81 | 5,95 | 4 | 7382591 |
| KSEM2400HPRM | 24,00 | 6,00 | 4 | 7382592 |
| KSEM2450HPRM | 24,50 | 6,13 | 5 | 7382593 |
| KSEM2500HPRM | 25,00 | 6,25 | 5 | 7382594 |
| KSEM2540HPRM | 25,40 | 6,32 | 5 | 7382595 |
| KSEM2550HPRM | 25,50 | 6,34 | 5 | 7382596 |
| KSEM2560HPRM | 25,60 | 6,36 | 5 | 7382597 |
| KSEM2567HPRM | 25,67 | 6,37 | 5 | 7382598 |
| KSEM2600HPRM | 26,00 | 6,43 | 5 | 7382599 |
| KSEM2619HPRM | 26,19 | 6,46 | 6 | 7382600 |
| KSEM2650HPRM | 26,50 | 6,52 | 6 | 7382601 |
| KSEM2700HPRM | 27,00 | 6,61 | 6 | 7382602 |
| KSEM2750HPRM | 27,50 | 6,70 | 6 | 7382603 |
| KSEM2800HPRM | 28,00 | 6,79 | 6 | 7382604 |
| KSEM2850HPRM | 28,50 | 6,88 | 7 | 7382605 |
| KSEM2858HPRM | 28,58 | 6,89 | 7 | 7382606 |
| KSEM2900HPRM | 29,00 | 6,97 | 7 | 7382607 |
| KSEM3000HPRM | 30,00 | 7,15 | 7 | 7382608 |
| KSEM3016HPRM | 30,16 | 7,17 | 8 | 7382609 |
| KSEM3100HPRM | 31,00 | 7,33 | 8 | 7382610 |
| KSEM3175HPRM | 31,75 | 7,46 | 8 | 7382611 |
