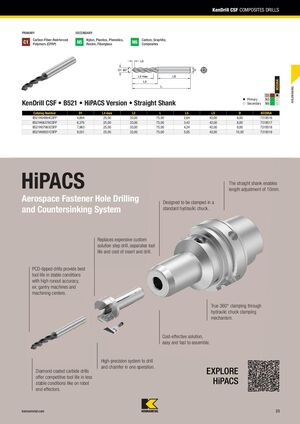

KenDrill CSF COMPOSITES DRILLS PRIMARY SECONDARY Carbon-Fiber-Reinforced Nylon, Plastics, Phenolics, Carbon, Graphite, C1 Polymers (CFRP) N5 Resins, Fiberglass N6 Composites KCC05A HOLEMAKING C1 䢇 䢇 Primary N5 嘷 KenDrill CSF • B521 • HiPACS Version • Straight Shank 嘷 Secondary N6 嘷 Catalog Number D1 L4 max L3 L L5 LS D KCC05A B521H04864CSFP 4,864 25,00 33,00 75,00 2,64 42,00 6,00 7318516 B521H06376CSFP 6,376 25,00 33,00 75,00 3,42 42,00 8,00 7318517 B521H07963CSFP 7,963 25,00 33,00 75,00 4,24 42,00 8,00 7318518 B521H09551CSFP 9,551 25,00 33,00 75,00 5,05 42,00 10,00 7318519 HiPACS The straight shank enables length adjustment of 10mm. Aerospace Fastener Hole Drilling Designed to be clamped in a and Countersinking System standard hydraulic chuck. Replaces expensive custom solution step drill, separates tool life and cost of insert and drill. PCD-tipped drills provide best tool life in stable conditions with high runout accuracy, ex: gantry machines and machining centers. True 360° clamping through hydraulic chuck clamping mechanism. Cost-effective solution, easy and fast to assemble. High-precision system to drill and chamfer in one operation. Diamond coated carbide drills EXPLORE offer competitive tool life in less stable conditions like on robot HiPACS end effectors. kennametal.com 23
