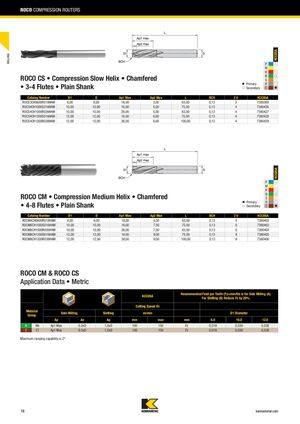

Новинки Kennametal - весна 2026 - страница 18

ROCO COMPRESSION ROUTERS KCC05A MILLING P M K N 嘷 ROCO CS • Compression Slow Helix • Chamfered S 䢇 Primary H • 3-4 Flutes • Plain Shank 嘷 Secondary C 䢇 Catalog Number D1 D Ap1 Max Ap2 Max L BCH ZU KCC05A ROCS3CH0600R018HAM 6,00 6,00 18,00 3,00 63,00 0,13 3 7380369 ROCS4CH1000S016HAM 10,00 10,00 16,00 5,00 75,00 0,13 4 7380426 ROCS4CH1000R026HAM 10,00 10,00 26,00 5,00 83,00 0,13 4 7380427 ROCS4CH1200S016HAM 12,00 12,00 16,00 6,00 75,00 0,13 4 7380428 ROCS4CH1200R038HAM 12,00 12,00 38,00 6,00 100,00 0,13 4 7380429 KCC05A P M K N 嘷 ROCO CM • Compression Medium Helix • Chamfered S 䢇 Primary H • 4-8 Flutes • Plain Shank 嘷 Secondary C 䢇 Catalog Number D1 D Ap1 Max Ap2 Max L BCH ZU KCC05A ROCM4CH0600R018HAM 6,00 6,00 18,00 4,50 63,00 0,13 4 7380402 ROCM6CH1000S016HAM 10,00 10,00 16,00 7,50 75,00 0,13 6 7380403 ROCM6CH1000R026HAM 10,00 10,00 26,00 7,50 83,00 0,13 6 7380404 ROCM8CH1200S016HAM 12,00 12,00 16,00 9,00 75,00 0,13 8 7380405 ROCM8CH1200R038HAM 12,00 12,00 38,00 9,00 100,00 0,13 8 7380406 ROCO CM & ROCO CS Application Data • Metric Recommended Feed per Tooth (Fz=mm/th) is for Side Milling (A). KCC05A For Slotting (B) Reduce Fz by 20%. Cutting Speed Vc Material Side Milling Slotting m/min D1 Diameter Group Ap Ae Ap min max mm 6.0 10.0 12.0 N N6 Ap1 Max 0,5xD 1,0xD 100 150 Fz 0,018 0,030 0,036 C C1 Ap1 Max 0,5xD 1,0xD 100 150 Fz 0,018 0,030 0,036 Maximum ramping capability is 2°. 16 kennametal.com
