Новинки Kennametal - весна 2025 - страница 7

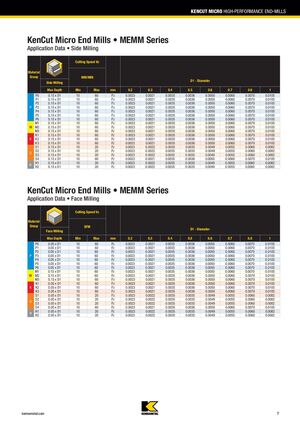

KENCUT MICRO HIGH-PERFORMANCE END-MILLS KenCut Micro End Mills • MEMM Series Application Data • Side Milling Cutting Speed Vc Material Group MM/MIN D1 - Diameter Side Milling Max Depth Min Max mm 0.2 0.3 0.4 0.5 0.6 0.7 0.8 1 P0 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P1 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P2 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P P3 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P4 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P5 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P6 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 M1 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 M M2 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 M3 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 K1 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 K K2 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 K3 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 S1 0.15 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 S2 0.15 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 S S3 0.15 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 S4 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 H1 0.15 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 H H2 0.15 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 KenCut Micro End Mills • MEMM Series Application Data • Face Milling Cutting Speed Vc Material Group SFM D1 - Diameter Face Milling Max Depth Min Max mm 0.2 0.3 0.4 0.5 0.6 0.7 0.8 1 P0 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P1 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P2 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P P3 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P4 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P5 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 P6 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 M1 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 M M2 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 M3 0.15 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 K1 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 K K2 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 K3 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 S1 0.05 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 S2 0.05 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 S S3 0.05 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 S4 0.05 x D1 10 60 Fz 0.0023 0.0021 0.0035 0.0036 0.0050 0.0060 0.0070 0.0105 H1 0.05 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 H H2 0.05 x D1 10 20 Fz 0.0023 0.0022 0.0035 0.0035 0.0049 0.0055 0.0060 0.0082 kennametal.com 7
