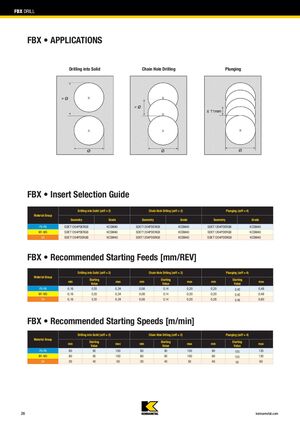

FBX DRILL FBX • APPLICATIONS Drilling into Solid Chain Hole Drilling Plunging FBX • Insert Selection Guide Drilling into Solid (zeff = 2) Chain Hole Driling (zeff = 2) Plunging (zeff = 4) Material Group Geometry Grade Geometry Grade Geometry Grade P5-P6 SDET1204PDERGB KCSM40 SDET1204PDERGB KCSM40 SDET1204PDERGB KCSM40 M1-M3 SDET1204PDERGB KCSM40 SDET1204PDERGB KCSM40 SDET1204PDERGB KCSM40 S4 SDET1204PDSRGB KCSM40 SDET1204PDSRGB KCSM40 SDET1204PDSRGB KCSM40 FBX • Recommended Starting Feeds [mm/REV] Drilling into Solid (zeff = 2) Chain Hole Driling (zeff = 2) Plunging (zeff = 4) Material Group Starting Starting Starting min max min max min max Value Value Value P5-P6 0,16 0,20 0,24 0,08 0,14 0,20 0,20 0,40 0,48 M1-M3 0,16 0,20 0,24 0,08 0,14 0,20 0,20 0,40 0,48 S4 0,16 0,20 0,24 0,08 0,14 0,20 0,28 0,48 0,60 FBX • Recommended Starting Speeds [m/min] Drilling into Solid (zeff = 2) Chain Hole Driling (zeff = 2) Plunging (zeff = 4) Material Group Starting Starting Starting min max min max min max Value Value Value P5-P6 80 90 100 80 90 100 90 105 120 M1-M3 80 90 100 80 90 100 90 105 120 S4 30 40 50 30 40 50 40 50 60 26 kennametal.com
