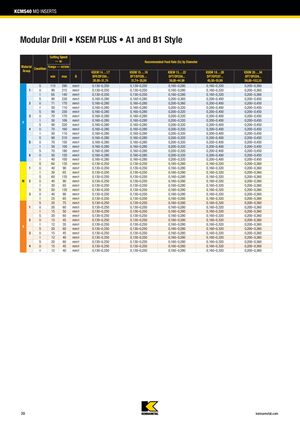

ПЛАСТИНЫ KCMS40 MD

Модульное сверло • KSEM PLUS • Стили A1 и B1

Группа материала Условие Диапазон скорости резания Vc Рекомендуемые значения подачи (fz) по диаметру
мин м/мин макс м/мин KSEM 14….17 DFR/DFC04... Ø 28.00–31.74 KSEM 15….18 DFT/DFC05… Ø 31.74–35.99 KSEM 13….22 DFT/DFC06... Ø 36.00–44.99 KSEM 18….28 DFT/DFC07... Ø 45.00–55.99 KSEM 20….34 DFT/DFC09... Ø 56.00–102.35
P 1 S 115 290 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 90 215 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 65 140 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
P 2 S 90 230 0.160–0.280 0.160–0.280 0.200–0.360 0.200–0.400 0.200–0.450
U 71 170 0.160–0.280 0.160–0.280 0.200–0.360 0.200–0.400 0.200–0.450
I 50 110 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
P 3 S 90 230 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
U 70 170 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
I 50 106 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
P 4 S 90 220 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
U 70 160 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
I 50 110 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
P 5 S 90 210 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
U 70 150 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
I 50 100 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
P 6 S 70 180 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
U 50 120 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
I 40 100 0.160–0.280 0.160–0.280 0.200–0.320 0.200–0.400 0.200–0.450
M 1 S 60 135 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 40 90 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 30 65 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
M 2 S 60 135 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 40 90 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 30 65 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
M 3 S 50 135 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 40 90 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 25 65 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
S 1 S 25 75 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 20 60 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 15 50 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
S 2 S 20 60 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 15 45 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 12 35 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
S 3 S 20 60 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 15 45 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 12 40 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
S 4 S 20 60 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
U 15 45 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
I 12 40 0.130–0.250 0.130–0.250 0.160–0.280 0.160–0.320 0.200–0.360
