KenDrill HPR ТВЕРДОСПЛАВНЫЕ СПИРАЛИ

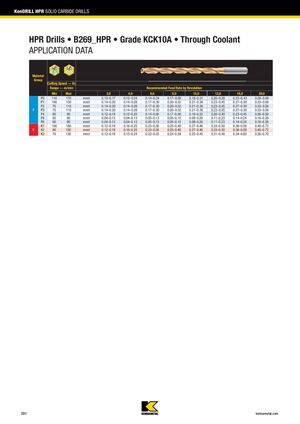

Сверла HPR • B269_HPR • Сорт KCK10A • Через охладитель

Группа материалов	Скорость резания Vc (м/мин)	Рекомендуемая подача на оборот (мм/об)
	Мин–макс	3,0	4,0	6,0	8,0	10,0	12,0	16,0–20,0
P0	110–170	0.12–0.17	0.12–0.24	0.14–0.24	0.17–0.28	0.18–0.31	0.20–0.39	0.23–0.48
P1	100–150	0.14–0.20	0.14–0.28	0.17–0.30	0.20–0.32	0.21–0.36	0.23–0.45	0.27–0.56
P2	70–110	0.14–0.20	0.14–0.28	0.17–0.30	0.20–0.32	0.21–0.36	0.23–0.45	0.33–0.56
P3	70–110	0.14–0.20	0.14–0.28	0.17–0.30	0.20–0.32	0.21–0.36	0.23–0.45	0.27–0.56
P4	60–90	0.12–0.19	0.12–0.25	0.14–0.26	0.17–0.26	0.18–0.32	0.20–0.40	0.26–0.50
P5	60–90	0.04–0.13	0.04–0.13	0.05–0.13	0.05–0.15	0.08–0.20	0.11–0.23	0.16–0.26
P6	60–80	0.04–0.13	0.04–0.13	0.05–0.13	0.05–0.15	0.08–0.20	0.11–0.23	0.16–0.26
K1	100–180	0.12–0.19	0.16–0.25	0.23–0.36	0.25–0.40	0.27–0.46	0.33–0.50	0.40–0.72
K2	80–150	0.12–0.19	0.16–0.25	0.23–0.36	0.25–0.40	0.27–0.46	0.33–0.50	0.40–0.72
K3	70–130	0.12–0.18	0.15–0.24	0.22–0.35	0.24–0.39	0.25–0.45	0.31–0.48	0.36–0.70
