Новинки Kennametal - осень 2024 - страница 20

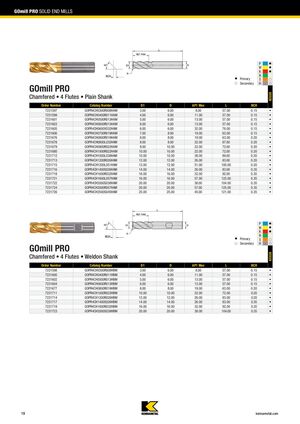

GOmill PRO SOLID END MILLS P 䢇 M 䢇 K 䢇 N 䢇 Primary 嘷 S 嘷 Secondary H 嘷 GOmill PRO KCU20 Chamfered • 4 Flutes • Plain Shank Order Number Catalog Number D1 D AP1 Max L BCH 7231597 GOPR4CH0300R008HAM 3.00 6.00 8.00 57.00 0.15 • 7231599 GOPR4CH0400R011HAM 4.00 6.00 11.00 57.00 0.15 • 7231601 GOPR4CH0500R013HAM 5.00 6.00 13.00 57.00 0.15 • 7231603 GOPR4CH0600R013HAM 6.00 6.00 13.00 57.00 0.15 • 7231605 GOPR4CH0600X032HAM 6.00 6.00 32.00 76.00 0.15 • 7231606 GOPR4CH0700R019HAM 7.00 8.00 19.00 63.00 0.15 • 7231676 GOPR4CH0800R019HAM 8.00 8.00 19.00 63.00 0.20 • 7231678 GOPR4CH0800L032HAM 8.00 8.00 32.00 87.00 0.20 • 7231679 GOPR4CH0900R022HAM 9.00 10.00 22.00 72.00 0.20 • 7231680 GOPR4CH1000R022HAM 10.00 10.00 22.00 72.00 0.20 • 7231712 GOPR4CH1000L038HAM 10.00 10.00 38.00 89.00 0.20 • 7231713 GOPR4CH1200R026HAM 12.00 12.00 26.00 83.00 0.20 • 7231715 GOPR4CH1200L051HAM 12.00 12.00 51.00 100.00 0.20 • 7231716 GOPR4CH1400S026HAM 14.00 14.00 26.00 83.00 0.35 • 7231718 GOPR4CH1600R032HAM 16.00 16.00 32.00 92.00 0.35 • 7231721 GOPR4CH1600L057HAM 16.00 16.00 57.00 125.00 0.35 • 7231722 GOPR4CH2000S038HAM 20.00 20.00 38.00 104.00 0.35 • 7231724 GOPR4CH2000R057HAM 20.00 20.00 57.00 125.00 0.35 • 7231726 GOPR4CH2500S045HAM 25.00 25.00 45.00 121.00 0.35 • P 䢇 M 䢇 K 䢇 N 䢇 Primary 嘷 S 嘷 Secondary H 嘷 GOmill PRO KCU20 Chamfered • 4 Flutes • Weldon Shank Order Number Catalog Number D1 D AP1 Max L BCH 7231598 GOPR4CH0300R008HBM 3.00 6.00 8.00 57.00 0.15 • 7231600 GOPR4CH0400R011HBM 4.00 6.00 11.00 57.00 0.15 • 7231602 GOPR4CH0500R013HBM 5.00 6.00 13.00 57.00 0.15 • 7231604 GOPR4CH0600R013HBM 6.00 6.00 13.00 57.00 0.15 • 7231677 GOPR4CH0800R019HBM 8.00 8.00 19.00 63.00 0.20 • 7231711 GOPR4CH1000R022HBM 10.00 10.00 22.00 72.00 0.20 • 7231714 GOPR4CH1200R026HBM 12.00 12.00 26.00 83.00 0.20 • 7231717 GOPR4CH1400S026HBM 14.00 14.00 26.00 83.00 0.35 • 7231719 GOPR4CH1600R032HBM 16.00 16.00 32.00 92.00 0.35 • 7231723 GOPR4CH2000S038HBM 20.00 20.00 38.00 104.00 0.35 • 19 kennametal.com
