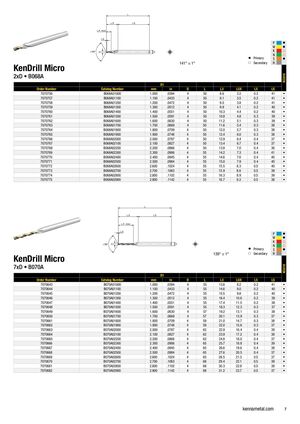

Цельные твердосплавные микросверла линейки KenDrill Micro Kennametal 2025 - страница 7

P v M v K j N j v Primary S v 141° ± 1° j Secondary H KenDrill Micro 2xD • B068A KCU10 D1 Order Number Catalog Number mm in D L L3 LUX L5 LS 7070756 B068A01000 1.000 .0394 4 50 8.6 3.2 0.2 41 • 7070757 B068A01100 1.100 .0433 4 50 9.1 3.5 0.2 41 • 7070758 B068A01200 1.200 .0472 4 50 9.5 3.8 0.2 41 • 7070759 B068A01300 1.300 .0512 4 50 9.9 4.1 0.2 40 • 7070760 B068A01400 1.400 .0551 4 50 10.3 4.4 0.2 40 • 7070761 B068A01500 1.500 .0591 4 50 10.8 4.8 0.3 39 • 7070762 B068A01600 1.600 .0630 4 50 11.2 5.1 0.3 39 • 7070763 B068A01700 1.700 .0669 4 50 11.6 5.4 0.3 38 • 7070764 B068A01800 1.800 .0709 4 50 12.0 5.7 0.3 38 • 7070765 B068A01900 1.900 .0748 4 50 12.4 6.0 0.3 38 • 7070766 B068A02000 2.000 .0787 4 50 12.9 6.4 0.4 37 • 7070767 B068A02100 2.100 .0827 4 50 13.4 6.7 0.4 37 • 7070768 B068A02200 2.200 .0866 4 50 13.8 7.0 0.4 36 • 7070769 B068A02300 2.300 .0906 4 55 14.2 7.3 0.4 41 • 7070770 B068A02400 2.400 .0945 4 55 14.6 7.6 0.4 40 • 7070771 B068A02500 2.500 .0984 4 55 15.0 7.9 0.4 40 • 7070772 B068A02600 2.600 .1024 4 55 15.5 8.3 0.5 40 • 7070773 B068A02700 2.700 .1063 4 55 15.9 8.6 0.5 39 • 7070774 B068A02800 2.800 .1102 4 55 16.3 8.9 0.5 39 • 7070775 B068A02900 2.900 .1142 4 55 16.7 9.2 0.5 38 • P v M v K j N j v Primary S v 139° ± 1° j Secondary H KenDrill Micro 7xD • B070A KCU10 D1 Order Number Catalog Number mm in D L L3 LUX L5 LS 7070643 B070A01000 1.000 .0394 4 55 13.6 8.2 0.2 41 • 7070644 B070A01100 1.100 .0433 4 55 14.6 9.0 0.2 40 • 7070645 B070A01200 1.200 .0472 4 55 15.5 9.8 0.2 40 • 7070646 B070A01300 1.300 .0512 4 55 16.4 10.6 0.2 39 • 7070647 B070A01400 1.400 .0551 4 55 17.4 11.5 0.2 38 • 7070648 B070A01500 1.500 .0591 4 55 18.3 12.3 0.3 37 • 7070649 B070A01600 1.600 .0630 4 57 19.2 13.1 0.3 38 • 7070650 B070A01700 1.700 .0669 4 57 20.1 13.9 0.3 37 • 7070661 B070A01800 1.800 .0709 4 59 21.0 14.7 0.3 38 • 7070662 B070A01900 1.900 .0748 4 59 22.0 15.6 0.3 37 • 7070663 B070A02000 2.000 .0787 4 62 22.9 16.4 0.4 39 • 7070664 B070A02100 2.100 .0827 4 62 23.9 17.2 0.4 38 • 7070665 B070A02200 2.200 .0866 4 62 24.8 18.0 0.4 37 • 7070666 B070A02300 2.300 .0906 4 65 25.7 18.8 0.4 39 • 7070667 B070A02400 2.400 .0945 4 65 26.6 19.6 0.4 38 • 7070668 B070A02500 2.500 .0984 4 65 27.6 20.5 0.4 37 • 7070669 B070A02600 2.600 .1024 4 65 28.5 21.3 0.5 37 • 7070670 B070A02700 2.700 .1063 4 68 29.4 22.1 0.5 39 • 7070681 B070A02800 2.800 .1102 4 68 30.3 22.9 0.5 38 • 7070682 B070A02900 2.900 .1142 4 68 31.2 23.7 0.5 37 • kennametal.com 7
