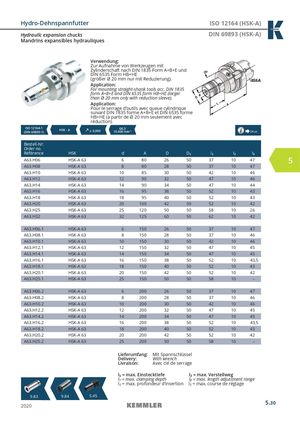

Mandrins expansibles hydrauliques
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft nach DIN 1835 Form A+B+E und DIN 6535 Form HB+HE (größer Ø 20 mm nur mit Reduzierung).
Application: For mounting straight-shank tools acc. DIN 1835 form A+B+E and DIN 6535 form HB+HE (larger than Ø 20 mm only with reduction sleeve).
Application: Pour le serrage d’outils avec queue cylindrique suivant DIN 1835 forme A+B+E et DIN 6535 forme HB+HE (à partir de Ø 20 mm seulement avec réduction).
ISO 12164-1 G6,3
HSK - A ≤ 0,003 15.000 min
(DIN 69893-1) -1 14.04
| Bestell-Nr. Order no. Référence | HSK | d | A | D | D1 | l1 | l2 | l3 |
| A63.H06 | HSK-A 63 | 6 | 80 | 26 | 50 | 37 | 10 | 47 |
| A63.H08 | HSK-A 63 | 8 | 80 | 28 | 50 | 37 | 10 | 47 |
| A63.H10 | HSK-A 63 | 10 | 85 | 30 | 50 | 42 | 10 | 46 |
| A63.H12 | HSK-A 63 | 12 | 90 | 32 | 50 | 47 | 10 | 46 |
| A63.H14 | HSK-A 63 | 14 | 90 | 34 | 50 | 47 | 10 | 44 |
| A63.H16 | HSK-A 63 | 16 | 95 | 38 | 50 | 52 | 10 | 43 |
| A63.H18 | HSK-A 63 | 18 | 95 | 40 | 50 | 52 | 10 | 43 |
| A63.H20 | HSK-A 63 | 20 | 100 | 42 | 50 | 52 | 10 | 42 |
| A63.H25 | HSK-A 63 | 25 | 120 | 50 | 50 | 58 | 10 | 26 |
| A63.H32 | HSK-A 63 | 32 | 125 | 60 | 50 | 62 | 10 | 42 |
| A63.H06.1 | HSK-A 63 | 6 | 150 | 26 | 50 | 37 | 10 | 47 |
| A63.H08.1 | HSK-A 63 | 8 | 150 | 28 | 50 | 37 | 10 | 46 |
| A63.H10.1 | HSK-A 63 | 10 | 150 | 30 | 50 | 42 | 10 | 46 |
| A63.H12.1 | HSK-A 63 | 12 | 150 | 32 | 50 | 47 | 10 | 45 |
| A63.H14.1 | HSK-A 63 | 14 | 150 | 34 | 50 | 47 | 10 | 45 |
| A63.H16.1 | HSK-A 63 | 16 | 150 | 38 | 50 | 52 | 10 | 43,5 |
| A63.H18.1 | HSK-A 63 | 18 | 150 | 40 | 50 | 52 | 10 | 43 |
| A63.H20.1 | HSK-A 63 | 20 | 150 | 42 | 50 | 52 | 10 | 42 |
| A63.H25.1 | HSK-A 63 | 25 | 150 | 50 | 50 | 58 | 10 | – |
| A63.H06.2 | HSK-A 63 | 6 | 200 | 26 | 50 | 37 | 10 | 47 |
| A63.H08.2 | HSK-A 63 | 8 | 200 | 28 | 50 | 37 | 10 | 46 |
| A63.H10.2 | HSK-A 63 | 10 | 200 | 30 | 50 | 42 | 10 | 46 |
| A63.H12.2 | HSK-A 63 | 12 | 200 | 32 | 50 | 47 | 10 | 45 |
| A63.H14.2 | HSK-A 63 | 14 | 200 | 34 | 50 | 47 | 10 | 45 |
| A63.H16.2 | HSK-A 63 | 16 | 200 | 38 | 50 | 52 | 10 | 43,5 |
| A63.H18.2 | HSK-A 63 | 18 | 200 | 40 | 50 | 52 | 10 | 43 |
| A63.H20.2 | HSK-A 63 | 20 | 200 | 42 | 50 | 52 | 10 | 42 |
| A63.H25.2 | HSK-A 63 | 25 | 200 | 50 | 50 | 58 | 10 | – |
Lieferumfang: Mit Spannschlüssel
Delivery: With wrench
Livraison: Avec clé de serrage l = max. Einstecktiefe l = max. Verstellweg l1 = max. clamping depth l2 = max. length adjustment range 1 2 l = max. profondeur d’insertion l = max. course de réglage
