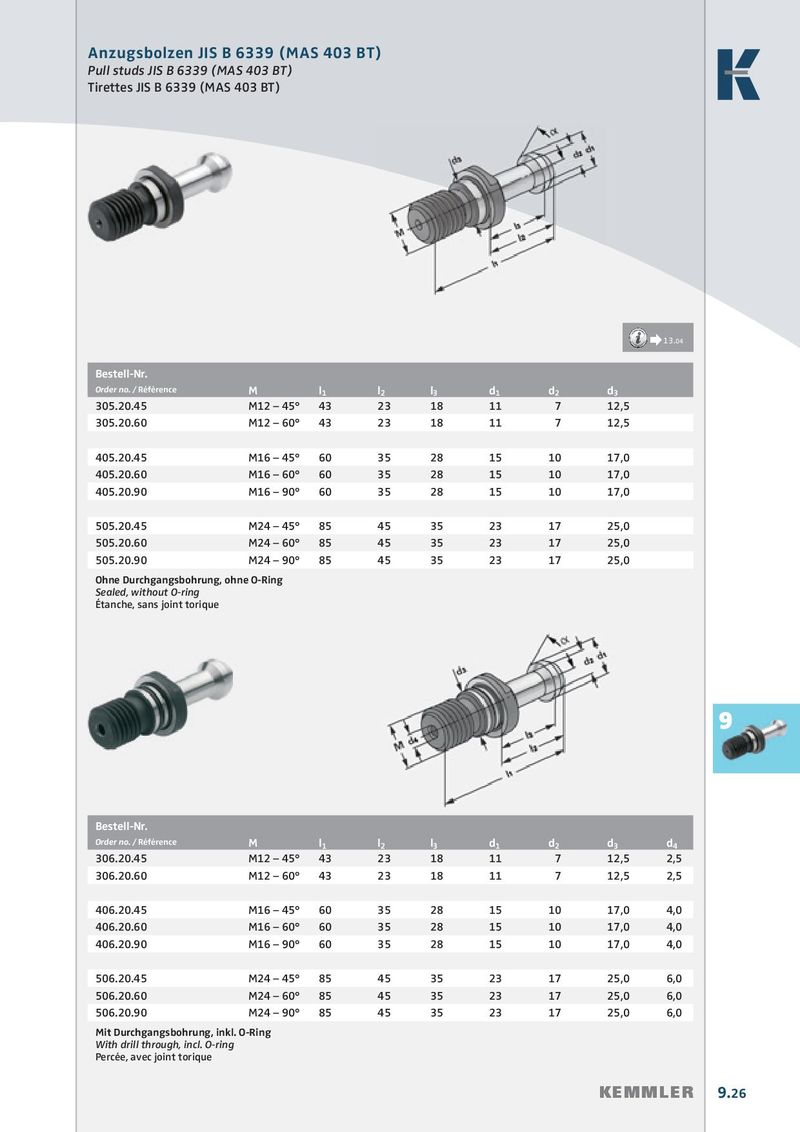

Anzugsbolzen JIS B 6339 (MAS 403 BT) Pull studs JIS B 6339 (MAS 403 BT) Tirettes JIS B 6339 (MAS 403 BT) Æ 13.04 Bestell-Nr. Order no. / Référence M l 1 l 2 l 3 d 1 d 2 d 3 305.20.45 M12 – 45° 43 23 18 11  7 12,5 305.20.60 M12 – 60° 43 23 18 11  7 12,5 405.20.45 M16 – 45° 60 35 28 15 10 17,0 405.20.60 M16 – 60° 60 35 28 15 10 17,0 405.20.90 M16 – 90° 60 35 28 15 10 17,0 505.20.45 M24 – 45° 85 45 35 23 17 25,0 505.20.60 M24 – 60° 85 45 35 23 17 25,0 505.20.90 M24 – 90° 85 45 35 23 17 25,0 Ohne Durchgangsbohrung, ohne O-Ring Sealed, without O-ring Étanche, sans joint torique 9 Bestell-Nr. Order no. / Référence M l 1 l 2 l 3 d 1 d 2 d 3 d 4 306.20.45 M12 – 45° 43 23 18 11  7 12,5 2,5 306.20.60 M12 – 60° 43 23 18 11  7 12,5 2,5 406.20.45 M16 – 45° 60 35 28 15 10 17,0 4,0 406.20.60 M16 – 60° 60 35 28 15 10 17,0 4,0 406.20.90 M16 – 90° 60 35 28 15 10 17,0 4,0 506.20.45 M24 – 45° 85 45 35 23 17 25,0 6,0 506.20.60 M24 – 60° 85 45 35 23 17 25,0 6,0 506.20.90 M24 – 90° 85 45 35 23 17 25,0 6,0 Mit Durchgangsbohrung, inkl. O-Ring With drill through, incl. O-ring Percée, avec joint torique KEMMLER 9.26
