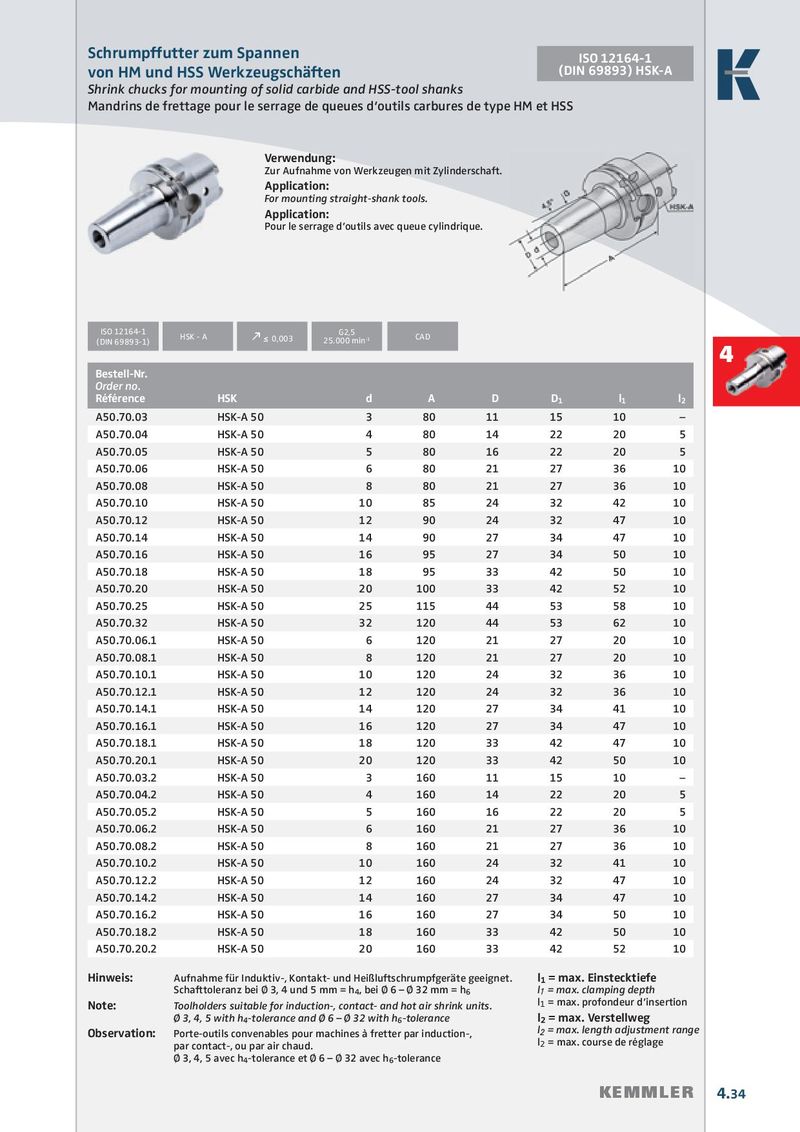

Общий каталог Kemmler 2017 - 2018 - страница 155
Навигация
Каталог Kemmler цанговые зажимы
Каталог Kemmler зажимные болты
Каталог Kemmler цанговые патроны KPS
Каталог Kemmler усадочные патроны и усадочная техника
Каталог Kemmler сверлильные патроны для станков с ЧПУ
Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application: For mounting straight-shank tools.
Application: Pour le serrage d’outils avec queue cylindrique.
| ISO 12164-1 (DIN 69893-1) HS | K - A ≤0,003 | G2,5 25.000 min-1 | CAD | ||||
| Bestell-Nr. Order no. Référence | HSK | d | A | D | D1 | l1 | l2 |
| A50.70.03 | HSK-A 50 | 3 | 80 | 11 | 15 | 10 | – |
| A50.70.04 | HSK-A 50 | 4 | 80 | 14 | 22 | 20 | 5 |
| A50.70.05 | HSK-A 50 | 5 | 80 | 16 | 22 | 20 | 5 |
| A50.70.06 | HSK-A 50 | 6 | 80 | 21 | 27 | 36 | 10 |
| A50.70.08 | HSK-A 50 | 8 | 80 | 21 | 27 | 36 | 10 |
| A50.70.10 | HSK-A 50 | 10 | 85 | 24 | 32 | 42 | 10 |
| A50.70.12 | HSK-A 50 | 12 | 90 | 24 | 32 | 47 | 10 |
| A50.70.14 | HSK-A 50 | 14 | 90 | 27 | 34 | 47 | 10 |
| A50.70.16 | HSK-A 50 | 16 | 95 | 27 | 34 | 50 | 10 |
| A50.70.18 | HSK-A 50 | 18 | 95 | 33 | 42 | 50 | 10 |
| A50.70.20 | HSK-A 50 | 20 | 100 | 33 | 42 | 52 | 10 |
| A50.70.25 | HSK-A 50 | 25 | 115 | 44 | 53 | 58 | 10 |
| A50.70.32 | HSK-A 50 | 32 | 120 | 44 | 53 | 62 | 10 |
| A50.70.06.1 | HSK-A 50 | 6 | 120 | 21 | 27 | 20 | 10 |
| A50.70.08.1 | HSK-A 50 | 8 | 120 | 21 | 27 | 20 | 10 |
| A50.70.10.1 | HSK-A 50 | 10 | 120 | 24 | 32 | 36 | 10 |
| A50.70.12.1 | HSK-A 50 | 12 | 120 | 24 | 32 | 36 | 10 |
| A50.70.14.1 | HSK-A 50 | 14 | 120 | 27 | 34 | 41 | 10 |
| A50.70.16.1 | HSK-A 50 | 16 | 120 | 27 | 34 | 47 | 10 |
| A50.70.18.1 | HSK-A 50 | 18 | 120 | 33 | 42 | 47 | 10 |
| A50.70.20.1 | HSK-A 50 | 20 | 120 | 33 | 42 | 50 | 10 |
| A50.70.03.2 | HSK-A 50 | 3 | 160 | 11 | 15 | 10 | – |
| A50.70.04.2 | HSK-A 50 | 4 | 160 | 14 | 22 | 20 | 5 |
| A50.70.05.2 | HSK-A 50 | 5 | 160 | 16 | 22 | 20 | 5 |
| A50.70.06.2 | HSK-A 50 | 6 | 160 | 21 | 27 | 36 | 10 |
| A50.70.08.2 | HSK-A 50 | 8 | 160 | 21 | 27 | 36 | 10 |
| A50.70.10.2 | HSK-A 50 | 10 | 160 | 24 | 32 | 41 | 10 |
| A50.70.12.2 | HSK-A 50 | 12 | 160 | 24 | 32 | 47 | 10 |
| A50.70.14.2 | HSK-A 50 | 14 | 160 | 27 | 34 | 47 | 10 |
| A50.70.16.2 | HSK-A 50 | 16 | 160 | 27 | 34 | 50 | 10 |
| A50.70.18.2 | HSK-A 50 | 18 | 160 | 33 | 42 | 50 | 10 |
| A50.70.20.2 | HSK-A 50 | 20 | 160 | 33 | 42 | 52 | 10 |
| Hinweis: Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet. | l1 = max. Einstecktiefe | |
| Schafttoleranz bei Ø 3, 4 und 5 mm = h4, bei Ø 6 – Ø 32 mm = h6 | l1 = max. clamping depth | |
| Note: Toolholders suitable for induction-, contact- and hot air shrink units. | l1 = max. profondeur d’insertion | |
| Ø 3, 4, 5 with h -tolerance and Ø 6 – Ø 32 with h -tolerance | l2 = max. Verstellweg |
4 6 Observation: l2 = max. length adjustment range Porte-outils convenables pour machines à fretter par induction-,
