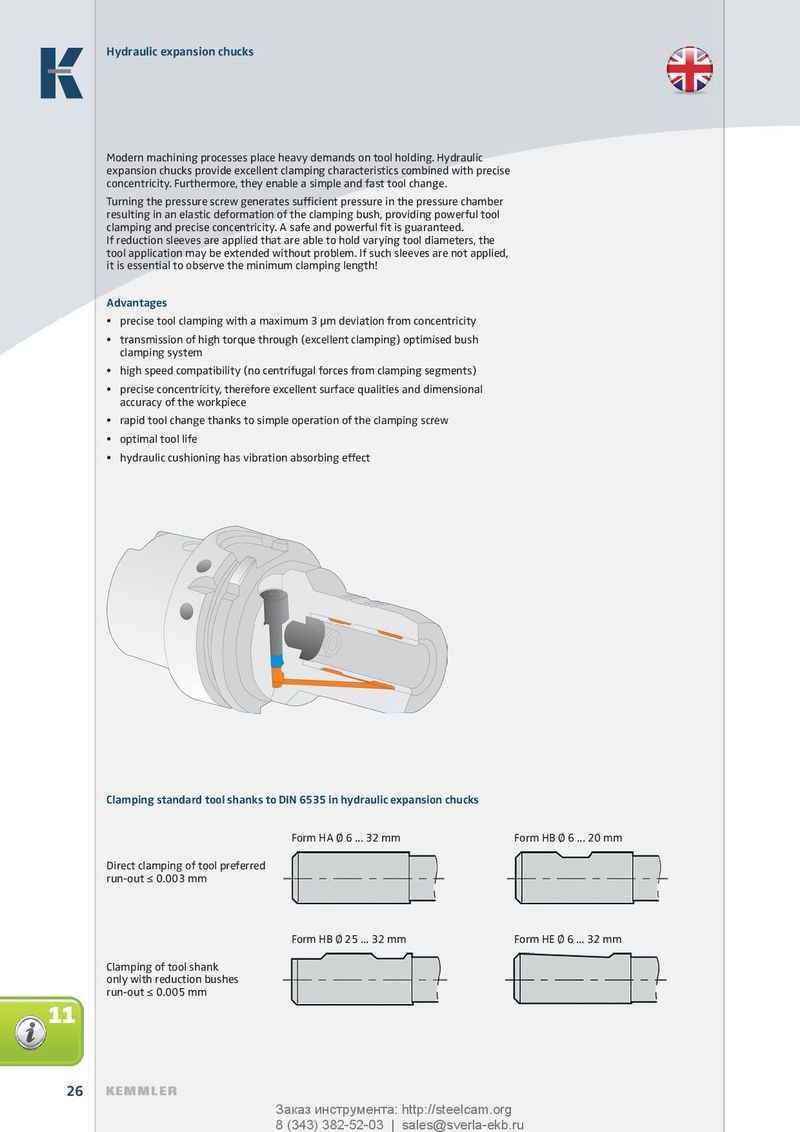

Modern machining processes place heavy demands on tool holding. Hydraulic expansion chucks provide excellent clamping characteristics combined with precise concentricity. Furthermore, they enable a simple and fast tool change. Turning the pressure screw generates suffi cient pressure in the pressure chamber resulting in an elastic deformation of the clamping bush, providing powerful tool clamping and precise concentricity. A safe and powerful fi t is guaranteed. If reduction sleeves are applied that are able to hold varying tool diameters, the tool application may be extended without problem. If such sleeves are not applied, it is essential to observe the minimum clamping length! Advantages

• precise tool clamping with a maximum 3 µm deviation from concentricity
• transmission of high torque through (excellent clamping) optimised bush clamping system
• high speed compatibility (no centrifugal forces from clamping segments)
• precise concentricity, therefore excellent surface qualities and dimensional accuracy of the workpiece
• rapid tool change thanks to simple operation of the clamping screw
• optimal tool life
• hydraulic cushioning has vibration absorbing effect

Clamping standard tool shanks to DIN 6535 in hydraulic expansion chucks Form HA Ø 6 ... 32 mm Form HB Ø 6 ... 20 mm Direct clamping of tool preferred run-out ≤ 0.003 mm

Form HB Ø 25 ... 32 mm Form HE Ø 6 ... 32 mm Clamping of tool shank only with reduction bushes run-out ≤ 0.005 mm
