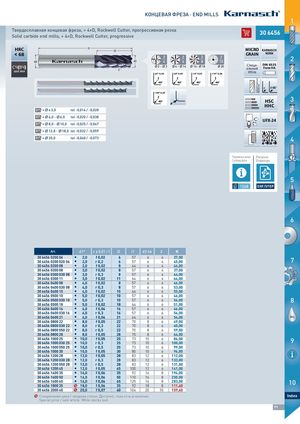

Основной каталог Karnasch 2021 - страница 97
Навигация
Каталог стоматологического инструмента Karnasch 2021
Каталог микроинструмента Karnasch 2021
Каталог магнитных станков Karnasch 2021
Каталог прямошлифовальные машины Karnasch 2021
Твердосплавная концевая фреза, > 4×D, Rockwell Cutter, прогрессивная резка 30 6456306456
Solid carbide end mills, > 4×D, Rockwell Cutter, progressive
HRC MICRO
KARNASCH
< 68 GRAIN NORM
| Z | Z | Z | Z | 2 | |||||
| 4 | 6 | 8 | 10 | ||||||
| СЧ(ВЧ) | 2 - | 3 | 4 - | 14 | 16 - | 18 | 20 | Специ- | DIN 6535 |
| | | | | | | | альный | Form HA | |
| cast iron | SPECIAL | ||||||||
| ≤ 5Ø 0,02 | ≥6Ø 0,04 | > 8 Ø 0,05 | >14Ø 0,06 | ||||||
| f | f | f | f |
r f 45° >20Ø 0,07 f 3 HSC
HHC
d1* = ≤ 3,0 tol -0,014 / -0,028 d1* = 4,0 - 6,0 tol -0,020 / -0,038
UFX-24
d1* = 8,0 - 10,0 tol -0,025 / -0,047 d1* = 12,0 - 18,0 tol -0,032 / -0,059
d1* = 20,0 tol -0,040 / -0,073 4
Параметры резки Рисунки Cutting data Drawings
5
1268 DXF/STEP
6
| Art. | d1 | r ± 0,01 / f | l2 | l1 | d2 h6 | Z | € | |
| 306456020006 6 0 06 | I | 2,0 | f 0,02 | 6 | 57 | 6 | 4 | 37,00 |
| 306456020002006 6 0 02 06 | I | 2,0 | r 0,2 | 6 | 57 | 6 | 4 | 45,00 |
| 306456020008 6 0 08 | I | 2,0 | f 0,02 | 8 | 64 | 6 | 4 | 44,00 |
| 306456030008 6 0 08 | I | 3,0 | f 0,02 | 8 | 57 | 6 | 4 | 37,00 |
| 306456030003008 6 0 03 08 | I | 3,0 | r 0,3 | 8 | 57 | 6 | 4 | 44,00 |
| 306456030011 6 0 11 | I | 3,0 | f 0,02 | 11 | 64 | 6 | 4 | 44,00 |
| 306456040008 6 0 08 | I | 4,0 | f 0,02 | 8 | 57 | 6 | 6 | 46,00 |
| 306456040003008 6 0 03 08 | I | 4,0 | r 0,3 | 8 | 57 | 6 | 6 | 53,00 |
| 306456040015 6 0 15 | I | 4,0 | f 0,02 | 15 | 64 | 6 | 6 | 55,00 |
| 306456050010 6 0 10 | I | 5,0 | f 0,02 | 10 | 57 | 6 | 6 | 46,00 |
| 306456050003010 6 0 03 10 | I | 5,0 | r 0,3 | 10 | 57 | 6 | 6 | 54,00 |
| 306456050018 6 0 18 | I | 5,0 | f 0,02 | 18 | 64 | 6 | 6 | 51,00 |
| 306456060016 6 0 16 | I | 6,0 | f 0,04 | 16 | 57 | 6 | 6 | 46,00 |
| 306456060003016 6 0 03 16 | I | 6,0 | r 0,3 | 16 | 57 | 6 | 6 | 54,00 |
| 306456060021 6 0 21 | I | 6,0 | f 0,04 | 21 | 64 | 6 | 6 | 54,00 |
| 306456080022 6 0 22 | I | 8,0 | f 0,05 | 22 | 70 | 8 | 6 | 49,00 |
| 306456080003022 6 0 03 22 | I | 8,0 | r 0,3 | 22 | 70 | 8 | 6 | 60,00 |
| 306456080005022 6 0 05 22 | I | 8,0 | r 0,5 | 22 | 70 | 8 | 6 | 59,00 |
| 306456080028 6 0 28 | I | 8,0 | f 0,05 | 28 | 75 | 8 | 6 | 64,00 |
| 306456100025 6 1 25 | I | 10,0 | f 0,05 | 25 | 73 | 10 | 6 | 84,00 |
| 306456100003025 6 1 03 25 | I | 10,0 | r 0,3 | 25 | 73 | 10 | 6 | 100,00 |
| 306456100005025 6 1 05 25 | I | 10,0 | r 0,5 | 25 | 73 | 10 | 6 | 99,00 |
| 306456100030 6 1 30 | I | 10,0 | f 0,05 | 30 | 80 | 10 | 6 | 96,00 |
| 306456120028 6 1 28 | I | 12,0 | f 0,05 | 28 | 83 | 12 | 6 | 112,00 |
| 306456120003028 6 1 03 28 | I | 12,0 | r 0,3 | 28 | 83 | 12 | 6 | 133,00 |
| 306456120005028 6 1 05 28 | I | 12,0 | r 0,5 | 28 | 83 | 12 | 6 | 131,00 |
| 306456120045 6 1 45 | I | 12,0 | f 0,05 | 45 | 100 | 12 | 6 | 141,00 |
| 306456160035 6 1 35 | I | 16,0 | f 0,06 | 35 | 92 | 16 | 8 | 194,00 |
| 306456160050 6 1 50 | I | 16,0 | f 0,06 | 50 | 110 | 16 | 8 | 250,00 |
| 306456160065 6 1 65 | I | 16,0 | f 0,06 | 65 | 125 | 16 | 8 | 283,00 |
| 306456180035 6 1 35 | % | 18,0 | f 0,06 | 35 | 92 | 18 | 8 | 111,60 |
| 306456200040 6 2 40 | % | 20,0 | f 0,07 | 40 | 104 | 20 | 10 | 159,60 |
