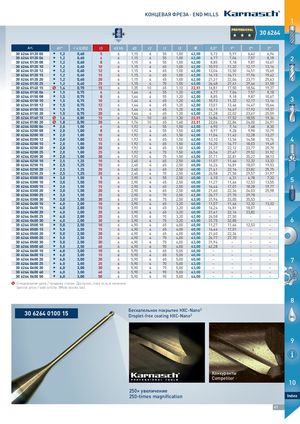

Основной каталог Karnasch 2021 - страница 63
Навигация
Каталог стоматологического инструмента Karnasch 2021
Каталог микроинструмента Karnasch 2021
Каталог магнитных станков Karnasch 2021
Каталог прямошлифовальные машины Karnasch 2021
| d2 6 | 306264 | ||||||||||||
| Art. | d1 | r ± 0,002 | l3 | d2 h5 | d3 | r2 | l1 | l2 | € | 0,5° | 1° | 2° | 3° |
| 306264012005 6 01 05 | I 1,2 | 0,60 | 5 | 6 | 115 | 4 | 55 | 100 | 42,00 | 572 | 597 | 642 | 694 |
| 306264012006 6 01 06 | I 12 | 060 | 6 | 6 | , 115 | 4 | 55 | , 100 | 4200 | , 677 | , 704 | , 757 | , 818 |
| 306264012008 6 01 08 | , I 1,2 | , 0,60 | 8 | 6 | , 1,15 | 4 | 55 | , 1,00 | , 42,00 | , 8,85 | , 9,18 | , 9,87 | , 10,67 |
| 306264012010 6 01 10 | I 1,2 | 0,60 | 10 | 6 | 1,15 | 4 | 65 | 1,00 | 42,00 | 10,93 | 11,32 | 12,17 | 13,16 |
| 306264012012 6 01 12 | I 12 | 060 | 12 | 6 | 115 | 4 | 65 | 100 | 4200 | 1304 | 1350 | 1451 | 1569 |
| 306264012015 6 01 15 | , I 12 | , 060 | 15 | 6 | , 115 | 4 | 65 | , 100 | , 4200 | , 1615 | , 1671 | , 1796 | , 1942 |
| 306264012020 6 01 20 | , I 1,2 | , 0,60 | 20 | 6 | , 1,15 | 4 | 65 | , 1,00 | , 42,00 | , 21,31 | , 22,06 | , 23,71 | , 25,63 |
| 306264012025 6 01 25 | I 1,2 | 0,60 | 25 | 6 | 1,15 | 4 | 70 | 1,00 | 43,00 | 26,48 | 27,41 | 29,46 | 31,58 |
| 306264014015 6 01 15 | % 14 | 070 | 15 | 6 | 135 | 10 | 65 | 110 | 2251 | 1681 | 1750 | 1854 | 1937 |
| 306264015006 6 01 06 | , I 1,5 | , 0,75 | 6 | 6 | , 1,44 | 4 | 55 | , 1,20 | , 42,00 | , 6,77 | , 7,04 | , 7,57 | , 8,18 |
| 306264015008 6 01 08 | I 1,5 | 0,75 | 8 | 6 | 1,44 | 4 | 55 | 1,20 | 42,00 | 8,85 | 9,18 | 9,87 | 10,67 |
| 306264015010 6 01 10 | I 15 | 075 | 10 | 6 | 144 | 4 | 65 | 120 | 4200 | 1093 | 1132 | 1217 | 1316 |
| 306264015012 6 01 12 | , I 15 | , 075 | 12 | 6 | , 144 | 4 | 65 | , 120 | , 4200 | , 1301 | , 1346 | , 1447 | , 1564 |
| 306264015015 6 01 15 | , I 1,5 | , 0,75 | 15 | 6 | , 1,44 | 4 | 65 | , 1,20 | , 42,00 | , 16,11 | , 16,67 | , 17,92 | , 19,37 |
| 306264015020 6 01 20 | I 15 | 075 | 20 | 6 | 144 | 4 | 65 | 120 | 4300 | 2128 | 2202 | 2367 | 2559 |
| 306264016015 6 01 15 | , % 16 | , 080 | 15 | 6 | , 154 | 10 | 65 | , 130 | , 2251 | , 1684 | , 1752 | , 1855 | , 1936 |
| 306264018020 6 01 20 | , % 1,8 | , 0,90 | 20 | 6 | , 1,74 | 10 | 65 | , 1,40 | , 22,51 | , 22,06 | , 22,84 | , 24,00 | , 24,91 |
| 306264020006 6 02 06 | I 2,0 | 1,00 | 6 | 6 | 1,92 | 4 | 55 | 1,50 | 42,00 | 6,90 | 7,14 | 7,68 | 8,30 |
| 306264020008 6 02 08 | I 20 | 100 | 8 | 6 | 192 | 4 | 55 | 150 | 4200 | 897 | 928 | 998 | 1079 |
| 306264020010 6 02 10 | , I 2,0 | , 1,00 | 10 | 6 | , 1,92 | 4 | 65 | , 1,50 | , 42,00 | , 11,04 | , 11,42 | , 12,28 | , 13,27 |
| 306264020012 6 02 12 | I 2,0 | 1,00 | 12 | 6 | 1,92 | 4 | 65 | 1,50 | 42,00 | 13,10 | 13,56 | 14,58 | 15,76 |
| 306264020015 6 02 15 | I 2,0 | 1,00 | 15 | 6 | 1,92 | 4 | 65 | 1,50 | 42,00 | 16,20 | 16,77 | 18,03 | 19,49 |
| 306264020020 6 02 20 | I 2,0 | 1,00 | 20 | 6 | 192 | 4 | 65 | 150 | 43,00 | 2137 | 2212 | 2377 | 2570 |
| 306264020025 6 02 25 | I 2,0 | 1,00 | 25 | 6 | , 1,92 | 4 | 70 | , 1,50 | 43,00 | , 26,54 | , 27,47 | , 29,52 | , 31,92 |
| 306264020030 6 02 30 | I 2,0 | 1,00 | 30 | 6 | 192 | 4 | 75 | 150 | 43,00 | 3171 | 3281 | 3527 | 3813 |
| 306264025010 6 02 10 | I 2,5 | 1,25 | 10 | 6 | , 2,40 | 4 | 65 | , 2,50 | 40,00 | , 11,07 | , 11,46 | , 12,32 | , 13,32 |
| 306264025015 6 02 15 | I 2,5 | 1,25 | 15 | 6 | 2,40 | 4 | 65 | 2,50 | 40,00 | 16,24 | 16,81 | 18,07 | 19,53 |
| 306264025020 6 02 20 | I 2,5 | 1,25 | 20 | 6 | 2,40 | 4 | 65 | 2,50 | 40,00 | 21,41 | 22,16 | 23,82 | 25,75 |
| 306264025025 6 02 25 | I 2,5 | 1,25 | 25 | 6 | 2,40 | 4 | 70 | 2,50 | 42,00 | 26,58 | 27,50 | 29,57 | 31,97 |
| 306264030005 6 03 05 | I 3,0 | 1,50 | 5 | 6 | 290 | 4 | 55 | 250 | 40,00 | 610 | 631 | 678 | 733 |
| 306264030010 6 03 10 | I 3,0 | 1,50 | 10 | 6 | , 2,90 | 4 | 65 | , 2,50 | 40,00 | , 11,27 | , 11,66 | , 12,53 | , 13,55 |
| 306264030015 6 03 15 | I 3,0 | 1,50 | 15 | 6 | 2,90 | 4 | 65 | 2,50 | 40,00 | 16,44 | 17,01 | 18,28 | 19,77 |
| 306264030020 6 03 20 | I 3,0 | 1,50 | 20 | 6 | 2,90 | 4 | 65 | 2,50 | 40,00 | 21,60 | 22,36 | 24,03 | 25,98 |
| 306264030025 6 03 25 | I 3,0 | 1,50 | 25 | 6 | 2,90 | 4 | 70 | 2,50 | 42,00 | 26,77 | 27,70 | 29,78 | – |
| 306264030030 6 03 30 | I 30 | 150 | 30 | 6 | 290 | 4 | 75 | 250 | 4300 | 3194 | 3305 | 3553 | – |
| 306264040010 6 04 10 | , I 4,0 | , 2,00 | 10 | 6 | , 3,90 | 4 | 65 | , 3,20 | , 40,00 | , 11,07 | , 11,46 | , 12,32 | 13,32 |
| 306264040015 6 04 15 | I 4,0 | 2,00 | 15 | 6 | 3,90 | 4 | 65 | 3,20 | 40,00 | 16,24 | 16,81 | 18,07 | – |
| 306264040020 6 04 20 | I 4,0 | 2,00 | 20 | 6 | 3,90 | 4 | 65 | 3,20 | 40,00 | 21,41 | 22,16 | 23,82 | – |
| 306264040025 6 04 25 | I 4,0 | 2,00 | 25 | 6 | 3,90 | 4 | 70 | 3,20 | 42,00 | 26,58 | 27,50 | – | – |
| 306264040030 6 04 30 | I 4,0 | 2,00 | 30 | 6 | 3,90 | 4 | 75 | 3,20 | 43,00 | 31,75 | 32,85 | – | – |
| 306264050010 6 05 10 | I 5,0 | 2,50 | 10 | 6 | 4,90 | 4 | 65 | 4,00 | 40,00 | 11,27 | 11,66 | 12,53 | – |
| 306264050015 6 05 15 | I 5,0 | 2,50 | 15 | 6 | 4,90 | 4 | 65 | 4,00 | 40,00 | 16,44 | 17,01 | – | – |
| 306264050020 6 05 20 | I 5,0 | 2,50 | 20 | 6 | 4,90 | 4 | 65 | 4,00 | 40,00 | 21,60 | 22,36 | – | – |
| 306264050025 6 05 25 | I 5,0 | 2,50 | 25 | 6 | 4,90 | 4 | 70 | 4,00 | 43,00 | 26,77 | 27,70 | – | – |
| 306264050030 6 05 30 | I 5,0 | 2,50 | 30 | 6 | 490 | 4 | 75 | 400 | 43,00 | 3194 | – | – | – |
| 306264050040 6 05 40 | I 50 | 250 | 40 | 6 | , 490 | 4 | 90 | , 400 | 4300 | , 4228 | – | – | – |
| 306264060010 6 06 10 | , I 6,0 | , 3,00 | 10 | 6 | , 5,90 | 4 | 65 | , 5,00 | , 40,00 | , – | – | – | – |
| 306264060015 6 06 15 | I 60 | 300 | 15 | 6 | 590 | 4 | 65 | 500 | 4000 | – | – | – | – |
| 306264060020 6 06 20 | , I 6,0 | , 3,00 | 20 | 6 | , 5,90 | 4 | 65 | , 5,00 | , 40,00 | – | – | – | – |
| 306264060025 6 06 25 | I 6,0 | 3,00 | 25 | 6 | 5,90 | 4 | 70 | 5,00 | 43,00 | – | – | – | – |
| 306264060030 6 06 30 | I 6,0 | 3,00 | 30 | 6 | 5,90 | 4 | 75 | 5,00 | 43,00 | – | – | – | – |
| 306264060040 6 06 40 | I 60 | 300 | 40 | 6 | 590 | 4 | 90 | 500 | 4300 | – | – | – | – |
| 306264060050 6 06 50 | , I 6,0 | , 3,00 | 50 | 6 | , 5,90 | 4 | 90 | , 5,00 | , 44,00 | – | – | – | – |
% Специальная цена / продажа статьи. Доступно, пока есть в наличии. Special price / sale article. While stocks last.
30 6264 0100 15 Бескапельное покрытие HXC-Nano3
Droplet-free coating HXC-Nano3
8
OIL
9
Конкуренты
Competitor 10
250× увеличение
250-times magnification Index
