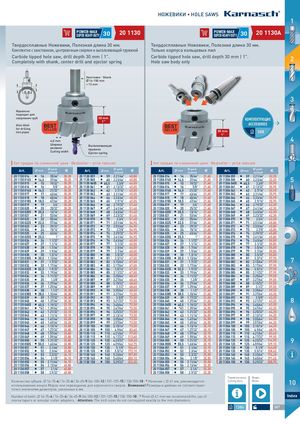

Основной каталог Karnasch 2021 - страница 579
Навигация
Каталог стоматологического инструмента Karnasch 2021
Каталог микроинструмента Karnasch 2021
Каталог магнитных станков Karnasch 2021
Каталог прямошлифовальные машины Karnasch 2021
Твердосплавные Ножевики, Полезная длина 30 мм. Твердосплавные Ножевики, Полезная длина 30 мм.
Комплектно с хвостовиком, центровочным сверлом и выталкивающей пружиной Только корпуса кольцевых пил
Carbide tipped hole saw, drill depth 30 mm | 1". Carbide tipped hole saw, drill depth 30 mm | 1". 2
Completely with shank, center drill and ejector spring Hole saw body only
Хвостовик · Shank 14-150 mm = 13 mm
3
Идеально подходит для
сверления труб 30 mm КОМПЛЕКТУЮЩИЕ
1" Also ideal ACCESSORIES for drilling
into pipes 30 mm 588
1" 4 4,0 mm Ширина Выталкивающая резания пружина Cutting width Ejector spring Хит продаж по сниженной цене · Bestseller – price reduced Хит продаж по сниженной цене · Bestseller – price reduced
| Art. | mm | дюй- | Art. | mm | дюй- | Art. | mm | дюй- | Art. | mm | дюй- | ||||||||||
| | мовый | € | | мовый | € | | мовый | € | | мовый | € | ||||||||||
| 20113001420 1130 014 | I | 14 | 35/64" | 30,20 | 20113005920 1130 059 | I | 59 | 2.21/64" | 40,80 | 201130A01420 1130A 014 | I | 14 | 35/64" | 21,60 | 201130A05920 1130A 059 | I | 59 | 2.21/64" | 5 32,20 | ||
| 201130014520 1130 0145 | I 14,5 | 37/64" | 30,20 | 20113006020 1130 060 | I | 60 | 2.23/64" | 40,80 | 201130A014520 1130A 0145 | I 14,5 | 37/64" | 21,60 | 201130A06020 1130A 060 | I | 60 | 2.23/64" | 32,20 | ||||
| 20113001520 1130 015 | I | 15 | 19/32" | 30,20 | 201130060520 1130 0605 | I 60,5 | 2.3/8" | 44,55 | 201130A01520 1130A 015 | I | 15 | 19/32" | 21,60 | 201130A060520 1130A 0605 | I 60,5 | 2.3/8" | 35,95 | ||||
| 20113001620 1130 016 | I | 16 | 5/8" | 30,20 | 20113006120 1130 061 | I | 61 | 2.13/32" | 45,05 | 201130A01620 1130A 016 | I | 16 | 5/8" | 21,60 | 201130A06120 1130A 061 | I | 61 | 2.13/32" | 35,95 | ||
| 201130016520 1130 0165 | I 16,5 | 21/32" | 30,20 | 20113006220 1130 062 | I | 62 | 2.7/16" | 45,05 | 201130A016520 1130A 0165 | I 16,5 | 21/32" | 21,60 | 201130A06220 1130A 062 | I | 62 | 2.7/16" | 35,95 | ||||
| 20113001720 1130 017 | I | 17 | 43/64" | 30,20 | 20113006320 1130 063 | I | 63 | 2.31/64" | 45,05 | 201130A01720 1130A 017 | I | 17 | 43/64" | 21,60 | 201130A06320 1130A 063 | I | 63 | 2.31/64" | 35,95 | ||
| 20113001820 1130 018 | I | 18 | 45/64" | 30,20 | 20113006420 1130 064 | I | 64 | 2.33/64" | 45,05 | 201130A01820 1130A 018 | I | 18 | 45/64" | 21,60 | 201130A06420 1130A 064 | I | 64 | 2.33/64" | 35,95 | ||
| 201130018520 1130 0185 | I 18,5 | 47/64" | 30,20 | 20113006520 1130 065 | I | 65 | 2.9/16" | 45,05 | 201130A018520 1130A 0185 | I 18,5 | 47/64" | 21,60 | 201130A06520 1130A 065 | I | 65 | 2.9/16" | 35,95 | ||||
| 20113001920 1130 019 | I | 19 | 3/4" | 30,20 | 20113006620 1130 066 | I | 66 | 2.19/32" | 51,40 | 201130A01920 1130A 019 | I | 19 | 3/4" | 21,60 | 201130A06620 1130A 066 | I | 66 | 2.19/32" | 42,30 | ||
| 20113002020 1130 020 | I | 20 | 25/32" | 30,20 | 20113006720 1130 067 | I | 67 | 2.41/64" | 51,40 | 201130A02020 1130A 020 | I | 20 | 25/32" | 21,60 | 201130A06720 1130A 067 | I | 67 | 2.41/64" | 42,30 | ||
| 201130020520 1130 0205 | I 20,5 | 13/16" | 30,20 | 20113006820 1130 068 | I | 68 | 2.43/64" | 51,40 | 201130A020520 1130A 0205 | I 20,5 | 13/16" | 21,60 | 201130A06820 1130A 068 | I | 68 | 2.43/64" | 42,30 | ||||
| 20113002120 1130 021 | I | 21 | 53/64" | 30,20 | 20113006920 1130 069 | I | 69 | 2.23/32" | 51,40 | 201130A02120 1130A 021 | I | 21 | 53/64" | 21,60 | 201130A06920 1130A 069 | I | 69 | 2.23/32" | 6 42,30 | ||
| 20113002220 1130 022 | I | 22 | 55/64" | 30,20 | 20113007020 1130 070 | I | 70 | 2.3/4" | 51,40 | 201130A02220 1130A 022 | I | 22 | 55/64" | 21,60 | 201130A07020 1130A 070 | I | 70 | 2.3/4" | 42,30 | ||
| 201130022520 1130 0225 | I 22,5 | 57/64" | 30,20 | 20113007120 1130 071 | I | 71 | 2.51/64" | 54,95 | 201130A022520 1130A 0225 | I 22,5 | 57/64" | 21,60 | 201130A07120 1130A 071 | I | 71 | 2.51/64" | 45,80 | ||||
| 20113002320 1130 023 | I | 23 | 29/32" | 30,20 | 20113007220 1130 072 | I | 72 | 2.53/64" | 54,95 | 201130A02320 1130A 023 | I | 23 | 29/32" | 21,60 | 201130A07220 1130A 072 | I | 72 | 2.53/64" | 45,80 | ||
| 20113002420 1130 024 | I | 24 | 15/16" | 30,20 | 20113007320 1130 073 | I | 73 | 2.7/8" | 54,95 | 201130A02420 1130A 024 | I | 24 | 15/16" | 21,60 | 201130A07320 1130A 073 | I | 73 | 2.7/8" | 45,80 | ||
| 20113002520 1130 025 | I | 25 | 63/64" | 30,20 | 20113007420 1130 074 | I | 74 | 2.29/32" | 54,95 | 201130A02520 1130A 025 | I | 25 | 63/64" | 21,60 | 201130A07420 1130A 074 | I | 74 | 2.29/32" | 45,80 | ||
| 201130025520 1130 0255 | I 25,5 | 1" | 30,20 | 20113007520 1130 075 | I | 75 | 2.61/64" | 54,95 | 201130A025520 1130A 0255 | I 25,5 | 1" | 21,60 | 201130A07520 1130A 075 | I | 75 | 2.61/64" | 45,80 | ||||
| 20113002620 1130 026 | I | 26 | 1.1/32" | 30,20 | 20113007620 1130 076 | I | 76 | 2.63/64" | 60,00 | 201130A02620 1130A 026 | I | 26 | 1.1/32" | 21,60 | 201130A07620 1130A 076 | I | 76 | 2.63/64" | 50,85 | ||
| 20113002720 1130 027 | I | 27 | 1.1/16" | 30,20 | 20113007720 1130 077 | I | 77 | 3.1/32" | 60,00 | 201130A02720 1130A 027 | I | 27 | 1.1/16" | 21,60 | 201130A07720 1130A 077 | I | 77 | 3.1/32" | 50,85 | ||
| 20113002820 1130 028 | I | 28 | 1.7/64" | 30,20 | 20113007820 1130 078 | I | 78 | 3.5/64" | 60,00 | 201130A02820 1130A 028 | I | 28 | 1.7/64" | 21,60 | 201130A07820 1130A 078 | I | 78 | 3.5/64" | 50,85 | ||
| 20 1130 029201130029 | I | 29 | 1.9/64" | 30,20 | 20113007920 1130 079 | I | 79 | 3.7/64" | 60,00 | 20 1130A 029201130A029 | I | 29 | 1.9/64" | 21,60 | 201130A07920 1130A 079 | I | 79 | 3.7/64" | 50,85 | ||
| 20113003020 1130 030 | I | 30 | 1.3/16" | 30,20 | 20113008020 1130 080 | I | 80 | 3.5/32" | 60,00 | 201130A03020 1130A 030 | I | 30 | 1.3/16" | 21,60 | 201130A08020 1130A 080 | I | 80 | 3.5/32" | 50,85 | ||
| 201130030520 1130 0305 | I 30,5 | 1.13/64" | 30,30 | 20113008120 1130 081 | I | 81 | 3.3/16" | 67,00 | 201130A030520 1130A 0305 | I 30,5 | 1.13/64" | 21,65 | 201130A08120 1130A 081 | I | 81 | 3.3/16" | 7 57,90 | ||||
| 20113003120 1130 031 | I | 31 | 1.7/32" | 30,30 | 20113008220 1130 082 | I | 82 | 3.15/64" | 67,00 | 201130A03120 1130A 031 | I | 31 | 1.7/32" | 21,65 | 201130A08220 1130A 082 | I | 82 | 3.15/64" | 57,90 | ||
| 20113003220 1130 032 | I | 32 | 1.17/64" | 30,30 | 20113008320 1130 083 | I | 83 | 3.17/64" | 67,00 | 201130A03220 1130A 032 | I | 32 | 1.17/64" | 21,65 | 201130A08320 1130A 083 | I | 83 | 3.17/64" | 57,90 | ||
| 201130032520 1130 0325 | I 32,5 | 1.9/32" | 30,30 | 20113008420 1130 084 | I | 84 | 3.5/16" | 67,00 | 201130A032520 1130A 0325 | I 32,5 | 1.9/32" | 21,65 | 201130A08420 1130A 084 | I | 84 | 3.5/16" | MACH 57,90 | ||||
| 20113003320 1130 033 | I | 33 | 1.19/64" | 30,30 | 20113008520 1130 085 | I | 85 | 3.11/32" | 67,00 | 201130A03320 1130A 033 | I | 33 | 1.19/64" | 21,65 | 201130A08520 1130A 085 | I | 85 | 3.11/32" | IN 57,90 | ||
| 20113003420 1130 034 | I | 34 | 1.11/32" | 30,30 | 20113008620 1130 086 | I | 86 | 3.25/64" | 68,65 | 201130A03420 1130A 034 | I | 34 | 1.11/32" | 21,65 | 201130A08620 1130A 086 | I | 86 | 3.25/64" | 59,55 | ||
| 20113003520 1130 035 | I | 35 | 1.3/8" | 30,30 | 20113008720 1130 087 | I | 87 | 3.27/64" | 68,65 | 201130A03520 1130A 035 | I | 35 | 1.3/8" | 21,65 | 201130A08720 1130A 087 | I | 87 | 3.27/64" | 59,55 | ||
| 20113003620 1130 036 | I | 36 | 1.27/64" | 30,30 | 20113008820 1130 088 | I | 88 | 3.15/32" | 68,65 | 201130A03620 1130A 036 | I | 36 | 1.27/64" | 21,65 | 201130A08820 1130A 088 | I | 88 | 3.15/32" | 59,55 | ||
| 20113003720 1130 037 | I | 37 | 1.29/64" | 30,30 | 20113008920 1130 089 | I | 89 | 3.1/2" | 68,65 | 201130A03720 1130A 037 | I | 37 | 1.29/64" | 21,65 | 201130A08920 1130A 089 | I | 89 | 3.1/2" | 59,55 | ||
| 20113003820 1130 038 | I | 38 | 1.1/2" | 30,30 | 20113009020 1130 090 | I | 90 | 3.35/64" | 68,65 | 201130A03820 1130A 038 | I | 38 | 1.1/2" | 21,65 | 201130A09020 1130A 090 | I | 90 | 3.35/64" | 59,55 | ||
| 201130038520 1130 0385 | I 38,5 | 1.33/64" | 30,30 | 20113009120 1130 091 | I | 91 | 3.37/64" | 72,50 | 201130A038520 1130A 0385 | I 38,5 | 1.33/64" | 21,65 | 201130A09120 1130A 091 | I | 91 | 3.37/64" | 63,35 | ||||
| 20113003920 1130 039 | I | 39 | 1.17/32" | 30,30 | 20113009220 1130 092 | I | 92 | 3.5/8" | 72,50 | 201130A03920 1130A 039 | I | 39 | 1.17/32" | 21,65 | 201130A09220 1130A 092 | I | 92 | 3.5/8" | 8 63,35 | ||
| 20113004020 1130 040 | I | 40 | 1.37/64" | 30,30 | 20113009320 1130 093 | I | 93 | 3.21/32" | 72,50 | 201130A04020 1130A 040 | I | 40 | 1.37/64" | 21,65 | 201130A09320 1130A 093 | I | 93 | 3.21/32" | 63,35 | ||
| 201130040520 1130 0405 | I 40,5 | 1.19/32" | 33,15 | 20113009420 1130 094 | I | 94 | 3.45/64" | 72,50 | 201130A040520 1130A 0405 | I 40,5 | 1.19/32" | 24,50 | 201130A09420 1130A 094 | I | 94 | 3.45/64" | 63,35 | ||||
| 20113004120 1130 041 | I | *41 | 1.39/64" | 33,15 | 20113009520 1130 095 | I | 95 | 3.47/64" | 72,50 | 201130A04120 1130A 041 | I | *41 | 1.39/64" | 24,50 | 201130A09520 1130A 095 | I | 95 | 3.47/64" | 63,35 | ||
| 20113004220 1130 042 | I | 42 | 1.21/32" | 33,15 | 20113009620 1130 096 | I | 96 | 3.25/32" | 73,50 | 201130A04220 1130A 042 | I | 42 | 1.21/32" | 24,50 | 201130A09620 1130A 096 | I | 96 | 3.25/32" | 64,35 | ||
| 20113004320 1130 043 | I | 43 | 1.11/16" | 33,15 | 20113009720 1130 097 | I | 97 | 3.13/16" | 73,50 | 201130A04320 1130A 043 | I | 43 | 1.11/16" | 24,50 | 201130A09720 1130A 097 | I | 97 | 3.13/16" | 64,35 | ||
| 20113004420 1130 044 | I | 44 | 1.47/64" | 33,20 | 20113009820 1130 098 | I | 98 | 3.55/64" | 73,50 | 201130A04420 1130A 044 | I | 44 | 1.47/64" | 24,55 | 201130A09820 1130A 098 | I | 98 | 3.55/64" | OIL 64,35 | ||
| 20113004520 1130 045 | I | 45 | 1.49/64" | 33,20 | 20113009920 1130 099 | I | 99 | 3.57/64" | 73,50 | 201130A04520 1130A 045 | I | 45 | 1.49/64" | 24,55 | 201130A09920 1130A 099 | I | 99 | 3.57/64" | 64,35 | ||
| 20113004620 1130 046 | I | 46 | 1.13/16" | 33,80 | 20113010020 1130 100 | I | 100 | 3.15/16" | 73,50 | 201130A04620 1130A 046 | I | 46 | 1.13/16" | 25,15 | 201130A10020 1130A 100 | I | 100 | 3.15/16" | 64,35 | ||
| 20113004720 1130 047 | I | 47 | 1.27/32" | 33,80 | 20113010520 1130 105 | I | 105 | 4.9/64" | 82,60 | 201130A04720 1130A 047 | I | 47 | 1.27/32" | 25,15 | 201130A10520 1130A 105 | I | 105 | 4.9/64" | 68,95 | ||
| 20113004820 1130 048 | I | 48 | 1.57/64" | 33,80 | 20113011020 1130 110 | I | 110 | 4.21/64" | 97,05 | 201130A04820 1130A 048 | I | 48 | 1.57/64" | 25,15 | 201130A11020 1130A 110 | I | 110 | 4.21/64" | 83,40 | ||
| 20113004920 1130 049 | I | 49 | 1.59/64" | 33,80 | 20113011520 1130 115 | I | 115 | 4.17/32" | 113,60 | 201130A04920 1130A 049 | I | 49 | 1.59/64" | 25,15 | 201130A11520 1130A 115 | I | 115 | 4.17/32" | 9 99,95 | ||
| 20113005020 1130 050 | I | 50 | 1.31/32" | 33,80 | 20113012020 1130 120 | I | 120 | 4.23/32" | 128,65 | 201130A05020 1130A 050 | I | 50 | 1.31/32" | 25,15 | 201130A12020 1130A 120 | I | 120 | 4.23/32" | 114,95 | ||
| 201130050520 1130 0505 | I 50,5 | 1.63/64" | 33,80 | 20113012520 1130 125 | I | 125 | 4.59/64" | 142,75 | 201130A050520 1130A 0505 | I 50,5 | 1.63/64" | 25,15 | 201130A12520 1130A 125 | I | 125 | 4.59/64" | 129,10 | ||||
| 20113005120 1130 051 | I | 51 | 2.1/64" | 33,80 | 20113013020 1130 130 | I | 130 | 5.1/8" | 156,65 | 201130A05120 1130A 051 | I | 51 | 2.1/64" | 25,15 | 201130A13020 1130A 130 | I | 130 | 5.1/8" | 143,00 | ||
| 20113005220 1130 052 | I | 52 | 2.3/64" | 33,80 | 20113013520 1130 135 | I | 135 | 5.5/16" | 172,10 | 201130A05220 1130A 052 | I | 52 | 2.3/64" | 25,15 | 201130A13520 1130A 135 | I | 135 | 5.5/16" | 158,45 | ||
| 20113005320 1130 053 | I | 53 | 2.3/32" | 34,15 | 20113014020 1130 140 | I | 140 | 5.33/64" | 187,85 | 201130A05320 1130A 053 | I | 53 | 2.3/32" | 25,50 | 201130A14020 1130A 140 | I | 140 | 5.33/64" | 174,20 | ||
| 20113005420 1130 054 | I | 54 | 2.1/8" | 34,15 | 20113014520 1130 145 | I | 145 | 5.45/64" | 205,10 | 201130A05420 1130A 054 | I | 54 | 2.1/8" | 25,50 | 201130A14520 1130A 145 | I | 145 | 5.45/64" | 191,45 | ||
| 20113005520 1130 055 | I | 55 | 2.11/64" | 34,15 | 20113015020 1130 150 | I | 150 | 5.29/32" | 222,35 | 201130A05520 1130A 055 | I | 55 | 2.11/64" | 25,50 | 201130A15020 1130A 150 | I | 150 | 5.29/32" | 208,70 | ||
| 20113005620 1130 056 | I | 56 | 2.13/64" | 40,80 | 201130A05620 1130A 056 | I | 56 | 2.13/64" | 32,20 | ||||||||||||
| 20113005720 1130 057 | I | 57 | 2.1/4" | 40,80 | 201130A05720 1130A 057 | I | 57 | 2.1/4" | 32,20 | ||||||||||||
| 20113005820 1130 058 | I | 58 | 2.9/32" | 40,80 | 201130A05820 1130A 058 | I | 58 | 2.9/32" | 32,20 | ||||||||||||
| Параметры резки | Видео | 10 | |||||||||||||||||||
| Количество зубьев: 14-15=4 / 16-35=6 / 36-65=9 /66-100=12 / 101-129=15 / 130-150=18 ∙ * Начиная с 41 мм, рекомендуется | Cutting data | Movie |
использование конуса Морзе или переходника для корончатого сверла ∙ Внимание! Размеры в дюймах не соответствуют точно значениям диаметров, указанных в мм. Number of teeth: 14-15=4 / 16-35=6 / 36-65=9 /66-100=12 / 101-129=15 / 130-150=18 ∙ * From 41 mm we recommend the use of Index morse tapers or annular cutter adapters. ∙ Attention: The inch sizes do not correspond exactly to the mm diameters.
