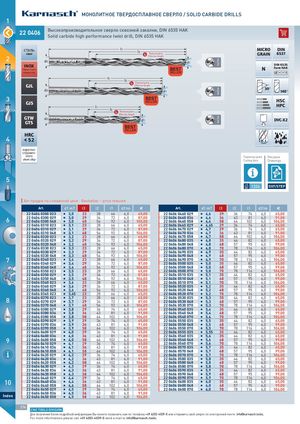

Основной каталог Karnasch 2021 - страница 268
Навигация
Каталог стоматологического инструмента Karnasch 2021
Каталог микроинструмента Karnasch 2021
Каталог магнитных станков Karnasch 2021
Каталог прямошлифовальные машины Karnasch 2021
22 0406220406 Высокопроизводительное сверло сквозной закалки, DIN 6535 HAK
Solid carbide high performance twist drill, DIN 6535 HAK
| сталь | l1 | MICRO | DIN | |||||
| l2 | GRAIN | 6537 | ||||||
| steel | Полезная длина | |||||||
| 2 | Effective length | |||||||
| d | Z |
2 d 1 2
INOX DIN 6535 N Form HAK Нерж сталь STAINLESS STEEL
l 1 l2 Полезная длина GJL Effective length
| d | Z | 30° | ||
| 2 | d 1 | 2 | 140° |
3 HSC GJS HPC l1
l 2 Полезная длина Effective length Z GTW d
2 d 1 2 DVC-X2
GTS 4 HRC < 52 коротко-
стружеч-
| ного | Параметры резки | Рисунки |
| short chip | Cutting data | Drawings |
5 1324 DXF/STEP
Хит продаж по сниженной цене · Bestseller – price reduced
| Art. | d1 m7 | l3 | l2 | l1 | d2 h6 | € | Art. | d1 m7 | l3 | l2 | l1 | d2 h6 | € |
| 2204060300023 2 6 0 | I 3,0 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060460029 2 6 0 | I 4,6 | 29 | 36 | 74 | 6,0 | 65,00 |
| 2204060300029 2 6 0 | I 3,0 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060460036 2 6 0 | I 4,6 | 36 | 43 | 81 | 6,0 | 91,00 |
| 2204060300048 2 6 0 | I 3,0 | 48 | 54 | 92 | 6,0 | 105,00 | 2204060460058 2 6 0 | I 4,6 | 58 | 64 | 102 | 6,0 | 106,00 |
| 2204060310023 2 6 0 | I 3,1 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060465029 2 6 0 | I 4,65 | 29 | 36 | 74 | 6,0 | 65,00 |
| 2204060310029 2 6 0 | I 3,1 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060470029 2 6 0 | I 4,7 | 29 | 36 | 74 | 6,0 | 65,00 |
| 2204060310048 2 6 0 | I 3,1 | 48 | 54 | 92 | 6,0 | 106,00 | 2204060470036 2 6 0 | I 4,7 | 36 | 43 | 81 | 6,0 | 91,00 |
| 2204060320023 2 6 0 | I 3,2 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060470058 2 6 0 | I 4,7 | 58 | 64 | 102 | 6,0 | 106,00 |
| 2204060320029 2 6 0 | I 3,2 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060480035 2 6 0 | I 4,8 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060320048 2 6 0 | I 3,2 | 48 | 54 | 92 | 6,0 | 106,00 | 2204060480048 2 6 0 | I 4,8 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060330023 2 6 0 | I 3,3 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060480070 2 6 0 | I 4,8 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060330029 2 6 0 | I 3,3 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060490035 2 6 0 | I 4,9 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060330048 2 6 0 | I 3,3 | 48 | 54 | 92 | 6,0 | 106,00 | 2204060490048 2 6 0 | I 4,9 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060340023 2 6 0 | I 3,4 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060490070 2 6 0 | I 4,9 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060340029 2 6 0 | I 3,4 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060500035 2 6 0 | I 5,0 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060340048 2 6 0 | I 3,4 | 48 | 54 | 92 | 6,0 | 106,00 | 2204060500048 2 6 0 | I 5,0 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060350023 2 6 0 | I 3,5 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060500070 2 6 0 | I 5,0 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060350029 2 6 0 | I 3,5 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060510035 2 6 0 | I 5,1 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060350048 2 6 0 | I 3,5 | 48 | 54 | 92 | 6,0 | 106,00 | 2204060510048 2 6 0 | I 5,1 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060360023 2 6 0 | I 3,6 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060510070 2 6 0 | I 5,1 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060360029 2 6 0 | I 3,6 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060520035 2 6 0 | I 5,2 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060360048 2 6 0 | I 3,6 | 48 | 54 | 92 | 6,0 | 106,00 | 2204060520048 2 6 0 | I 5,2 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060365023 2 6 0 | I 3,65 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060520070 2 6 0 | I 5,2 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060370023 2 6 0 | I 3,7 | 23 | 28 | 66 | 6,0 | 65,00 | 2204060530035 2 6 0 | I 5,3 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060370029 2 6 0 | I 3,7 | 29 | 34 | 72 | 6,0 | 87,00 | 2204060530048 2 6 0 | I 5,3 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060370048 2 6 0 | I 3,7 | 48 | 54 | 92 | 6,0 | 106,00 | 2204060530070 2 6 0 | I 5,3 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060380029 2 6 0 | I 3,8 | 29 | 36 | 74 | 6,0 | 65,00 | 2204060540035 2 6 0 | I 5,4 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060380036 2 6 0 | I 3,8 | 36 | 43 | 81 | 6,0 | 91,00 | 2204060540048 2 6 0 | I 5,4 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060380058 2 6 0 | I 3,8 | 58 | 64 | 102 | 6,0 | 106,00 | 2204060540070 2 6 0 | I 5,4 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060390029 2 6 0 | I 3,9 | 29 | 36 | 74 | 6,0 | 65,00 | 2204060550035 2 6 0 | I 5,5 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060390036 2 6 0 | I 3,9 | 36 | 43 | 81 | 6,0 | 91,00 | 2204060550048 2 6 0 | I 5,5 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060390058 2 6 0 | I 3,9 | 58 | 64 | 102 | 6,0 | 106,00 | 2204060550070 2 6 0 | I 5,5 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060400029 2 6 0 | I 4,0 | 29 | 36 | 74 | 6,0 | 65,00 | 2204060555035 2 6 0 | I 5,55 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060400036 2 6 0 | I 4,0 | 36 | 43 | 81 | 6,0 | 91,00 | 2204060560035 2 6 0 | I 5,6 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060400058 2 6 0 | I 4,0 | 58 | 64 | 102 | 6,0 | 106,00 | 2204060560048 2 6 0 | I 5,6 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060410029 2 6 0 | I 4,1 | 29 | 36 | 74 | 6,0 | 65,00 | 2204060560070 2 6 0 | I 5,6 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060410036 2 6 0 | I 41 | 36 | 43 | 81 | 60 | 9100 | 2204060570035 2 6 0 | I 57 | 35 | 44 | 82 | 60 | 6500 |
| 2204060410058 2 6 0 | , I 4,1 | 58 | 64 | 102 | , 6,0 | , 106,00 | 2204060570048 2 6 0 | , I 5,7 | 48 | 57 | 95 | , 6,0 | , 99,00 |
| 2204060420029 2 6 0 | I 42 | 29 | 36 | 74 | 60 | 6500 | 2204060570070 2 6 0 | I 57 | 70 | 78 | 116 | 60 | 10600 |
| 2204060420036 2 6 0 | , I 4,2 | 36 | 43 | 81 | , 6,0 | , 91,00 | 2204060580035 2 6 0 | , I 5,8 | 35 | 44 | 82 | , 6,0 | , 65,00 |
| 2204060420058 2 6 0 | I 42 | 58 | 64 | 102 | 60 | 10600 | 2204060580048 2 6 0 | I 58 | 48 | 57 | 95 | 60 | 9900 |
| 2204060430029 2 6 0 | , I 4,3 | 29 | 36 | 74 | , 6,0 | , 65,00 | 2204060580070 2 6 0 | , I 5,8 | 70 | 78 | 116 | , 6,0 | , 106,00 |
| 2204060430036 2 6 0 | I 4,3 | 36 | 43 | 81 | 6,0 | 91,00 | 2204060590035 2 6 0 | I 5,9 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060430058 2 6 0 | I 4,3 | 58 | 64 | 102 | 6,0 | 106,00 | 2204060590048 2 6 0 | I 5,9 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060440029 2 6 0 | I 4,4 | 29 | 36 | 74 | 6,0 | 65,00 | 2204060590070 2 6 0 | I 5,9 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060440036 2 6 0 | I 4,4 | 36 | 43 | 81 | 6,0 | 91,00 | 2204060600035 2 6 0 | I 6,0 | 35 | 44 | 82 | 6,0 | 65,00 |
| 2204060440058 2 6 0 | I 4,4 | 58 | 64 | 102 | 6,0 | 106,00 | 2204060600048 2 6 0 | I 6,0 | 48 | 57 | 95 | 6,0 | 99,00 |
| 2204060450029 2 6 0 | I 4,5 | 29 | 36 | 74 | 6,0 | 65,00 | 2204060600070 2 6 0 | I 6,0 | 70 | 78 | 116 | 6,0 | 106,00 |
| 2204060450036 2 6 0 | I 4,5 | 36 | 43 | 81 | 6,0 | 91,00 | |||||||
| 2204060450058 2 6 0 | I 4,5 | 58 | 64 | 102 | 6,0 | 106,00 |
