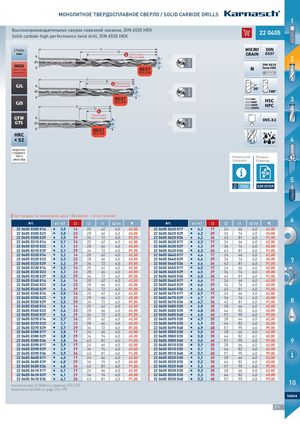

Высокопроизводительное сверло сквозной закалки, DIN 6535 HEK 22 0405220405
Solid carbide high performance twist drill, DIN 6535 HEK
| сталь | l 1 | MICRO | DIN | |
| l 2 | GRAIN | 6537 |
| steel | Полезная длина | 2 | ||
| Effective length | ||||
| d | Z |
2 d1 2
INOX DIN 6535 N Form HEK Нерж сталь STAINLESS STEEL
l1 l 2 Полезная длина GJL Effective length Z 30°
d 2 d 140°
1 2 3 HSC GJS HPC
l1 l 2 GTW Полезная длина
| Effective length | Z | DVC-X2 | ||
| GTS | d |
| 2 | d 1 | 2 | ||
| HRC | ||||
| < 52 | 4 | |||
| коротко- | ||||
| стружеч- |
| ного | Параметры резки | Рисунки |
| short chip | Cutting data | Drawings |
5 1324 DXF/STEP
Хит продаж по сниженной цене · Bestseller – price reduced 6
| Art. | d1 m7 | l3 | l2 | l1 | d2 h6 | € | Art. | d1 m7 | l3 | l2 | l1 | d2 h6 | € | |
| 2204050300014 2 5 0 | I 3,0 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050420017 2 5 0 | I 4,2 | 17 | 24 | 66 | 6,0 | 62,00 | |
| 2204050300023 2 5 0 | I 3,0 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050420029 2 5 0 | I 4,2 | 29 | 36 | 74 | 6,0 | 65,00 | |
| 2204050300029 2 5 0 | I 3,0 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050420036 2 5 0 | I 4,2 | 36 | 43 | 81 | 6,0 | 91,00 | |
| 2204050310014 2 5 0 | I 3,1 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050430017 2 5 0 | I 4,3 | 17 | 24 | 66 | 6,0 | 62,00 | |
| 2204050310023 2 5 0 | I 3,1 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050430029 2 5 0 | I 4,3 | 29 | 36 | 74 | 6,0 | 65,00 | |
| 2204050310029 2 5 0 | I 3,1 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050430036 2 5 0 | I 4,3 | 36 | 43 | 81 | 6,0 | 91,00 | |
| 2204050320014 2 5 0 | I 3,2 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050440017 2 5 0 | I 4,4 | 17 | 24 | 66 | 6,0 | 62,00 | |
| 2204050320023 2 5 0 | I 3,2 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050440029 2 5 0 | I 4,4 | 29 | 36 | 74 | 6,0 | 65,00 | 7 |
| 2204050320029 2 5 0 | I 3,2 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050440036 2 5 0 | I 4,4 | 36 | 43 | 81 | 6,0 | 91,00 | |
| 2204050330014 2 5 0 | I 3,3 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050450017 2 5 0 | I 4,5 | 17 | 24 | 66 | 6,0 | 62,00 | M A |
| 2204050330023 2 5 0 | I 3,3 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050450029 2 5 0 | I 4,5 | 29 | 36 | 74 | 6,0 | 65,00 | C H I |
| 2204050330029 2 5 0 | I 3,3 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050450036 2 5 0 | I 4,5 | 36 | 43 | 81 | 6,0 | 91,00 | N E S |
| 2204050340014 2 5 0 | I 3,4 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050460017 2 5 0 | I 4,6 | 17 | 24 | 66 | 6,0 | 62,00 | |
| 2204050340023 2 5 0 | I 3,4 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050460029 2 5 0 | I 4,6 | 29 | 36 | 74 | 6,0 | 65,00 | |
| 2204050340029 2 5 0 | I 3,4 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050460036 2 5 0 | I 4,6 | 36 | 43 | 81 | 6,0 | 91,00 | |
| 2204050350014 2 5 0 | I 3,5 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050470017 2 5 0 | I 4,7 | 17 | 24 | 66 | 6,0 | 62,00 | |
| 2204050350023 2 5 0 | I 3,5 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050470029 2 5 0 | I 4,7 | 29 | 36 | 74 | 6,0 | 65,00 | |
| 2204050350029 2 5 0 | I 3,5 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050470036 2 5 0 | I 4,7 | 36 | 43 | 81 | 6,0 | 91,00 | 8 |
| 2204050360014 2 5 0 | I 3,6 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050480020 2 5 0 | I 4,8 | 20 | 28 | 66 | 6,0 | 62,00 | |
| 2204050360023 2 5 0 | I 3,6 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050480035 2 5 0 | I 4,8 | 35 | 44 | 82 | 6,0 | 65,00 | |
| 2204050360029 2 5 0 | I 3,6 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050480048 2 5 0 | I 4,8 | 48 | 57 | 95 | 6,0 | 99,00 | OIL |
| 2204050370014 2 5 0 | I 3,7 | 14 | 20 | 62 | 6,0 | 62,00 | 2204050490020 2 5 0 | I 4,9 | 20 | 28 | 66 | 6,0 | 62,00 | |
| 2204050370023 2 5 0 | I 3,7 | 23 | 28 | 66 | 6,0 | 65,00 | 2204050490035 2 5 0 | I 4,9 | 35 | 44 | 82 | 6,0 | 65,00 | |
| 2204050370029 2 5 0 | I 3,7 | 29 | 34 | 72 | 6,0 | 87,00 | 2204050490048 2 5 0 | I 4,9 | 48 | 57 | 95 | 6,0 | 99,00 | |
| 2204050380017 2 5 0 | I 3,8 | 17 | 24 | 66 | 6,0 | 62,00 | 2204050500020 2 5 0 | I 5,0 | 20 | 28 | 66 | 6,0 | 62,00 | |
| 2204050380029 2 5 0 | I 3,8 | 29 | 36 | 74 | 6,0 | 65,00 | 2204050500035 2 5 0 | I 5,0 | 35 | 44 | 82 | 6,0 | 65,00 | |
| 2204050380036 2 5 0 | I 3,8 | 36 | 43 | 81 | 6,0 | 91,00 | 2204050500048 2 5 0 | I 5,0 | 48 | 57 | 95 | 6,0 | 99,00 | 9 |
| 2204050390017 2 5 0 | I 3,9 | 17 | 24 | 66 | 6,0 | 62,00 | 2204050510020 2 5 0 | I 5,1 | 20 | 28 | 66 | 6,0 | 62,00 | |
| 2204050390029 2 5 0 | I 3,9 | 29 | 36 | 74 | 6,0 | 65,00 | 2204050510035 2 5 0 | I 5,1 | 35 | 44 | 82 | 6,0 | 65,00 | |
| 2204050390036 2 5 0 | I 3,9 | 36 | 43 | 81 | 6,0 | 91,00 | 2204050510048 2 5 0 | I 5,1 | 48 | 57 | 95 | 6,0 | 99,00 | |
| 2204050400017 2 5 0 | I 4,0 | 17 | 24 | 66 | 6,0 | 62,00 | 2204050520020 2 5 0 | I 5,2 | 20 | 28 | 66 | 6,0 | 62,00 | |
| 2204050400029 2 5 0 | I 4,0 | 29 | 36 | 74 | 6,0 | 65,00 | 2204050520035 2 5 0 | I 5,2 | 35 | 44 | 82 | 6,0 | 65,00 | |
| 2204050400036 2 5 0 | I 4,0 | 36 | 43 | 81 | 6,0 | 91,00 | 2204050520048 2 5 0 | I 5,2 | 48 | 57 | 95 | 6,0 | 99,00 | |
| 2204050410017 2 5 0 | I 4,1 | 17 | 24 | 66 | 6,0 | 62,00 | 2204050530020 2 5 0 | I 5,3 | 20 | 28 | 66 | 6,0 | 62,00 | |
| 2204050410029 2 5 0 | I 4,1 | 29 | 36 | 74 | 6,0 | 65,00 | 2204050530035 2 5 0 | I 5,3 | 35 | 44 | 82 | 6,0 | 65,00 | |
| 2204050410036 2 5 0 | I 4,1 | 36 | 43 | 81 | 6,0 | 91,00 | 2204050530048 2 5 0 | I 5,3 | 48 | 57 | 95 | 6,0 | 99,00 | |
| 10 |
Альтернатива 22 0406 на странице 274-275 Alternative 22 0406 on page 274-275
