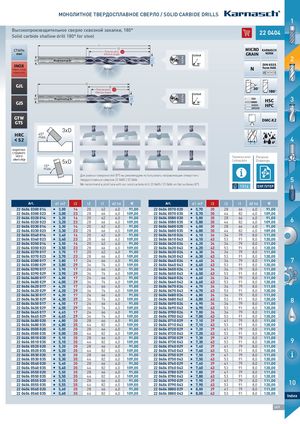

Высокопроизводительное сверло сквозной закалки, 180° 22 0404220404
Solid carbide shallow drill 180° for steel
l1
| сталь | | l2 | MICRO | |
| Полезная длина | | | KARNASCH |
| | l3 | GRAIN | NORM |
| steel | Effective length | | | |
INOX 30° DIN 6535
| | Gelapt | | N | Form HAK |
| Нерж сталь | | | | | |
| STAINLESS STEEL | | | | | |
| GJL | l1 | | | | |
| | | l2 | 30° | |
| Полезная длина | l3 | 180° |
| Effective length | | |
| | | Z | 0,05xØ | | 3 |
| d2 | d1 | 2 | f | HSC | |
| GJS | | | | 30° | HPC | |
Gelapt GTW GTS DMC-X2 3xD
HRC 45°
| < 52 | max. | 4 |
| коротко- | | |
| стружеч- | | |
| ного | | Параметры резки | Рисунки |
| short chip | 5xD | Cutting data | Drawings |
15° max. Для ровных поверхностей (0°) мы рекомендуем использовать направляющее отверстие с 5 твердосплавным сверлом 22 0405 / 22 0406.
We recommend a pilot hole with our solid carbide drill 22 0405 / 22 0406 on flat surfaces (0°). 1314 DXF/STEP
| Art. | d1 m7 | l3 | l2 | l1 | d2 h6 | € | Art. | d1 m7 | l3 | l2 | l1 | d2 h6 | € | |
| 2204040300014 2 4 0 | I 3,00 | 14 | 20 | 62 | 6,0 | 91,00 | 2204040570020 2 4 0 | I 5,70 | 20 | 28 | 66 | 6,0 | 91,00 | |
| 2204040300023 2 4 0 | I 3,00 | 23 | 28 | 66 | 60 | 109,00 | 2204040570035 2 4 0 | I 5,70 | 35 | 44 | 82 | 60 | 109,00 | |
| 2204040320014 2 4 0 | I 3,20 | 14 | 20 | 62 | , 6,0 | 91,00 | 2204040580020 2 4 0 | I 5,80 | 20 | 28 | 66 | , 6,0 | 91,00 | |
| 2204040320023 2 4 0 | I 3,20 | 23 | 28 | 66 | 6,0 | 109,00 | 2204040580035 2 4 0 | I 5,80 | 35 | 44 | 82 | 6,0 | 109,00 | 6 |
| 2204040330014 2 4 0 | I 3,30 | 14 | 20 | 62 | 6,0 | 91,00 | 2204040600020 2 4 0 | I 6,00 | 20 | 28 | 66 | 6,0 | 91,00 | |
| 2204040330023 2 4 0 | I 3,30 | 23 | 28 | 66 | 6,0 | 109,00 | 2204040600035 2 4 0 | I 6,00 | 35 | 44 | 82 | 6,0 | 109,00 | |
| 2204040340014 2 4 0 | I 3,40 | 14 | 20 | 62 | 60 | 91,00 | 2204040610024 2 4 0 | I 6,10 | 24 | 34 | 79 | 80 | 111,00 | |
| 2204040340023 2 4 0 | I 3,40 | 23 | 28 | 66 | , 6,0 | 109,00 | 2204040610043 2 4 0 | I 6,10 | 43 | 53 | 91 | , 8,0 | 120,00 | |
| 2204040350014 2 4 0 | I 3,50 | 14 | 20 | 62 | 6,0 | 91,00 | 2204040620024 2 4 0 | I 6,20 | 24 | 34 | 79 | 8,0 | 111,00 | |
| 2204040350023 2 4 0 | I 3,50 | 23 | 28 | 66 | 6,0 | 109,00 | 2204040620043 2 4 0 | I 6,20 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040370017 2 4 0 | I 3,70 | 17 | 20 | 62 | 6,0 | 91,00 | 2204040630024 2 4 0 | I 6,30 | 24 | 34 | 79 | 8,0 | 111,00 | |
| 2204040370023 2 4 0 | I 3,70 | 23 | 28 | 66 | 6,0 | 109,00 | 2204040630043 2 4 0 | I 6,30 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040380017 2 4 0 | I 3,80 | 17 | 24 | 66 | 6,0 | 91,00 | 2204040640024 2 4 0 | I 6,40 | 24 | 34 | 79 | 8,0 | 111,00 | 7 |
| 2204040380029 2 4 0 | I 3,80 | 29 | 36 | 74 | 6,0 | 109,00 | 2204040640043 2 4 0 | I 6,40 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040390017 2 4 0 | I 3,90 | 17 | 24 | 66 | 6,0 | 91,00 | 2204040650024 2 4 0 | I 6,50 | 24 | 34 | 79 | 8,0 | 111,00 | M A C |
| 2204040390029 2 4 0 | I 3,90 | 29 | 36 | 74 | 6,0 | 109,00 | 2204040650043 2 4 0 | I 6,50 | 43 | 53 | 91 | 8,0 | 120,00 | H I N |
| 2204040400017 2 4 0 | I 4,00 | 17 | 24 | 66 | 6,0 | 91,00 | 2204040660024 2 4 0 | I 6,60 | 24 | 34 | 79 | 8,0 | 111,00 | E S |
| 2204040400029 2 4 0 | I 4,00 | 29 | 36 | 74 | 6,0 | 109,00 | 2204040660043 2 4 0 | I 6,60 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040420017 2 4 0 | I 4,20 | 17 | 24 | 66 | 6,0 | 91,00 | 2204040670024 2 4 0 | I 6,70 | 24 | 34 | 79 | 8,0 | 111,00 | |
| 2204040420029 2 4 0 | I 4,20 | 29 | 36 | 74 | 6,0 | 109,00 | 2204040670043 2 4 0 | I 6,70 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040430017 2 4 0 | I 4,30 | 17 | 24 | 66 | 6,0 | 91,00 | 2204040680024 2 4 0 | I 6,80 | 24 | 34 | 79 | 8,0 | 111,00 | |
| 2204040430029 2 4 0 | I 4,30 | 29 | 36 | 74 | 6,0 | 109,00 | 2204040680043 2 4 0 | I 6,80 | 43 | 53 | 91 | 8,0 | 120,00 | 8 |
| 2204040450017 2 4 0 | I 4,50 | 17 | 24 | 66 | 6,0 | 91,00 | 2204040690024 2 4 0 | I 6,90 | 24 | 34 | 79 | 8,0 | 111,00 | |
| 2204040450029 2 4 0 | I 4,50 | 29 | 36 | 74 | 6,0 | 109,00 | 2204040690043 2 4 0 | I 6,90 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040465017 2 4 0 | I 4,65 | 17 | 24 | 66 | 6,0 | 91,00 | 2204040700024 2 4 0 | I 7,00 | 24 | 34 | 79 | 8,0 | 111,00 | |
| 2204040465029 2 4 0 | I 4,65 | 29 | 36 | 74 | 6,0 | 109,00 | 2204040700043 2 4 0 | I 7,00 | 43 | 53 | 91 | 8,0 | 120,00 | OIL |
| 2204040480020 2 4 0 | I 4,80 | 20 | 28 | 66 | 6,0 | 91,00 | 2204040710029 2 4 0 | I 7,10 | 29 | 41 | 79 | 8,0 | 111,00 | |
| 2204040480035 2 4 0 | I 4,80 | 35 | 44 | 82 | 6,0 | 109,00 | 2204040710043 2 4 0 | I 7,10 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040500020 2 4 0 | I 5,00 | 20 | 28 | 66 | 6,0 | 91,00 | 2204040720029 2 4 0 | I 7,20 | 29 | 41 | 79 | 8,0 | 111,00 | |
| 2204040500035 2 4 0 | I 5,00 | 35 | 44 | 82 | 6,0 | 109,00 | 2204040720043 2 4 0 | I 7,20 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040510020 2 4 0 | I 5,10 | 20 | 28 | 66 | 6,0 | 91,00 | 2204040730029 2 4 0 | I 7,30 | 29 | 41 | 79 | 8,0 | 111,00 | |
| 2204040510035 2 4 0 | I 5,10 | 35 | 44 | 82 | 6,0 | 109,00 | 2204040730043 2 4 0 | I 7,30 | 43 | 53 | 91 | 8,0 | 120,00 | 9 |
| 2204040520020 2 4 0 | I 5,20 | 20 | 28 | 66 | 6,0 | 91,00 | 2204040740029 2 4 0 | I 7,40 | 29 | 41 | 79 | 8,0 | 111,00 | |
| 2204040520035 2 4 0 | I 5,20 | 35 | 44 | 82 | 6,0 | 109,00 | 2204040740043 2 4 0 | I 7,40 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040530020 2 4 0 | I 530 | 20 | 28 | 66 | 60 | 9100 | 2204040750029 2 4 0 | I 750 | 29 | 41 | 79 | 80 | 11100 | |
| 2204040530035 2 4 0 | , I 5,30 | 35 | 44 | 82 | , 6,0 | , 109,00 | 2204040750043 2 4 0 | , I 7,50 | 43 | 53 | 91 | , 8,0 | , 120,00 | |
| 2204040540020 2 4 0 | I 5,40 | 20 | 28 | 66 | 6,0 | 91,00 | 2204040760029 2 4 0 | I 7,60 | 29 | 41 | 79 | 8,0 | 111,00 | |
| 2204040540035 2 4 0 | I 5,40 | 35 | 44 | 82 | 6,0 | 109,00 | 2204040760043 2 4 0 | I 7,60 | 43 | 53 | 91 | 8,0 | 120,00 | |
| 2204040550020 2 4 0 | I 550 | 20 | 28 | 66 | 60 | 9100 | 2204040780029 2 4 0 | I 780 | 29 | 41 | 79 | 80 | 11100 | |
| 2204040550035 2 4 0 | , I 5,50 | 35 | 44 | 82 | , 60 | , 109,00 | 2204040780043 2 4 0 | , I 7,80 | 43 | 53 | 91 | , 80 | , 120,00 | |
| 2204040555020 2 4 0 | I 555 | 20 | 28 | 66 | , 60 | 9100 | 2204040790029 2 4 0 | I 790 | 29 | 41 | 79 | , 80 | 11100 | |
| 2204040555035 2 4 0 | , I 5,55 | 35 | 44 | 82 | , 6,0 | , 109,00 | 2204040790043 2 4 0 | , I 7,90 | 43 | 53 | 91 | , 8,0 | , 120,00 | 10 |
| 2204040560020 2 4 0 | I 5,60 | 20 | 28 | 66 | 6,0 | 91,00 | 2204040800029 2 4 0 | I 8,00 | 29 | 41 | 79 | 8,0 | 111,00 | |
| 2204040560035 2 4 0 | I 5,60 | 35 | 44 | 82 | 6,0 | 109,00 | 2204040800043 2 4 0 | I 8,00 | 43 | 53 | 91 | 8,0 | 120,00 | Index |
