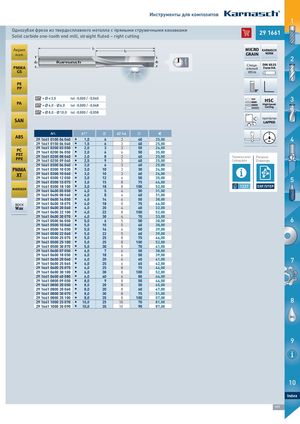

Однозубая фреза из твердосплавного металла с прямыми стружечными канавками 29 1661291661
Solid carbide one-tooth end mill, straight fluted – right cutting
| MICRO GRAIN | KARNASCH NORM | ||
| Z 1 | DIN 6535 | ||
| Специ- альный | Form HA | ||
| SPECIAL Gelapt | |||
| d1=≤ 3,0 t | ol -0,000 / -0,040 | HSC | |
| d1=4,0 -6,0 t | ol -0,000 / -0,048 | High-Speed- Cutting | |
| d1=8,0 -10,0 t | ol -0,000 / -0,058 | ||
| 291661010004040 Art. 29 61 0 04 | d1 l2 I 1,0 4 | d2 h6 l1 € 3 40 25,00 | притёртая |
| 291661015006040 291661020003050 291661020006050 291661020008040 29 61 0 04 29 61 0 05 29 61 0 05 29 61 0 04 | I 1,5 6 I 2,0 3 I 2,0 6 I 2,0 8 | 3 40 25,00 3 50 26,00 6 50 35,00 3 40 25,00 Параметры резки Р | исунки |
| 291661025009040 291661030006040 291661030010030 291661030010060 291661030012050 29 61 0 04 29 61 0 04 29 61 0 03 29 61 0 06 29 61 0 05 | I 2,5 9 I 3,0 6 I 3,0 10 I 3,0 10 I 3,0 12 | 3 40 25,00 3 40 25,00 3 30 24,00 3 60 26,00 6 50 35,00 Cutting data D | rawings |
| 291661030015075 291661030018100 29 61 0 07 29 61 0 10 | I 3,0 15 I 3,0 18 | 8 75 46,00 8 100 52,00 D 1337 | XF/STEP |
PE
PP
PA
| Art. | d1 | l2 | d2 h6 | l1 | € |
| 291661010004040 29 61 0 04 | I 1,0 | 4 | 3 | 40 | 25,00 |
| 291661015006040 29 61 0 04 | I 1,5 | 6 | 3 | 40 | 25,00 |
| 291661020003050 29 61 0 05 | I 2,0 | 3 | 3 | 50 | 26,00 |
| 291661020006050 29 61 0 05 | I 2,0 | 6 | 6 | 50 | 35,00 |
| 291661020008040 29 61 0 04 | I 2,0 | 8 | 3 | 40 | 25,00 |
| 291661025009040 29 61 0 04 | I 2,5 | 9 | 3 | 40 | 25,00 |
| 291661030006040 29 61 0 04 | I 3,0 | 6 | 3 | 40 | 25,00 |
| 291661030010030 29 61 0 03 | I 3,0 | 10 | 3 | 30 | 24,00 |
| 291661030010060 29 61 0 06 | I 3,0 | 10 | 3 | 60 | 26,00 |
| 291661030012050 29 61 0 05 | I 3,0 | 12 | 6 | 50 | 35,00 |
| 291661030015075 29 61 0 07 | I 3,0 | 15 | 8 | 75 | 46,00 |
| 291661030018100 29 61 0 10 | I 3,0 | 18 | 8 | 100 | 52,00 |
| 291661040005050 29 61 0 05 | I 4,0 | 5 | 4 | 50 | 31,00 |
| 291661040008040 29 61 0 04 | I 4,0 | 8 | 4 | 40 | 31,00 |
| 291661040014050 29 61 0 05 | I 4,0 | 14 | 6 | 50 | 38,00 |
| 291661040018075 29 61 0 07 | I 4,0 | 18 | 8 | 75 | 46,00 |
| 291661040020060 29 61 0 06 | I 4,0 | 20 | 4 | 60 | 32,00 |
| 291661040022100 29 61 0 10 | I 4,0 | 22 | 8 | 100 | 52,00 |
| 291661040030070 29 61 0 07 | I 4,0 | 30 | 4 | 70 | 33,00 |
| 291661050006050 29 61 0 05 | I 5,0 | 6 | 5 | 50 | 38,00 |
| 291661050010040 29 61 0 04 | I 5,0 | 10 | 5 | 40 | 38,00 |
| 291661050016050 29 61 0 05 | I 5,0 | 16 | 6 | 50 | 39,00 |
| 291661050022060 29 61 0 06 | I 5,0 | 22 | 5 | 60 | 39,00 |
| 291661050025075 29 61 0 07 | I 5,0 | 25 | 8 | 75 | 46,00 |
| 291661050025100 29 61 0 10 | I 5,0 | 25 | 8 | 100 | 52,00 |
| 291661050030070 29 61 0 07 | I 5,0 | 30 | 5 | 70 | 41,00 |
| 291661060007050 29 61 0 05 | I 6,0 | 7 | 6 | 50 | 38,00 |
| 291661060018050 29 61 0 05 | I 6,0 | 18 | 6 | 50 | 39,00 |
| 291661060020060 29 61 0 06 | I 6,0 | 20 | 6 | 60 | 41,00 |
| 291661060025065 29 61 0 06 | I 6,0 | 25 | 6 | 65 | 42,00 |
| 291661060025075 29 61 0 07 | I 6,0 | 25 | 8 | 75 | 46,00 |
| 291661060030100 29 61 0 10 | I 6,0 | 30 | 8 | 100 | 52,00 |
| 291661060040080 29 61 0 08 | I 6,0 | 40 | 6 | 80 | 44,00 |
| 291661080009050 29 61 0 05 | I 8,0 | 9 | 8 | 50 | 46,00 |
| 291661080020050 29 61 0 05 | I 8,0 | 20 | 8 | 50 | 45,00 |
| 291661080020060 29 61 0 06 | I 8,0 | 20 | 8 | 60 | 47,00 |
| 291661080030075 29 61 0 07 | I 8,0 | 30 | 8 | 75 | 51,00 |
| 291661080035100 29 61 0 10 | I 8,0 | 35 | 8 | 100 | 57,00 |
| 291661100025070 29 61 0 07 | I 10,0 | 25 | 10 | 70 | 81,00 |
| 291661100035090 29 61 0 09 | I 10,0 | 35 | 10 | 90 | 87,00 |
OIL
