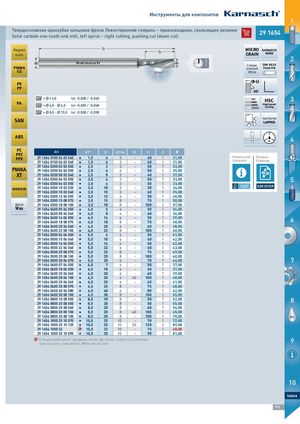

Твердосплавная однозубая концевая фреза Левосторонняя спираль – правозаходная, скользящее резание 29 1654291654
Solid carbide one-tooth end mill, left spiral – right cutting, pushing cut (down cut)
| MICRO GRAIN | KARNASCH NORM | 2 | ||
| Gelapt | Z 1 | SPECIAL Специ- альный | DIN 6535 Form HA | |
| 30° L R - | ||||
| HSC High-Speed- Cutting | 3 | |||
| притёртая | ||||
| Z 1 1 | € 31,00 31,00 | Параметры резки Cutting data Ри Dr | сунки awings | 4 |
| 1 1 1 1 | 33,00 35,00 37,00 33,00 | 5 | ||
| 1 1 | 33,00 3400 | D 1337 | XF/STEP |
PP
| d1=≤ 3,0 | tol -0,000 / -0,040 |
| d1=4,0 -6,0 | tol -0,000 / -0,048 |
| d1=8,0 -10,0 | tol -0,000 / -0,058 |
PA
PC
| Art. | d1 | l2 | d2 h6 | l3 | l1 | Z € | |
| 29165401000403040 1 0 0 03 040 | I | 1,0 | 4 | 3 | – | 40 | 1 31,00 |
| 29165401500603040 1 0 0 03 040 | I | 1,5 | 6 | 3 | – | 40 | 1 31,00 |
| 29165402000303050 1 0 0 03 050 | I | 2,0 | 3 | 3 | – | 50 | 1 33,00 |
| 29165402000606050 1 0 0 06 050 | I | 2,0 | 6 | 6 | – | 50 | 1 35,00 |
| 29165402000803040 1 0 0 03 040 | I | 2,0 | 8 | 3 | – | 40 | 1 37,00 |
| 29165403000403050 1 0 0 03 050 | I | 3,0 | 4 | 3 | – | 50 | 1 33,00 |
| 29165403000603050 1 0 0 03 050 | I | 3,0 | 6 | 3 | – | 50 | 1 33,00 |
| 29165403001003030 1 0 1 03 030 | I | 3,0 | 10 | 3 | – | 30 | 1 34,00 |
| 29165403001003060 1 0 1 03 060 | I | 3,0 | 10 | 3 | – | 60 | 1 35,00 |
| 29165403001206050 1 0 1 06 050 | I | 3,0 | 12 | 6 | – | 50 | 1 40,00 |
| 29165403001508075 1 0 1 08 075 | I | 3,0 | 15 | 8 | – | 75 | 1 50,00 |
| 29165403001808100 1 0 1 08 100 | I | 3,0 | 18 | 8 | – | 100 | 1 57,00 |
| 29165404000504050 1 0 0 04 050 | I | 4,0 | 5 | 4 | – | 50 | 1 36,00 |
| 29165404000804040 1 0 0 04 040 | I | 4,0 | 8 | 4 | – | 40 | 1 36,00 |
| 29165404001406050 1 0 1 06 050 | I | 4,0 | 14 | 6 | – | 50 | 1 39,00 |
| 29165404001808075 1 0 1 08 075 | I | 4,0 | 18 | 8 | – | 75 | 1 48,00 |
| 29165404002004060 1 0 2 04 060 | I | 4,0 | 20 | 4 | – | 60 | 1 38,00 |
| 29165404002208100 1 0 2 08 100 | I | 4,0 | 22 | 8 | – | 100 | 1 60,00 |
| 29165405000606050 1 0 0 06 050 | I | 5,0 | 6 | 6 | – | 50 | 1 41,00 |
| 29165405001006040 1 0 1 06 040 | I | 5,0 | 10 | 6 | – | 40 | 1 42,00 |
| 29165405001606050 1 0 1 06 050 | I | 5,0 | 16 | 6 | – | 50 | 1 42,00 |
| 29165405002206060 1 0 2 06 060 | I | 5,0 | 22 | 6 | – | 60 | 1 43,00 |
| 29165405002508075 1 0 2 08 075 | I | 5,0 | 25 | 8 | – | 75 | 1 49,00 |
| 29165405002508100 1 0 2 08 100 | I | 5,0 | 25 | 8 | – | 100 | 1 60,00 |
| 29165405003006070 1 0 3 06 070 | I | 5,0 | 30 | 6 | – | 70 | 1 44,00 |
| 29165406000706050 1 0 0 06 050 | I | 6,0 | 7 | 6 | – | 50 | 1 37,00 |
| 29165406001806050 1 0 1 06 050 | I | 6,0 | 18 | 6 | – | 50 | 1 37,00 |
| 29165406002006060 1 0 2 06 060 | I | 6,0 | 20 | 6 | – | 60 | 1 39,00 |
| 29165406002006100 1 0 2 06 100 | I | 6,0 | 20 | 6 | 40 | 100 | 1 40,00 |
| 29165406002506065 1 0 2 06 065 | I | 6,0 | 25 | 6 | – | 65 | 1 41,00 |
| 29165406002508075 1 0 2 08 075 | I | 6,0 | 25 | 8 | – | 75 | 1 48,00 |
| 29165406004006080 1 0 4 06 080 | I | 6,0 | 40 | 6 | – | 80 | 1 42,00 |
| 29165406003008100 1 0 3 08 100 | I | 6,0 | 30 | 8 | – | 100 | 1 55,00 |
| 29165408001008050 1 0 1 08 050 | I | 8,0 | 10 | 8 | – | 50 | 1 52,00 |
| 29165408002008050 1 0 2 08 050 | I | 8,0 | 20 | 8 | – | 50 | 1 55,00 |
| 29165408002008060 1 0 2 08 060 | I | 8,0 | 20 | 8 | – | 60 | 1 56,00 |
| 29165408002008100 1 0 2 08 100 | I | 8,0 | 20 | 8 | 40 | 100 | 1 65,00 |
| 29165408003508100 1 0 3 08 100 | I | 8,0 | 35 | 8 | – | 100 | 1 70,00 |
| 29165410002510070 1 1 2 10 070 | I | 10,0 | 25 | 10 | – | 70 | 1 72,00 |
| 29165410002510120 1 1 2 10 120 | I | 10,0 | 25 | 10 | 50 | 120 | 1 89,00 |
| 291654100032 1 1 3 | % | 10,0 | 32 | 10 | – | 75 | 1 48,00 |
| 29165410003510090 1 1 3 10 090 | I | 10,0 | 35 | 10 | – | 90 | 1 81,00 |
MAKROLON
% Специальная цена / продажа статьи. Доступно, пока есть в наличии. 9
Special price / sale article. While stocks last.
