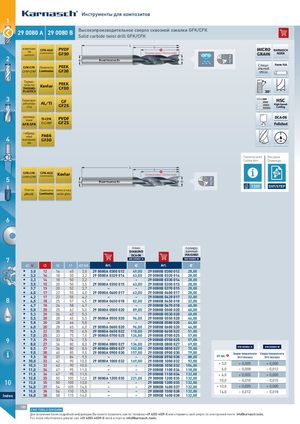

29 0080 A 29 0080 B290080 A 290080 B Высокопроизводительное сверло сквозной закалки GFK/CFK
Solid carbide twist drill GFK/CFK
| компози- | CFK-ALU | PVDF | MICRO | |||
| ты | KARNASCH | |||||
| композиты | GF30 | Полезная длина / Effective length | GRAIN | NORM |
| 2 | COMPOSITES | Z |
| 2 |
PEEK Специ- Form HA
| GFK-CFK | Ламинаты | альный | |
| GFRP-CFRP | Laminates | GF30 |
SPECIAL Термо- PEEK пласты Kevlar THERMO- CF30
PLASTICS 30°
3 HSC
Терморе- GF
| актопла- | AL/TI | GF25 | |
| сты | High-Speed- | ||
| Cutting | |||
| арамид- | PVDF | DCA-06 | |
| ным | TI-CFK | ||
| TI-CFRP | GF25 | Polished |
AFK-SFK гибрид- PA66 4 ные материа- GF30
лы
Параметры резки Рисунки Cutting data Drawings
GFK-CFK CFK-ALU Kevlar
| 5 | композиты | Полезная длина / Effective length | ||||
| GFRP-CFRP | Z | |||||
| 2 | ||||||
| 1339 | DXF/STEP |
| Пластик | Ламинаты | плексигласа |
| plastic | Laminates | acrylic glass |
6
| 29 0080 A DCA-06 Алмаз DIAMOND | 29 0080 B полиро ванный POLISHED | ||||||||||
| d1 | l3 | l2 | l1 | d2 h5 | Art. | € | Art. | € | |||
| I 3,0 | 12 | 16 | 45 | 3,0 | 290080A0300012 0 0 0 | 49,00 | 290080B0300012 0 0 0 | 28,00 | |||
| I 3,2 | 14 | 18 | 50 | 3,2 | 290080A0320014 0 0 0 | 63,00 | 290080B0320014 0 0 0 | 28,00 | |||
| I 3,3 | 14 | 18 | 50 | 3,2 | – | – | 290080B0330014 0 0 0 | 28,00 | |||
| I 3,5 | 15 | 20 | 50 | 3,5 | 290080A0350015 0 0 0 | 63,00 | 290080B0350015 0 0 0 | 28,00 | |||
| I 3,7 | 15 | 20 | 52 | 3,7 | – | – | 290080B0370015 0 0 0 | 28,00 | |||
| I 4,0 | 17 | 22 | 55 | 4,0 | 290080A0400017 0 0 0 | 63,00 | 290080B0400017 0 0 0 | 28,00 | |||
| I 4,2 | 17 | 22 | 55 | 4,2 | – | – | 290080B0420017 0 0 0 | 32,00 | |||
| I 4,5 | 18 | 25 | 57 | 4,5 | 290080A0450018 0 0 0 | 82,00 | 290080B0450018 0 0 0 | 32,00 | |||
| I 4,7 | 18 | 24 | 58 | 4,7 | – | – | 290080B0470018 0 0 0 | 40,00 | |||
| I 5,0 | 20 | 25 | 62 | 5,0 | 290080A0500020 0 0 0 | 89,00 | 290080B0500020 0 0 0 | 40,00 | |||
| I 5,3 | 20 | 26 | 62 | 5,3 | – | – | 290080B0530020 0 0 0 | 40,00 | |||
| I 5,5 | 20 | 28 | 65 | 5,5 | 290080A0550020 0 0 0 | 96,00 | 290080B0550020 0 0 0 | 46,00 | |||
| I 5,8 | 20 | 28 | 66 | 5,8 | – | – | 290080B0580020 0 0 0 | 46,00 | |||
| I 6,0 | 20 | 28 | 65 | 6,0 | 290080A0600020 0 0 0 | 96,00 | 290080B0600020 0 0 0 | 46,00 | |||
| I 6,5 | 22 | 30 | 70 | 6,5 | 290080A0650022 0 0 0 | 118,00 | 290080B0650022 0 0 0 | 51,00 | |||
| I 7,0 | 25 | 33 | 75 | 7,0 | 290080A0700025 0 0 0 | 124,00 | 290080B0700025 0 0 0 | 57,00 | |||
| I 7,5 | 25 | 33 | 74 | 7,5 | – | – | 290080B0750025 0 0 0 | 57,00 | |||
| I 8,0 | 27 | 36 | 80 | 8,0 | 290080A0800027 0 0 0 | 136,00 | 290080B0800027 0 0 0 | 69,00 | |||
| I 8,5 | 27 | 36 | 80 | 8,5 | 290080A0850027 0 0 0 | 152,00 | 290080B0850027 0 0 0 | 75,00 | 29 0080 A | 29 0080 B | |
| I 9,0 | 30 | 40 | 85 | 9,0 | 290080A0900030 0 0 0 | 157,00 | 290080B0900030 0 0 0 | 79,00 | Сверла толерантности | Сверла толерантности | |
| I 9,5 | 30 | 37 | 84 | 9,5 | – | – | 290080B0950030 0 0 0 | 88,00 | d1 tol. | Drill tolerance | Drill tolerance |
| I 10,0 | 32 | 42 | 90 | 10,0 | 290080A1000032 0 1 0 | 169,00 | 290080B1000032 0 1 0 | 92,00 | 30 | 0005 | 0000 |
| I 10,5 | 32 | 42 | 90 | 10,5 | – | – | 290080B1050032 0 1 0 | 104,00 | > , | + , | + , |
| I 11,0 | 34 | 47 | 95 | 11,0 | – | – | 290080B1100034 0 1 0 | 118,00 | 6,0 | – 0,008 | – 0,012 |
| I 11,5 | 34 | 47 | 95 | 11,5 | – | – | 290080B1150034 0 1 0 | 132,00 | > 6,0 | + 0,005 | + 0,000 |
| I 12,0 | 35 | 50 | 100 | 12,0 | 290080A1200035 0 1 0 | 221,00 | 290080B1200035 0 1 0 | 132,00 | 100 | 0010 | 0015 |
| I 13,0 | 35 | 50 | 100 | 13,0 | – | – | 290080B1300035 0 1 0 | 132,00 | , | –, | –, |
| I 14,0 | 37 | 54 | 105 | 14,0 | – | – | 290080B1400037 0 1 0 | 132,00 | > 10,0 | + 0,005 | + 0,000 |
| I 15,0 | 38 | 56 | 110 | 15,0 | – | – | 290080B1500038 0 1 0 | 132,00 | 14,0 | – 0,012 | – 0,018 |
| I 16,0 | 38 | 58 | 115 | 16,0 | – | – | 290080B1600038 0 1 0 | 132,00 |
