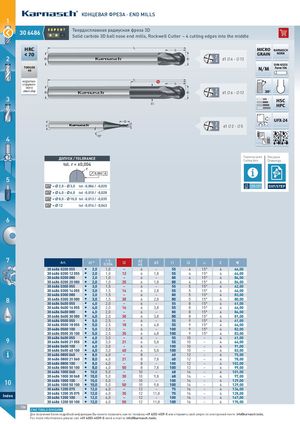

| 30 6486306486 | EXPERTEXPERT | Твердосплавная радиусная фреза 3D | |||
| Solid carbide 3D ball nose end mills, Rockwell Cutter – 4 cutting edges into the middle | |||||
| HRC | MICRO | ||||
| KARNASCH |
| < 70 | GRAIN | NORM | ||
| 2 | Z | |||
| 4 | d1 6 - 12 | |||
| DIN 6535 | ||||
| TOOLOX | N/M | Form HA | ||
| 44 | ||||
| коротко- | ||||
| стружеч- | ||||
| ного | Z |
short chip d1 6 - 12 30°
3 4 HSC d3 HPC
UFX-24
l2 Z
| d | d | d1 2 - 5 | |
| 2 | 1 | 4 |
4 15°
5
6
| ДОПУСК / TOLERANCE | Параметры резки | Рисунки | |||
| Cutting data | Drawings | ||||
| tol. r = ±0,004 | |||||
| r | |||||
| 0,003 A |
d1* = 2,0 - 3,0 tol -0,006 / -0,020 1270-1271 DXF/STEP
d1* = 4,0 - 6,0 tol -0,010 / -0,028 d1* = 8,0 - 10,0 tol -0,013 / -0,035 d1* = 12 tol -0,016 / -0,043
| Art. | d1 | r ± 0,004 | l3 | d2 h5 | d3 | l1 | l2 | a | Z | € | |
| 3064860200055 6 0 05 | I | 2,0 | 1,0 | – | 6 | – | 55 | 4 | 15° | 4 | 64,00 |
| 306486020012055 6 0 12 055 | I | 2,0 | 1,0 | 12 | 6 | 1,8 | 55 | 4 | 15° | 4 | 64,00 |
| 3064860200080 6 0 08 | I | 2,0 | 10 | – | 6 | – | 80 | 4 | 15° | 4 | 84,00 |
| 306486020020080 6 0 20 080 | I | 2,0 | , 1,0 | 20 | 6 | 1,8 | 80 | 4 | 15° | 4 | 84,00 |
| 3064860300055 6 0 05 | I | 3,0 | 15 | – | 6 | – | 55 | 5 | 15° | 4 | 62,00 |
| 306486030014055 6 0 14 055 | I | 3,0 | , 1,5 | 14 | 6 | 2,8 | 55 | 5 | 15° | 4 | 64,00 |
| 3064860300080 6 0 08 | I | 3,0 | 1,5 | – | 6 | – | 80 | 5 | 15° | 4 | 83,00 |
| 306486030030080 6 0 30 080 | I | 3,0 | 1,5 | 30 | 6 | 2,8 | 80 | 5 | 15° | 4 | 80,00 |
| 3064860400055 6 0 05 | I | 4,0 | 2,0 | – | 6 | – | 55 | 8 | 15° | 4 | 61,00 |
| 306486040016055 6 0 16 055 | I | 4,0 | 2,0 | 16 | 6 | 3,8 | 55 | 8 | 15° | 4 | 64,00 |
| 3064860400080 6 0 08 | I | 4,0 | 2,0 | – | 6 | – | 80 | 8 | 15° | 4 | 84,00 |
| 306486040030080 6 0 30 080 | I | 4,0 | 2,0 | 30 | 6 | 3,8 | 80 | 8 | 15° | 4 | 81,00 |
| 3064860500055 6 0 05 | I | 5,0 | 2,5 | – | 6 | – | 55 | 9 | 15° | 4 | 61,00 |
| 306486050018055 6 0 18 055 | I | 5,0 | 2,5 | 18 | 6 | 4,8 | 55 | 9 | 15° | 4 | 64,00 |
| 3064860500100 6 0 10 | I | 5,0 | 2,5 | – | 6 | – | 100 | 9 | 15° | 4 | 82,00 |
| 306486050035100 6 0 35 100 | I | 5,0 | 2,5 | 35 | 6 | 4,8 | 100 | 9 | 15° | 4 | 83,00 |
| 3064860600055 6 0 05 | I | 60 | 30 | – | 6 | – | 55 | 10 | – | 4 | 6100 |
| 306486060021055 6 0 21 055 | I | , 6,0 | , 3,0 | 21 | 6 | 5,8 | 55 | 10 | – | 4 | , 64,00 |
| 3064860600100 6 0 10 | I | 6,0 | 30 | – | 6 | – | 100 | 10 | – | 4 | 91,00 |
| 306486060040100 6 0 40 100 | I | 6,0 | , 3,0 | 40 | 6 | 5,8 | 100 | 10 | – | 4 | 83,00 |
| 3064860800060 6 0 06 | I | 80 | 40 | – | 8 | – | 60 | 12 | – | 4 | 7500 |
| 306486080021060 6 0 21 060 | I | , 8,0 | , 4,0 | 21 | 8 | 7,8 | 60 | 12 | – | 4 | , 78,00 |
| 3064860800100 6 0 10 | I | 8,0 | 4,0 | – | 8 | – | 100 | 12 | – | 4 | 102,00 |
| 306486080050100 6 0 50 100 | I | 8,0 | 4,0 | 50 | 8 | 7,8 | 100 | 12 | – | 4 | 99,00 |
| 3064861000068 6 1 06 | I | 10,0 | 5,0 | – | 10 | – | 68 | 14 | – | 4 | 101,00 |
| 306486100030068 6 1 30 068 | I | 10,0 | 5,0 | 30 | 10 | 9,8 | 68 | 14 | – | 4 | 97,00 |
| 3064861000100 6 1 10 | I | 10,0 | 50 | – | 10 | – | 100 | 14 | – | 4 | 129,00 |
| 306486100050100 6 1 50 100 | I | 10,0 | , 5,0 | 50 | 10 | 9,8 | 100 | 14 | – | 4 | 129,00 |
| 3064861200075 6 1 07 | I | 12,0 | 6,0 | – | 12 | – | 75 | 16 | – | 4 | 134,00 |
| 306486120035075 6 1 35 075 | I | 12,0 | 6,0 | 35 | 12 | 11,8 | 75 | 16 | – | 4 | 128,00 |
| 3064861200100 6 1 10 | I | 12,0 | 6,0 | – | 12 | – | 100 | 16 | – | 4 | 167,00 |
| 306486120050100 6 1 50 100 | I | 12,0 | 6,0 | 50 | 12 | 11,8 | 100 | 16 | – | 4 | 170,00 |
