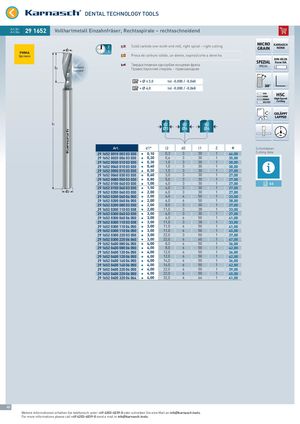

Art.Nr. 29165229 1652 Vollhartmetall Einzahnfräser, Rechtsspirale – rechtsschneidend
Z Solid carbide one-tooth end mill, right spiral – right cutting PMMA 1 Оргстекло Fresa de carburo sólido, un diente, espiral/corte a derecha Твердосплавная однозубая концевая фреза
Geläppt Правосторонняя спираль – правозаходная Lapped d1* = ≤ 3,0 tol -0,000 / -0,040 d1* = 4,0 tol -0,000 / -0,048
MICRO
KARNASCH GRAIN NORM SPEZIAL DIN 6535 Form HA SPECIAL
HSC
High-Speed- Cutting
| d2 | d2 | d2 |
| 3 | 4 | 6 |
| Art. | d1* | l2 | d2 | l1 | Z | Schnittdaten € | |
| 29 1652 0010 003 03 030291652001000303030 | I | 0,10 | 0,3 | 3 | 30 | 1 | Cutting data 46,00 |
| 29 1652 0020 006 03 030291652002000603030 | I | 0,20 | 0,6 | 3 | 30 | 1 | 35,00 |
| 29 1652 0030 010 03 030291652003001003030 | I | 0,30 | 1,0 | 3 | 30 | 1 | 30,00 |
| 29 1652 0040 010 03 030291652004001003030 | I | 0,40 | 1,0 | 3 | 30 | 1 | 30,00 |
| 29 1652 0050 015 03 030291652005001503030 | I | 0,50 | 1,5 | 3 | 30 | 1 | 27,00 |
| 29 1652 0060 030 03 030291652006003003030 | I | 0,60 | 3,0 | 3 | 30 | 1 | 27,00 |
| 29 1652 0080 050 03 030291652008005003030 | I | 0,80 | 5,0 | 3 | 30 | 1 | 27,00 |
| 29 1652 0100 040 03 030291652010004003030 | I | 1,00 | 4,0 | 3 | 30 | 1 | 66 27,00 |
| 29 1652 0150 060 03 030291652015006003030 | I | 1,50 | 6,0 | 3 | 30 | 1 | 27,00 |
| 29 1652 0200 060 03 030291652020006003030 | I | 2,00 | 6,0 | 3 | 30 | 1 | 27,00 |
| 29 1652 0200 060 04 050291652020006004050 | I | 2,00 | 6,0 | 4 | 50 | 1 | 33,00 |
| 29 1652 0200 060 06 050291652020006006050 | I | 2,00 | 6,0 | 6 | 50 | 1 | 38,00 |
| 29 1652 0200 080 03 030291652020008003030 | I | 2,00 | 8,0 | 3 | 30 | 1 | 27,00 |
| 29 1652 0200 110 03 038291652020011003038 | I | 2,00 | 11,0 | 3 | 38 | 1 | 33,00 |
| 29 1652 0300 060 03 030291652030006003030 | I | 3,00 | 6,0 | 3 | 30 | 1 | 27,00 |
| 29 1652 0300 060 06 050291652030006006050 | I | 3,00 | 6,0 | 6 | 50 | 1 | 41,00 |
| 29 1652 0300 110 03 038291652030011003038 | I | 3,00 | 11,0 | 3 | 38 | 1 | 33,00 |
| 29 1652 0300 110 04 050291652030011004050 | I | 3,00 | 11,0 | 4 | 50 | 1 | 41,00 |
| 29 1652 0300 110 06 050291652030011006050 | I | 3,00 | 11,0 | 6 | 50 | 1 | 45,00 |
| 29 1652 0300 220 03 050291652030022003050 | I | 3,00 | 22,0 | 3 | 50 | 1 | 37,00 |
| 29 1652 0300 220 06 060291652030022006060 | I | 3,00 | 22,0 | 6 | 60 | 1 | 47,00 |
| 29 1652 0400 080 04 050291652040008004050 | I | 4,00 | 8,0 | 4 | 50 | 1 | 36,00 |
| 29 1652 0400 080 06 050291652040008006050 | I | 4,00 | 8,0 | 6 | 50 | 1 | 42,00 |
| 29 1652 0400 120 04 050291652040012004050 | I | 4,00 | 12,0 | 4 | 50 | 1 | 36,00 |
| 29 1652 0400 120 06 050291652040012006050 | I | 4,00 | 12,0 | 6 | 50 | 1 | 42,00 |
| 29 1652 0400 140 04 050291652040014004050 | I | 4,00 | 14,0 | 4 | 50 | 1 | 36,00 |
| 29 1652 0400 140 06 050291652040014006050 | I | 4,00 | 14,0 | 6 | 50 | 1 | 42,00 |
| 29 1652 0400 220 04 050291652040022004050 | I | 4,00 | 22,0 | 4 | 50 | 1 | 39,00 |
| 29 1652 0400 220 06 050291652040022006050 | I | 4,00 | 22,0 | 6 | 50 | 1 | 45,00 |
| 29 1652 0400 320 04 064291652040032004064 | I | 4,00 | 32,0 | 4 | 64 | 1 | 41,00 |
