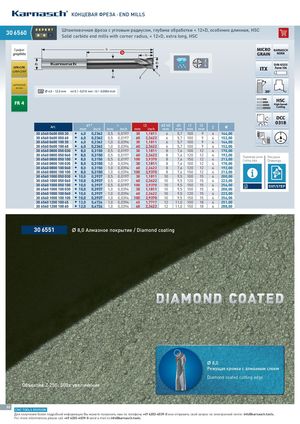

| 30656030 6560 | EXPERTEXPERT | Штамповочная фреза с угловым радиусом, глубина обработки < 12×D, особенно длинная, HSC | |||
| Solid carbide end mills with corner radius, < 12×D, extra long, HSC | |||||
| Графит | MICRO | ||||
| KARNASCH |
| graphite | GRAIN | NORM | |
| Z | |||
| 4 | DIN 6535 | ||
| GFK-CFK | ITX | Form HA | |
| GFRP-CFRP | |||
| r | |||
| ЦИРКОНИЙ | |||
| ZIRCONIA |
d1* 6,0 - 12,0 mm tol 0 / -0,015 mm | 0 / -0,0006 Inch 30° r
HSC FR 4 High-Speed- Cutting
DCC
0318
| Art. | d mm | 1 Inch | mm | r Inch | mm | l3 Inch | d2 h5 mm | d3 mm | l1 mm | l2 mm | Z | € |
| 306560060005030 6 0 05 30 | I 6,0 | 0,2362 | 0,5 | 0,0197 | 30 | 1,1811 | 6 | 5,7 | 100 | 9 | 4 | 144,00 |
| 306560060005060 6 0 05 60 | I 6,0 | 0,2362 | 0,5 | 0,0197 | 60 | 2,3622 | 6 | 5,7 | 100 | 9 | 4 | 152,00 |
| 306560060010030 6 0 10 30 | I 6,0 | 0,2362 | 1,0 | 0,0394 | 30 | 1,1811 | 6 | 5,7 | 100 | 9 | 4 | 144,00 |
| 306560060010060 6 0 10 60 | I 6,0 | 0,2362 | 1,0 | 0,0394 | 60 | 2,3622 | 6 | 5,7 | 100 | 9 | 4 | 152,00 |
| 3065600800050030 6 0 05 030 | I 8,0 | 0,3150 | 0,5 | 0,0197 | 30 | 1,1811 | 8 | 7,6 | 100 | 12 | 4 | 170,00 |
| 3065600800050060 6 0 05 060 | I 8,0 | 0,3150 | 0,5 | 0,0197 | 60 | 2,3622 | 8 | 7,6 | 120 | 12 | 4 | 192,00 |
| 3065600800050100 6 0 05 100 | I 8,0 | 0,3150 | 0,5 | 0,0197 | 100 | 3,9370 | 8 | 7,6 | 150 | 12 | 4 | 213,00 |
| 3065600800100030 6 0 10 030 | I 8,0 | 0,3150 | 1,0 | 0,0394 | 30 | 1,1811 | 8 | 7,6 | 100 | 12 | 4 | 170,00 |
| 3065600800100060 6 0 10 060 | I 8,0 | 0,3150 | 1,0 | 0,0394 | 60 | 2,3622 | 8 | 7,6 | 120 | 12 | 4 | 192,00 |
| 3065600800100100 6 0 10 100 | I 8,0 | 0,3150 | 1,0 | 0,0394 | 100 | 3,9370 | 8 | 7,6 | 150 | 12 | 4 | 213,00 |
| 3065601000050030 6 1 05 030 | I 10,0 | 0,3937 | 0,5 | 0,0197 | 30 | 1,1811 | 10 | 9,5 | 100 | 15 | 4 | 200,00 |
| 3065601000050060 6 1 05 060 | I 10,0 | 0,3937 | 0,5 | 0,0197 | 60 | 2,3622 | 10 | 9,5 | 120 | 15 | 4 | 223,00 |
| 3065601000050100 6 1 05 100 | I 10,0 | 0,3937 | 0,5 | 0,0197 | 100 | 3,9370 | 10 | 9,5 | 150 | 15 | 4 | 256,00 |
| 3065601000100030 6 1 10 030 | I 10,0 | 0,3937 | 1,0 | 0,0394 | 30 | 1,1811 | 10 | 9,5 | 100 | 15 | 4 | 200,00 |
| 3065601000100060 6 1 10 060 | I 10,0 | 0,3937 | 1,0 | 0,0394 | 60 | 2,3622 | 10 | 9,5 | 120 | 15 | 4 | 223,00 |
| 3065601000100100 6 1 10 100 | I 10,0 | 0,3937 | 1,0 | 0,0394 | 100 | 3,9370 | 10 | 9,5 | 150 | 15 | 4 | 256,00 |
| 306560120010045 6 1 10 45 | I 12,0 | 0,4724 | 1,0 | 0,0394 | 45 | 1,7717 | 12 | 11,0 | 100 | 18 | 4 | 251,00 |
| 306560120010060 6 1 10 60 | I 12,0 | 0,4724 | 1,0 | 0,0394 | 60 | 2,3622 | 12 | 11,0 | 150 | 18 | 4 | 288,00 |
