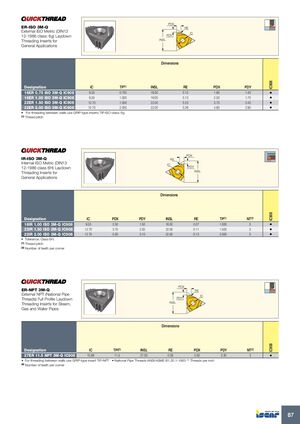

PDX ER-ISO 3M-Q RE External ISO Metric (DIN13 IC 12-1986 class: 6g) Laydown PDY INSL Threading Inserts for General Applications Dimensions IC908 Designation IC TP(1) INSL RE PDX PDY 16ER 0.75 ISO 3M-Q IC908 9.53 0.750 16.00 0.12 1.90 1.40 • 16ER 1.00 ISO 3M-Q IC908 9.53 1.000 16.00 0.13 2.50 1.70 • 22ER 1.50 ISO 3M-Q IC908 12.70 1.500 22.00 0.23 3.70 2.40 • 22ER 2.00 ISO 3M-Q IC908 12.70 2.000 22.00 0.26 4.80 2.90 • • For threading between walls use GRIP-type inserts TIP-ISO class: 6g (1) Thread pitch PDX IR-ISO 3M-Q RE Internal ISO Metric (DIN13 IC 12-1986 class 6H) Laydown PDY INSL Threading Inserts for General Applications Dimensions IC908 Designation IC PDX PDY INSL RE TP(1) NT(2) 16IR 1.00 ISO 3M-Q IC908 9.53 2.50 1.50 16.00 0.07 1.000 3 • 22IR 1.50 ISO 3M-Q IC908 12.70 3.70 2.30 22.00 0.11 1.500 3 • 22IR 2.00 ISO 3M-Q IC908 12.70 5.00 3.10 22.00 0.13 2.000 3 • • Tolerance: Class 6H. (1) Thread pitch (2) Number of teeth per corner PDX ER-NPT 3M-Q RE External NPT (National Pipe IC Threads) Full Profile Laydown PDY INSL Threading Inserts for Steam, Gas and Water Pipes Dimensions IC908 Designation IC TPI(1) INSL RE PDX PDY NT(2) 27ER 11.5 NPT 3M-Q IC908 15.88 11.5 27.00 0.09 5.50 3.30 3 • • For threading between walls use GRIP-type insert TIP-NPT • National Pipe Threads ANSI/ASME B1.20.1-1983 (1) Threads per inch (2) Number of teeth per corner 87
