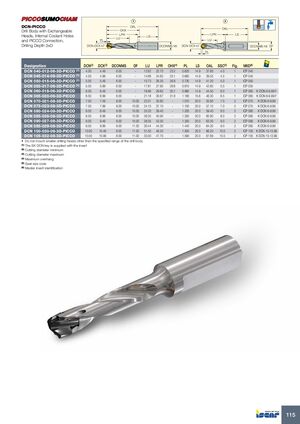

1 2 DCN-PICCO OAL OAL Drill Body with Exchangeable OHX LPR LPR LS Heads, Internal Coolant Holes LS LU and PICCO Connection, PL LU Drilling Depth 3xD DCN-DCX k7 DCONMS h6 DCN-DCX k7 DCONMS h6 DF PL Designation DCN(2) DCX(3) DCONMS DF LU LPR OHX(4) PL LS OAL SSC(5) Fig. MIID(6) DCN 040-012-06-3D-PICCO (1) 4.00 4.49 6.00 - 12.62 22.70 23.2 0.620 14.9 37.60 4.0 1 ICP 040 DCN 045-014-06-3D-PICCO (1) 4.50 4.99 6.00 - 14.66 24.65 25.1 0.660 14.9 39.55 4.5 1 ICP 045 DCN 050-015-06-3D-PICCO (1) 5.00 5.49 6.00 - 15.73 26.30 26.8 0.730 14.9 41.20 5.0 1 ICP 050 DCN 055-017-06-3D-PICCO (1) 5.50 5.99 6.00 - 17.81 27.95 28.6 0.810 14.9 42.85 5.5 1 ICP 055 DCN 060-018-06-3D-PICCO 6.00 6.49 6.00 - 18.96 29.60 30.1 0.960 14.9 44.50 6.0 1 ICP 060 K DCN 6-9.99-Y DCN 065-020-06-3D-PICCO 6.50 6.99 6.00 - 21.18 30.67 31.8 1.180 15.6 46.30 6.5 1 ICP 065 K DCN 6-9.99-Y DCN 070-021-08-3D-PICCO 7.00 7.49 8.00 10.00 22.01 35.60 - 1.010 20.0 55.60 7.0 2 ICP 070 K DCN 6-9.99 DCN 075-023-08-3D-PICCO 7.50 7.99 8.00 10.00 24.10 37.10 - 1.100 20.0 57.10 7.0 2 ICP 075 K DCN 6-9.99 DCN 080-024-08-3D-PICCO 8.00 8.49 8.00 10.00 25.20 39.40 - 1.200 20.0 59.40 8.0 2 ICP 080 K DCN 6-9.99 DCN 085-026-08-3D-PICCO 8.50 8.99 8.00 10.00 26.35 40.90 - 1.350 20.0 60.90 8.0 2 ICP 085 K DCN 6-9.99 DCN 090-027-08-3D-PICCO 9.00 9.49 8.00 10.00 28.35 43.30 - 1.350 20.0 63.30 9.0 2 ICP 090 K DCN 6-9.99 DCN 095-029-08-3D-PICCO 9.50 9.99 8.00 11.00 30.44 44.30 - 1.440 20.0 64.30 9.0 2 ICP 095 K DCN 6-9.99 DCN 100-030-08-3D-PICCO 10.00 10.49 8.00 11.00 31.50 46.20 - 1.500 20.0 66.20 10.0 2 ICP 100 K DCN 10-13.99 DCN 105-032-08-3D-PICCO 10.50 10.99 8.00 11.00 33.00 47.70 - 1.590 20.0 67.69 10.5 2 ICP 105 K DCN 10-13.99 • Do not mount smaller drilling heads other than the specified range of the drill body (1) The SK DCN key is supplied with the insert (2) Cutting diameter minimum (3) Cutting diameter maximum (4) Maximum overhang (5) Seat size code (6) Master insert identification 115
