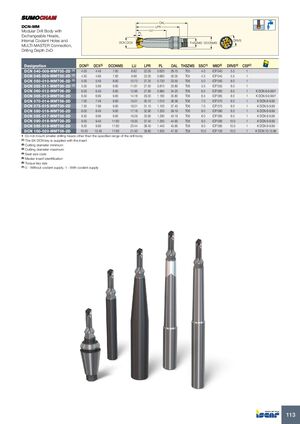

OAL DCN-MM LPR Modular Drill Body with LU PL Exchangeable Heads, Internal Coolant Holes and DCN-DCX THSZMS DCONMS DRVS MULTI-MASTER Connection, Drilling Depth 2xD Designation DCN(2) DCX(3) DCONMS LU LPR PL OAL THSZMS SSC(4) MIID(5) DRVS(6) CSP(7) DCN 040-008-MMT05-2D (1) 4.00 4.49 7.60 8.62 22.00 0.620 28.75 T05 4.0 ICP 040 5.5 1 DCN 045-009-MMT05-2D (1) 4.50 4.99 7.60 9.66 23.30 0.660 30.05 T05 4.5 ICP 045 5.5 1 DCN 050-010-MMT06-2D (1) 5.00 5.49 9.60 10.73 27.25 0.730 33.55 T06 5.0 ICP 050 8.0 1 DCN 055-011-MMT06-2D (1) 5.50 5.99 9.60 11.81 27.50 0.810 33.80 T06 5.5 ICP 055 8.0 1 DCN 060-012-MMT06-2D 6.00 6.49 9.60 12.96 27.90 0.960 34.20 T06 6.0 ICP 060 8.0 1 K DCN 6-9.99-Y DCN 065-013-MMT06-2D 6.50 6.99 9.60 14.18 29.50 1.180 35.80 T06 6.5 ICP 065 8.0 1 K DCN 6-9.99-Y DCN 070-014-MMT06-2D 7.00 7.49 9.60 15.01 30.10 1.010 36.39 T06 7.0 ICP 070 8.0 1 K DCN 6-9.99 DCN 075-015-MMT06-2D 7.50 7.99 9.60 16.01 31.10 1.100 37.40 T06 7.0 ICP 075 8.0 1 K DCN 6-9.99 DCN 080-016-MMT06-2D 8.00 8.49 9.60 17.18 32.90 1.200 39.19 T06 8.0 ICP 080 8.0 1 K DCN 6-9.99 DCN 085-017-MMT06-2D 8.50 8.99 9.60 18.29 33.90 1.290 40.19 T06 8.0 ICP 085 8.0 1 K DCN 6-9.99 DCN 090-018-MMT08-2D 9.00 9.49 11.60 19.35 37.40 1.350 44.90 T08 9.0 ICP 090 10.0 1 K DCN 6-9.99 DCN 095-019-MMT08-2D 9.50 9.99 11.60 20.44 38.40 1.440 45.90 T08 9.0 ICP 095 10.0 1 K DCN 6-9.99 DCN 100-020-MMT08-2D 10.00 10.49 11.60 21.50 39.80 1.500 47.30 T08 10.0 ICP 100 10.0 1 K DCN 10-13.99 • Do not mount smaller drilling heads other than the specified range of the drill body (1) The SK DCN key is supplied with the insert (2) Cutting diameter minimum (3) Cutting diameter maximum (4) Seat size code (5) Master insert identification (6) Torque key size (7) 0 - Without coolant supply, 1 - With coolant supply 113
