Каталог Iscar вращающийся инструмент 2017 - страница 979

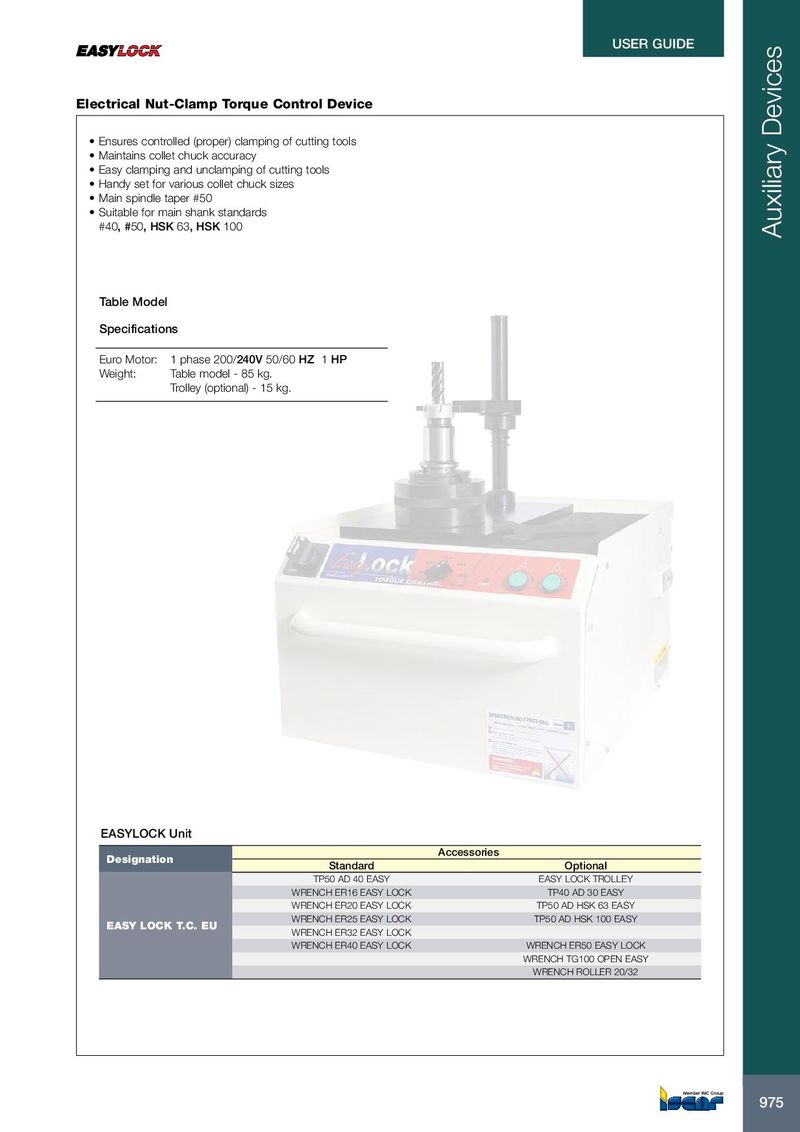

USER GUIDE Electrical Nut-Clamp Torque Control Device • Ensures controlled (proper) clamping of cutting tools • Maintains collet chuck accuracy • Easy clamping and unclamping of cutting tools • Handy set for various collet chuck sizes • Main spindle taper #50 • Suitable for main shank standards #40, #50, HSK 63, HSK 100 Auxiliary Devices Table Model Specifications Euro Motor: 1 phase 200/240V 50/60 HZ 1 HP Weight: Table model - 85 kg. Trolley (optional) - 15 kg. EASYLOCK Unit Accessories Designation Standard Optional TP50 AD 40 EASY EASY LOCK TROLLEY WRENCH ER16 EASY LOCK TP40 AD 30 EASY WRENCH ER20 EASY LOCK TP50 AD HSK 63 EASY WRENCH ER25 EASY LOCK TP50 AD HSK 100 EASY EASY LOCK T.C. EU WRENCH ER32 EASY LOCK WRENCH ER40 EASY LOCK WRENCH ER50 EASY LOCK WRENCH TG100 OPEN EASY WRENCH ROLLER 20/32 975
