Каталог Iscar вращающийся инструмент 2017 - страница 976

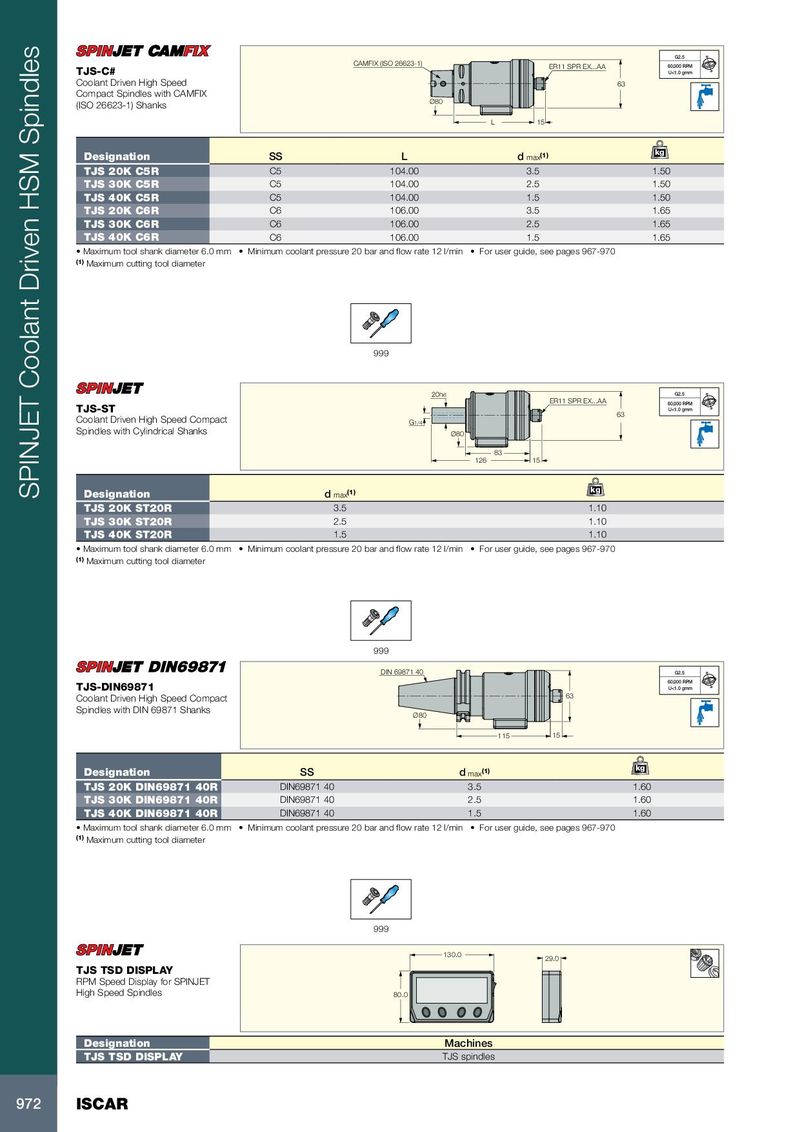

G2.5 CAMFIX (ISO 26623-1) ER11 SPR EX...AA 60,000 RPM TJS-C# U<1.0 gmm Coolant Driven High Speed 63 Compact Spindles with CAMFIX Ø80 (ISO 26623-1) Shanks L 15 kg Designation SS L d max (1) TJS 20K C5R C5 104.00 3.5 1.50 TJS 30K C5R C5 104.00 2.5 1.50 TJS 40K C5R C5 104.00 1.5 1.50 TJS 20K C6R C6 106.00 3.5 1.65 TJS 30K C6R C6 106.00 2.5 1.65 TJS 40K C6R C6 106.00 1.5 1.65 • Maximum tool shank diameter 6.0 mm • Minimum coolant pressure 20 bar and flow rate 12 l/min • For user guide, see pages 967-970 (1) Maximum cutting tool diameter 999 20h6 G2.5 ER11 SPR EX...AA 60,000 RPM TJS-ST U<1.0 gmm 63 Coolant Driven High Speed Compact G1/4 Spindles with Cylindrical Shanks Ø80 83 126 15 SPINJET Coolant Driven HSM Spindles Designation d max (1) kg TJS 20K ST20R 3.5 1.10 TJS 30K ST20R 2.5 1.10 TJS 40K ST20R 1.5 1.10 • Maximum tool shank diameter 6.0 mm • Minimum coolant pressure 20 bar and flow rate 12 l/min • For user guide, see pages 967-970 (1) Maximum cutting tool diameter 999 DIN 69871 40 G2.5 60,000 RPM TJS-DIN69871 U<1.0 gmm Coolant Driven High Speed Compact 63 Spindles with DIN 69871 Shanks Ø80 115 15 Designation SS d max (1) kg TJS 20K DIN69871 40R DIN69871 40 3.5 1.60 TJS 30K DIN69871 40R DIN69871 40 2.5 1.60 TJS 40K DIN69871 40R DIN69871 40 1.5 1.60 • Maximum tool shank diameter 6.0 mm • Minimum coolant pressure 20 bar and flow rate 12 l/min • For user guide, see pages 967-970 (1) Maximum cutting tool diameter 999 130.0 29.0 TJS TSD DISPLAY RPM Speed Display for SPINJET High Speed Spindles 80.0 Designation Machines TJS TSD DISPLAY TJS spindles 972 ISCAR
