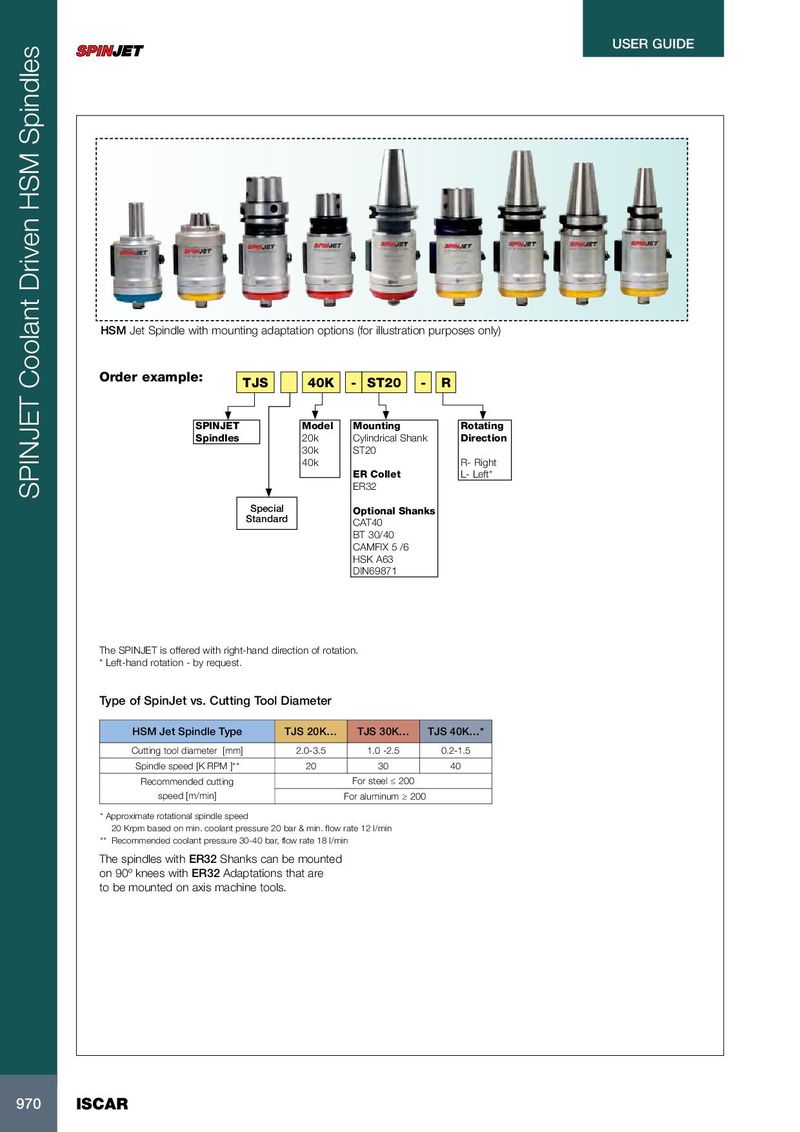

USER GUIDE HSM Jet Spindle with mounting adaptation options (for illustration purposes only) Order example: TJS 40K - ST20 - R SPINJET Model Mounting Rotating Spindles 20k Cylindrical Shank Direction 30k ST20 40k R- Right ER Collet L- Left* ER32 SPINJET Coolant Driven HSM Spindles Special Optional Shanks Standard CAT40 BT 30/40 CAMFIX 5 /6 HSK A63 DIN69871 The SPINJET is offered with right-hand direction of rotation. * Left-hand rotation - by request. Type of SpinJet vs. Cutting Tool Diameter HSM Jet Spindle Type TJS 20K… TJS 30K… TJS 40K…* Cutting tool diameter [mm] 2.0-3.5 1.0 -2.5 0.2-1.5 Spindle speed [K RPM ]** 20 30 40 Recommended cutting For steel ≤ 200 speed [m/min] For aluminum ≥ 200 * Approximate rotational spindle speed 20 Krpm based on min. coolant pressure 20 bar & min. flow rate 12 l/min ** Recommended coolant pressure 30-40 bar, flow rate 18 l/min The spindles with ER32 Shanks can be mounted on 90º knees with ER32 Adaptations that are to be mounted on axis machine tools. 970 ISCAR
