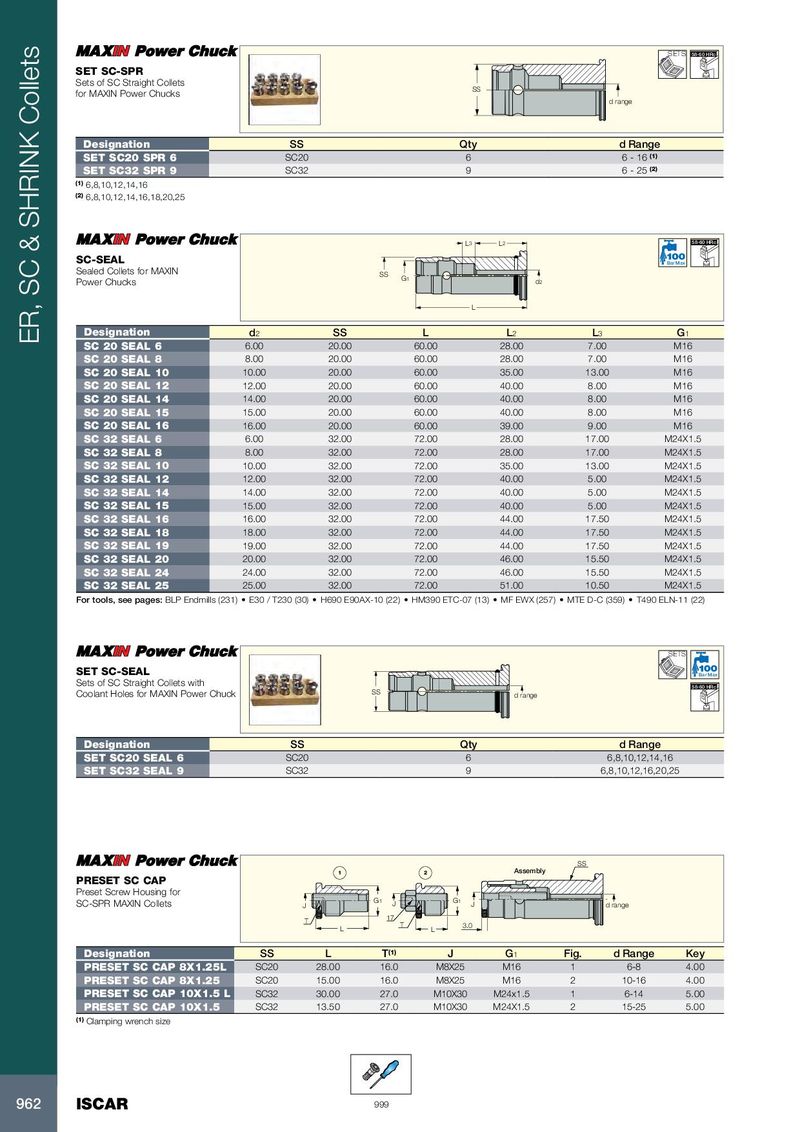

Каталог Iscar вращающийся инструмент 2017 - страница 966

SETS 58-60 HRc SET SC-SPR Sets of SC Straight Collets SS for MAXIN Power Chucks d range Designation SS Qty d Range SET SC20 SPR 6 SC20 6 6 - 16 (1) SET SC32 SPR 9 SC32 9 6 - 25 (2) (1) 6,8,10,12,14,16 (2) 6,8,10,12,14,16,18,20,25 L 3 L 2 58-60 HRc SC-SEAL Bar Max Sealed Collets for MAXIN SS G 1 Power Chucks d 2 L Designation d 2 SS L L 2 L 3 G 1 ER, SC & SHRINK Collets SC 20 SEAL 6 6.00 20.00 60.00 28.00 7.00 M16 SC 20 SEAL 8 8.00 20.00 60.00 28.00 7.00 M16 SC 20 SEAL 10 10.00 20.00 60.00 35.00 13.00 M16 SC 20 SEAL 12 12.00 20.00 60.00 40.00 8.00 M16 SC 20 SEAL 14 14.00 20.00 60.00 40.00 8.00 M16 SC 20 SEAL 15 15.00 20.00 60.00 40.00 8.00 M16 SC 20 SEAL 16 16.00 20.00 60.00 39.00 9.00 M16 SC 32 SEAL 6 6.00 32.00 72.00 28.00 17.00 M24X1.5 SC 32 SEAL 8 8.00 32.00 72.00 28.00 17.00 M24X1.5 SC 32 SEAL 10 10.00 32.00 72.00 35.00 13.00 M24X1.5 SC 32 SEAL 12 12.00 32.00 72.00 40.00 5.00 M24X1.5 SC 32 SEAL 14 14.00 32.00 72.00 40.00 5.00 M24X1.5 SC 32 SEAL 15 15.00 32.00 72.00 40.00 5.00 M24X1.5 SC 32 SEAL 16 16.00 32.00 72.00 44.00 17.50 M24X1.5 SC 32 SEAL 18 18.00 32.00 72.00 44.00 17.50 M24X1.5 SC 32 SEAL 19 19.00 32.00 72.00 44.00 17.50 M24X1.5 SC 32 SEAL 20 20.00 32.00 72.00 46.00 15.50 M24X1.5 SC 32 SEAL 24 24.00 32.00 72.00 46.00 15.50 M24X1.5 SC 32 SEAL 25 25.00 32.00 72.00 51.00 10.50 M24X1.5 For tools, see pages: BLP Endmills (231) • E30 / T230 (30) • H690 E90AX-10 (22) • HM390 ETC-07 (13) • MF EWX (257) • MTE D-C (359) • T490 ELN-11 (22) SETS SET SC-SEAL Bar Max Sets of SC Straight Collets with 58-60 HRc Coolant Holes for MAXIN Power Chuck SS d range Designation SS Qty d Range SET SC20 SEAL 6 SC20 6 6,8,10,12,14,16 SET SC32 SEAL 9 SC32 9 6,8,10,12,16,20,25 SS 1 2 Assembly PRESET SC CAP Preset Screw Housing for SC-SPR MAXIN Collets G 1 G 1 J J J d range T 17 L T L 3.0 Designation SS L T (1) J G 1 Fig. d Range Key PRESET SC CAP 8X1.25L SC20 28.00 16.0 M8X25 M16 1 6-8 4.00 PRESET SC CAP 8X1.25 SC20 15.00 16.0 M8X25 M16 2 10-16 4.00 PRESET SC CAP 10X1.5 L SC32 30.00 27.0 M10X30 M24x1.5 1 6-14 5.00 PRESET SC CAP 10X1.5 SC32 13.50 27.0 M10X30 M24X1.5 2 15-25 5.00 (1) Clamping wrench size 962 ISCAR 999
