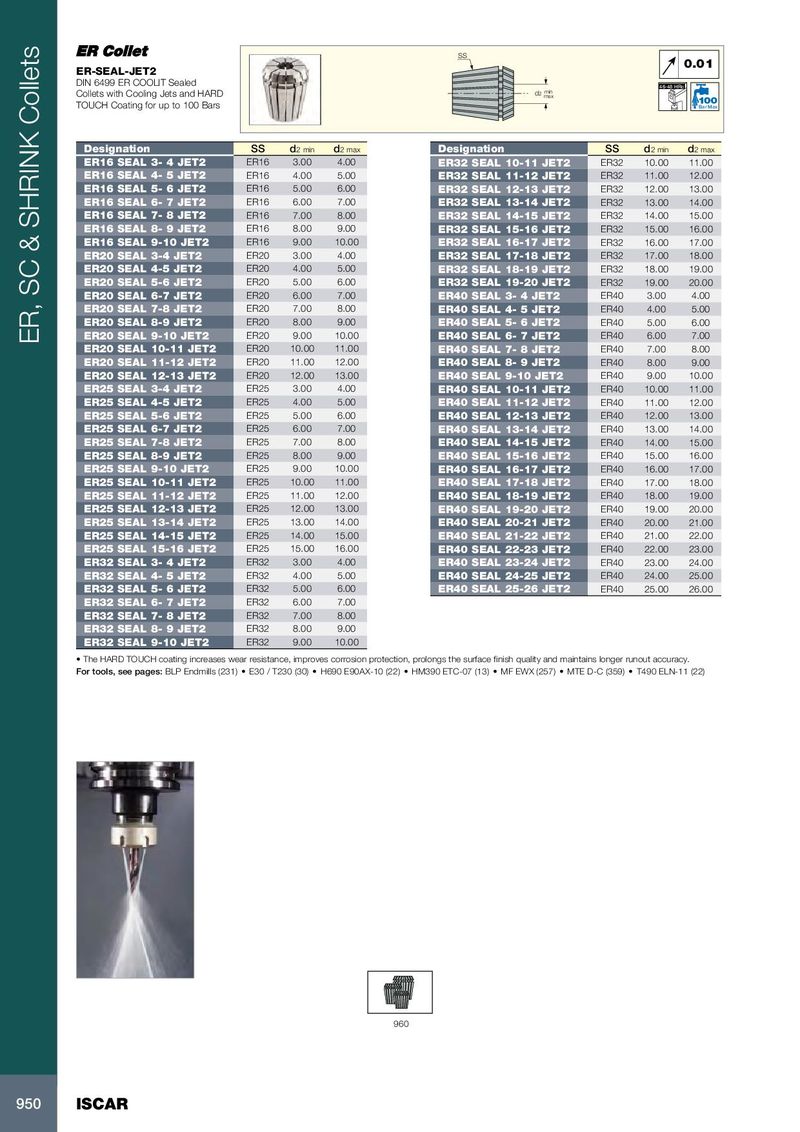

Каталог Iscar вращающийся инструмент 2017 - страница 954

SS 0.01 ER-SEAL-JET2 DIN 6499 ER COOLIT Sealed 46-48 HRc Collets with Cooling Jets and HARD d2 min max TOUCH Coating for up to 100 Bars Bar Max Designation SS d 2 min d 2 max Designation SS d 2 min d 2 max ER16 SEAL 3- 4 JET2 ER16 3.00 4.00 ER32 SEAL 10-11 JET2 ER32 10.00 11.00 ER16 SEAL 4- 5 JET2 ER16 4.00 5.00 ER32 SEAL 11-12 JET2 ER32 11.00 12.00 ER16 SEAL 5- 6 JET2 ER16 5.00 6.00 ER32 SEAL 12-13 JET2 ER32 12.00 13.00 ER16 SEAL 6- 7 JET2 ER16 6.00 7.00 ER32 SEAL 13-14 JET2 ER32 13.00 14.00 ER16 SEAL 7- 8 JET2 ER16 7.00 8.00 ER32 SEAL 14-15 JET2 ER32 14.00 15.00 ER16 SEAL 8- 9 JET2 ER16 8.00 9.00 ER32 SEAL 15-16 JET2 ER32 15.00 16.00 ER16 SEAL 9-10 JET2 ER16 9.00 10.00 ER32 SEAL 16-17 JET2 ER32 16.00 17.00 ER20 SEAL 3-4 JET2 ER20 3.00 4.00 ER32 SEAL 17-18 JET2 ER32 17.00 18.00 ER20 SEAL 4-5 JET2 ER20 4.00 5.00 ER32 SEAL 18-19 JET2 ER32 18.00 19.00 ER20 SEAL 5-6 JET2 ER20 5.00 6.00 ER32 SEAL 19-20 JET2 ER32 19.00 20.00 ER20 SEAL 6-7 JET2 ER20 6.00 7.00 ER40 SEAL 3- 4 JET2 ER40 3.00 4.00 ER20 SEAL 7-8 JET2 ER20 7.00 8.00 ER40 SEAL 4- 5 JET2 ER40 4.00 5.00 ER20 SEAL 8-9 JET2 ER20 8.00 9.00 ER40 SEAL 5- 6 JET2 ER40 5.00 6.00 ER20 SEAL 9-10 JET2 ER20 9.00 10.00 ER40 SEAL 6- 7 JET2 ER40 6.00 7.00 ER, SC & SHRINK Collets ER20 SEAL 10-11 JET2 ER20 10.00 11.00 ER40 SEAL 7- 8 JET2 ER40 7.00 8.00 ER20 SEAL 11-12 JET2 ER20 11.00 12.00 ER40 SEAL 8- 9 JET2 ER40 8.00 9.00 ER20 SEAL 12-13 JET2 ER20 12.00 13.00 ER40 SEAL 9-10 JET2 ER40 9.00 10.00 ER25 SEAL 3-4 JET2 ER25 3.00 4.00 ER40 SEAL 10-11 JET2 ER40 10.00 11.00 ER25 SEAL 4-5 JET2 ER25 4.00 5.00 ER40 SEAL 11-12 JET2 ER40 11.00 12.00 ER25 SEAL 5-6 JET2 ER25 5.00 6.00 ER40 SEAL 12-13 JET2 ER40 12.00 13.00 ER25 SEAL 6-7 JET2 ER25 6.00 7.00 ER40 SEAL 13-14 JET2 ER40 13.00 14.00 ER25 SEAL 7-8 JET2 ER25 7.00 8.00 ER40 SEAL 14-15 JET2 ER40 14.00 15.00 ER25 SEAL 8-9 JET2 ER25 8.00 9.00 ER40 SEAL 15-16 JET2 ER40 15.00 16.00 ER25 SEAL 9-10 JET2 ER25 9.00 10.00 ER40 SEAL 16-17 JET2 ER40 16.00 17.00 ER25 SEAL 10-11 JET2 ER25 10.00 11.00 ER40 SEAL 17-18 JET2 ER40 17.00 18.00 ER25 SEAL 11-12 JET2 ER25 11.00 12.00 ER40 SEAL 18-19 JET2 ER40 18.00 19.00 ER25 SEAL 12-13 JET2 ER25 12.00 13.00 ER40 SEAL 19-20 JET2 ER40 19.00 20.00 ER25 SEAL 13-14 JET2 ER25 13.00 14.00 ER40 SEAL 20-21 JET2 ER40 20.00 21.00 ER25 SEAL 14-15 JET2 ER25 14.00 15.00 ER40 SEAL 21-22 JET2 ER40 21.00 22.00 ER25 SEAL 15-16 JET2 ER25 15.00 16.00 ER40 SEAL 22-23 JET2 ER40 22.00 23.00 ER32 SEAL 3- 4 JET2 ER32 3.00 4.00 ER40 SEAL 23-24 JET2 ER40 23.00 24.00 ER32 SEAL 4- 5 JET2 ER32 4.00 5.00 ER40 SEAL 24-25 JET2 ER40 24.00 25.00 ER32 SEAL 5- 6 JET2 ER32 5.00 6.00 ER40 SEAL 25-26 JET2 ER40 25.00 26.00 ER32 SEAL 6- 7 JET2 ER32 6.00 7.00 ER32 SEAL 7- 8 JET2 ER32 7.00 8.00 ER32 SEAL 8- 9 JET2 ER32 8.00 9.00 ER32 SEAL 9-10 JET2 ER32 9.00 10.00 • The HARD TOUCH coating increases wear resistance, improves corrosion protection, prolongs the surface finish quality and maintains longer runout accuracy. For tools, see pages: BLP Endmills (231) • E30 / T230 (30) • H690 E90AX-10 (22) • HM390 ETC-07 (13) • MF EWX (257) • MTE D-C (359) • T490 ELN-11 (22) 960 950 ISCAR
