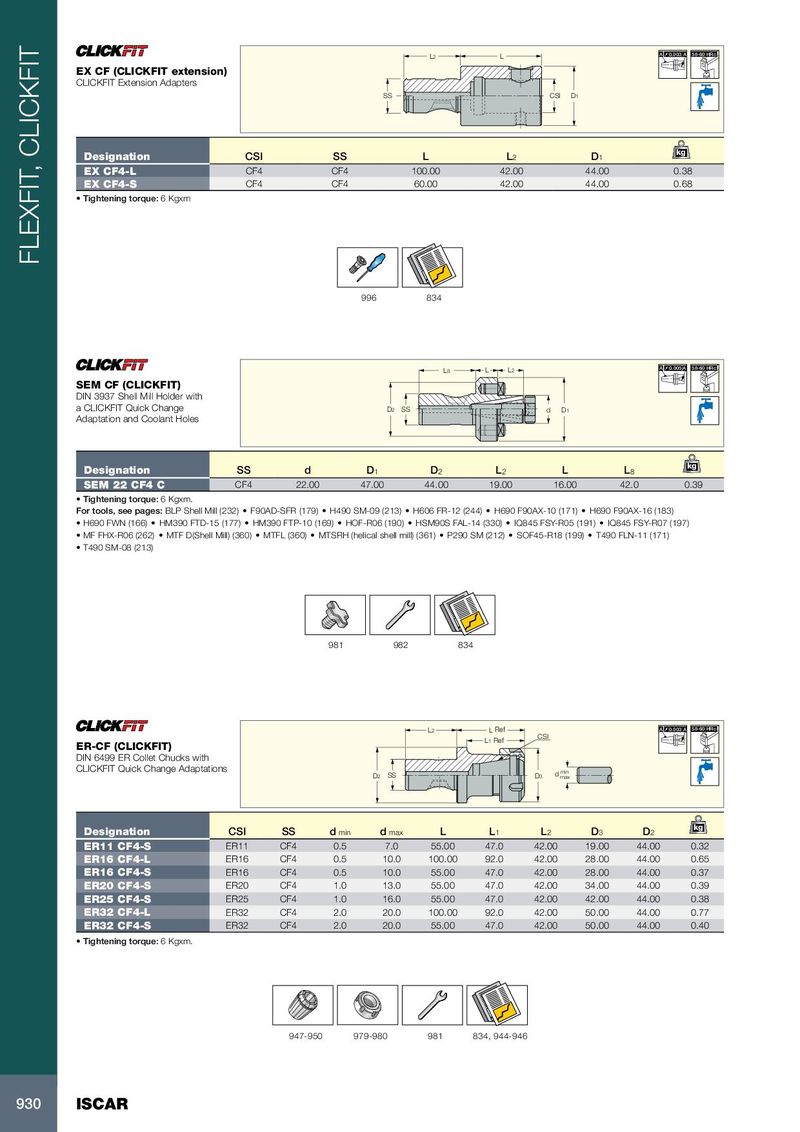

L 2 L A 0.003 A 58-60 HRc EX CF (CLICKFIT extension) CLICKFIT Extension Adapters SS CSI D 1 kg Designation CSI SS L L 2 D 1 EX CF4-L CF4 CF4 100.00 42.00 44.00 0.38 EX CF4-S CF4 CF4 60.00 42.00 44.00 0.68 • Tightening torque: 6 Kgxm FLEXFIT, CLICKFIT 996 834 L 8 L L 2 A 0.005 A 58-60 HRc SEM CF (CLICKFIT) DIN 3937 Shell Mill Holder with a CLICKFIT Quick Change D 2 SS d D 1 Adaptation and Coolant Holes kg Designation SS d D 1 D 2 L 2 L L 8 SEM 22 CF4 C CF4 22.00 47.00 44.00 19.00 16.00 42.0 0.39 • Tightening torque: 6 Kgxm. For tools, see pages: BLP Shell Mill (232) • F90AD-SFR (179) • H490 SM-09 (213) • H606 FR-12 (244) • H690 F90AX-10 (171) • H690 F90AX-16 (183) • H690 FWN (166) • HM390 FTD-15 (177) • HM390 FTP-10 (169) • HOF-R06 (190) • HSM90S FAL-14 (330) • IQ845 FSY-R05 (191) • IQ845 FSY-R07 (197) • MF FHX-R06 (262) • MTF D(Shell Mill) (360) • MTFL (360) • MTSRH (helical shell mill) (361) • P290 SM (212) • SOF45-R18 (199) • T490 FLN-11 (171) • T490 SM-08 (213) 981 982 834 L 2 L Ref A 0.003 A 58-60 HRc CSI L 1 Ref ER-CF (CLICKFIT) DIN 6499 ER Collet Chucks with CLICKFIT Quick Change Adaptations D 2 SS D 3 d min max kg Designation CSI SS d min d max L L 1 L 2 D 3 D 2 ER11 CF4-S ER11 CF4 0.5 7.0 55.00 47.0 42.00 19.00 44.00 0.32 ER16 CF4-L ER16 CF4 0.5 10.0 100.00 92.0 42.00 28.00 44.00 0.65 ER16 CF4-S ER16 CF4 0.5 10.0 55.00 47.0 42.00 28.00 44.00 0.37 ER20 CF4-S ER20 CF4 1.0 13.0 55.00 47.0 42.00 34.00 44.00 0.39 ER25 CF4-S ER25 CF4 1.0 16.0 55.00 47.0 42.00 42.00 44.00 0.38 ER32 CF4-L ER32 CF4 2.0 20.0 100.00 92.0 42.00 50.00 44.00 0.77 ER32 CF4-S ER32 CF4 2.0 20.0 55.00 47.0 42.00 50.00 44.00 0.40 • Tightening torque: 6 Kgxm. 947-950 979-980 981 834, 944-946 930 ISCAR
