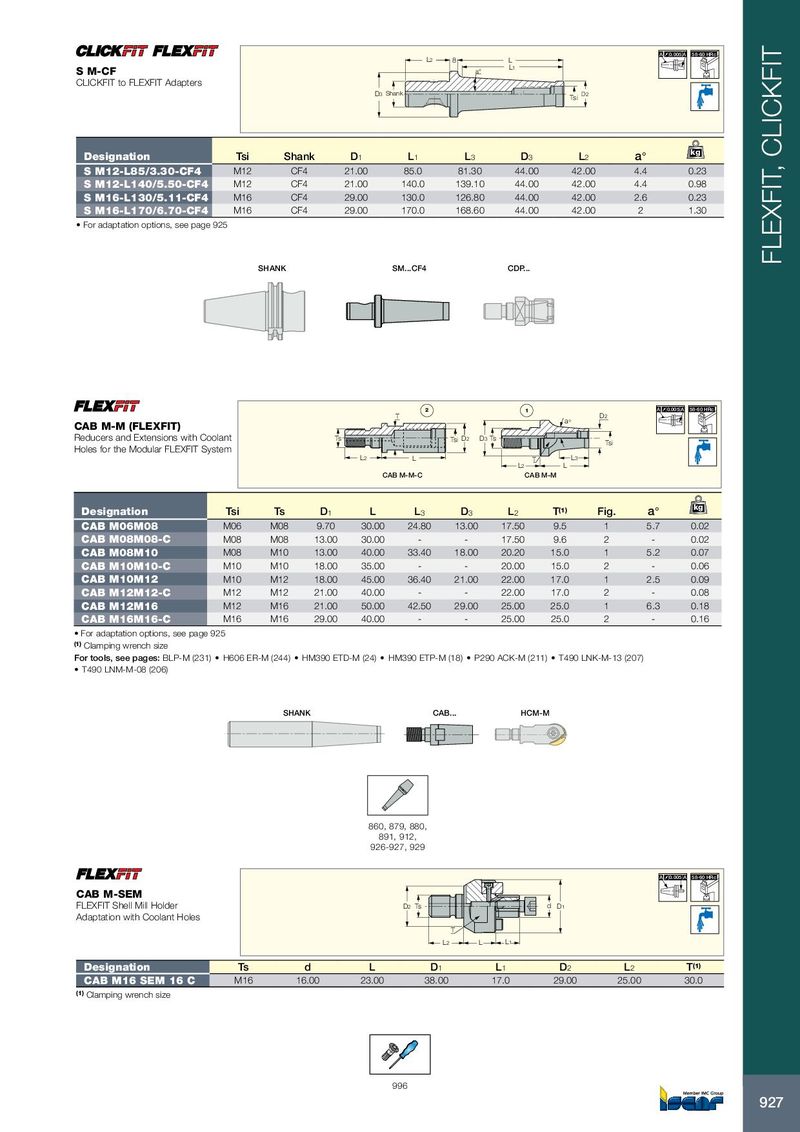

Каталог Iscar вращающийся инструмент 2017 - страница 931

A 0.005 A 58-60 HRc L 2 8 L S M-CF a° L 1 CLICKFIT to FLEXFIT Adapters D 3 Shank Tsi D 2 kg Designation Tsi Shank D 1 L 1 L 3 D 3 L 2 a° S M12-L85/3.30-CF4 M12 CF4 21.00 85.0 81.30 44.00 42.00 4.4 0.23 S M12-L140/5.50-CF4 M12 CF4 21.00 140.0 139.10 44.00 42.00 4.4 0.98 S M16-L130/5.11-CF4 M16 CF4 29.00 130.0 126.80 44.00 42.00 2.6 0.23 S M16-L170/6.70-CF4 M16 CF4 29.00 170.0 168.60 44.00 42.00 2 1.30 • For adaptation options, see page 925 FLEXFIT, CLICKFIT SHANK SM...CF4 CDP... 2 1 A 0.005 A 58-60 HRc T D 2 a ° CAB M-M (FLEXFIT) Reducers and Extensions with Coolant Ts Tsi D2 D 3 Ts Tsi Holes for the Modular FLEXFIT System L 2 L T L 3 L 2 L CAB M-M-C CAB M-M kg Designation Tsi Ts D 1 L L 3 D 3 L 2 T (1) Fig. a° CAB M06M08 M06 M08 9.70 30.00 24.80 13.00 17.50 9.5 1 5.7 0.02 CAB M08M08-C M08 M08 13.00 30.00 - - 17.50 9.6 2 - 0.02 CAB M08M10 M08 M10 13.00 40.00 33.40 18.00 20.20 15.0 1 5.2 0.07 CAB M10M10-C M10 M10 18.00 35.00 - - 20.00 15.0 2 - 0.06 CAB M10M12 M10 M12 18.00 45.00 36.40 21.00 22.00 17.0 1 2.5 0.09 CAB M12M12-C M12 M12 21.00 40.00 - - 22.00 17.0 2 - 0.08 CAB M12M16 M12 M16 21.00 50.00 42.50 29.00 25.00 25.0 1 6.3 0.18 CAB M16M16-C M16 M16 29.00 40.00 - - 25.00 25.0 2 - 0.16 • For adaptation options, see page 925 (1) Clamping wrench size For tools, see pages: BLP-M (231) • H606 ER-M (244) • HM390 ETD-M (24) • HM390 ETP-M (18) • P290 ACK-M (211) • T490 LNK-M-13 (207) • T490 LNM-M-08 (206) SHANK CAB... HCM-M SHANK S M...-CF4 CDP 860, 879, 880, 891, 912, 926-927, 929 A 0.005 A 58-60 HRc CAB M-SEM FLEXFIT Shell Mill Holder D2 Ts d D1 Adaptation with Coolant Holes T L2 L L1 Designation Ts d L D 1 L 1 D 2 L 2 T (1) CAB M16 SEM 16 C M16 16.00 23.00 38.00 17.0 29.00 25.00 30.0 (1) Clamping wrench size 996 927
