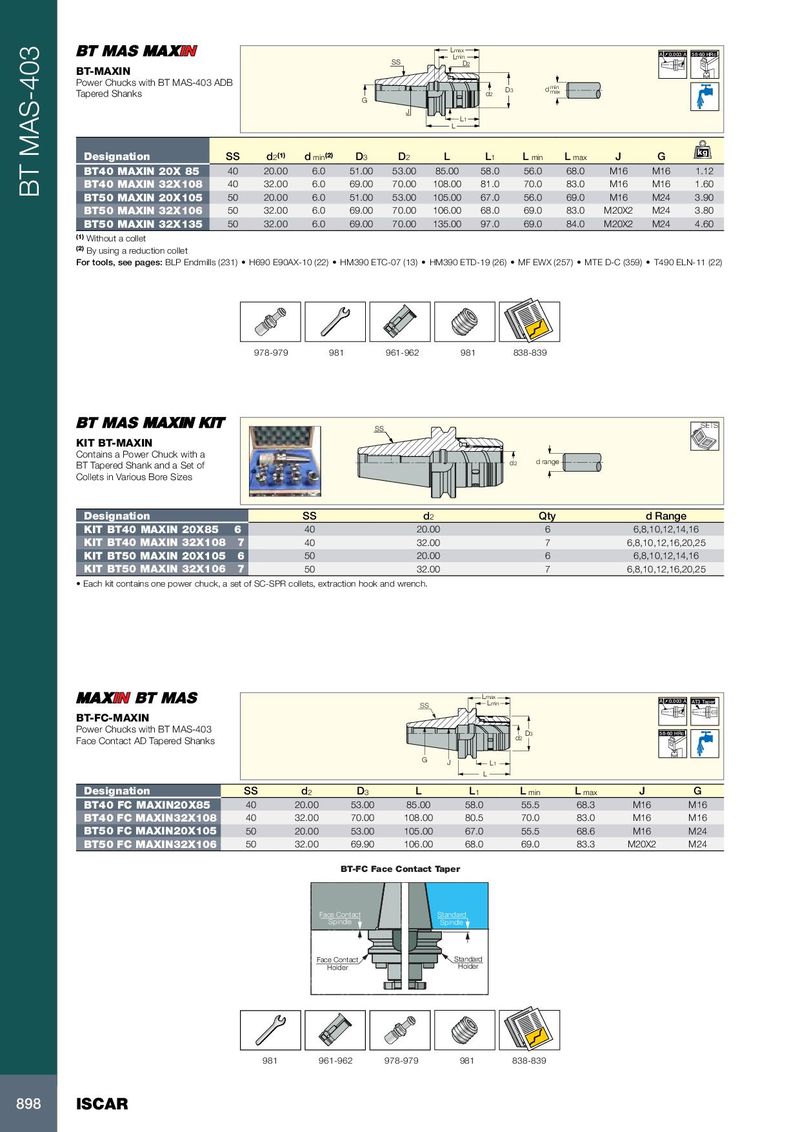

L max L min A 0.003 A 58-60 HRc SS D 2 BT-MAXIN Power Chucks with BT MAS-403 ADB D 3 d min Tapered Shanks d 2 max G J L 1 L kg Designation SS d 2 (1) d min (2) D 3 D 2 L L 1 L min L max J G BT40 MAXIN 20X 85 40 20.00 6.0 51.00 53.00 85.00 58.0 56.0 68.0 M16 M16 1.12 BT40 MAXIN 32X108 40 32.00 6.0 69.00 70.00 108.00 81.0 70.0 83.0 M16 M16 1.60 BT MAS-403 BT50 MAXIN 20X105 50 20.00 6.0 51.00 53.00 105.00 67.0 56.0 69.0 M16 M24 3.90 BT50 MAXIN 32X106 50 32.00 6.0 69.00 70.00 106.00 68.0 69.0 83.0 M20X2 M24 3.80 BT50 MAXIN 32X135 50 32.00 6.0 69.00 70.00 135.00 97.0 69.0 84.0 M20X2 M24 4.60 (1) Without a collet (2) By using a reduction collet For tools, see pages: BLP Endmills (231) • H690 E90AX-10 (22) • HM390 ETC-07 (13) • HM390 ETD-19 (26) • MF EWX (257) • MTE D-C (359) • T490 ELN-11 (22) 978-979 981 961-962 981 838-839 SS SETS KIT BT-MAXIN Contains a Power Chuck with a BT Tapered Shank and a Set of d 2 d range Collets in Various Bore Sizes Designation SS d 2 Qty d Range KIT BT40 MAXIN 20X85 6 40 20.00 6 6,8,10,12,14,16 KIT BT40 MAXIN 32X108 7 40 32.00 7 6,8,10,12,16,20,25 KIT BT50 MAXIN 20X105 6 50 20.00 6 6,8,10,12,14,16 KIT BT50 MAXIN 32X106 7 50 32.00 7 6,8,10,12,16,20,25 • Each kit contains one power chuck, a set of SC-SPR collets, extraction hook and wrench. Lmax Lmin A 0.003 A AT3 Taper SS BT-FC-MAXIN Power Chucks with BT MAS-403 D3 58-60 HRc Face Contact AD Tapered Shanks d2 G J L1 L Designation SS d 2 D 3 L L 1 L min L max J G BT40 FC MAXIN20X85 40 20.00 53.00 85.00 58.0 55.5 68.3 M16 M16 BT40 FC MAXIN32X108 40 32.00 70.00 108.00 80.5 70.0 83.0 M16 M16 BT50 FC MAXIN20X105 50 20.00 53.00 105.00 67.0 55.5 68.6 M16 M24 BT50 FC MAXIN32X106 50 32.00 69.90 106.00 68.0 69.0 83.3 M20X2 M24 BT-FC Face Contact Taper Face Contact Standard Spindle Spindle Face Contact Standard Holder Holder 981 961-962 978-979 981 838-839 898 ISCAR
