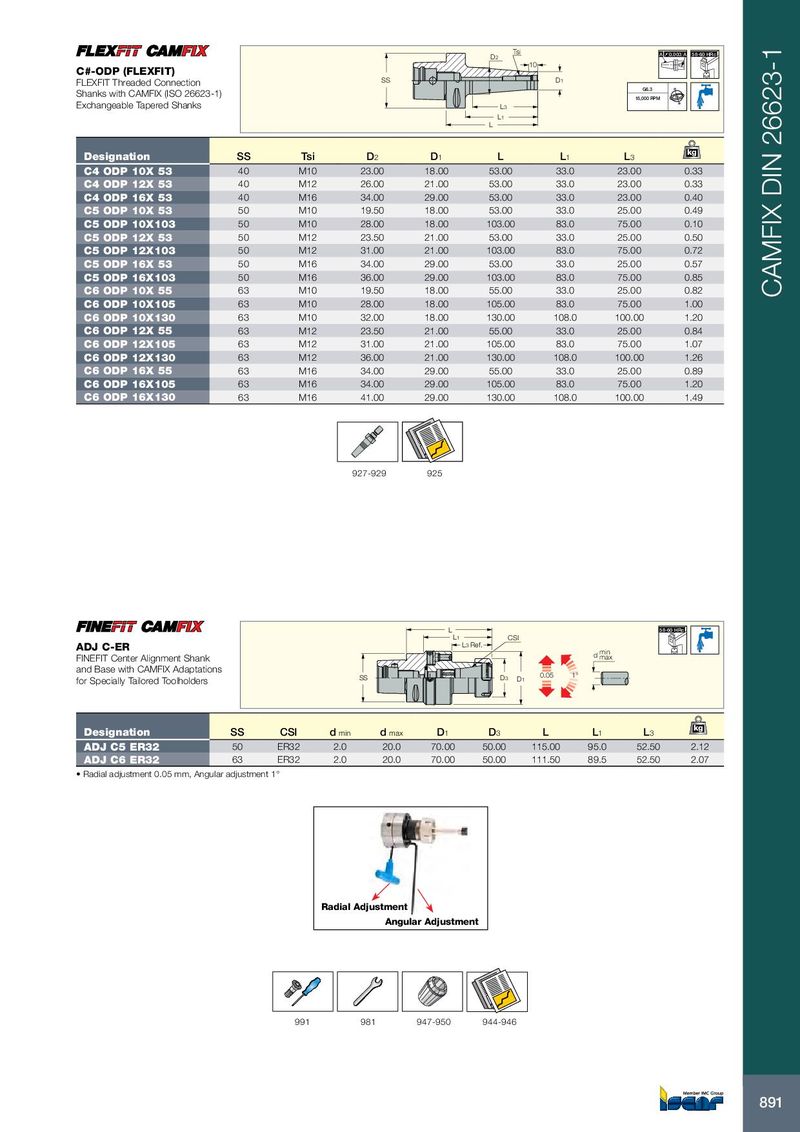

Tsi D2 A 0.003 A 58-60 HRc 10 C#-ODP (FLEXFIT) FLEXFIT Threaded Connection SS D1 G6.3 Shanks with CAMFIX (ISO 26623-1) 15,000 RPM Exchangeable Tapered Shanks L3 L1 L kg Designation SS Tsi D 2 D 1 L L 1 L 3 C4 ODP 10X 53 40 M10 23.00 18.00 53.00 33.0 23.00 0.33 C4 ODP 12X 53 40 M12 26.00 21.00 53.00 33.0 23.00 0.33 C4 ODP 16X 53 40 M16 34.00 29.00 53.00 33.0 23.00 0.40 C5 ODP 10X 53 50 M10 19.50 18.00 53.00 33.0 25.00 0.49 C5 ODP 10X103 50 M10 28.00 18.00 103.00 83.0 75.00 0.10 C5 ODP 12X 53 50 M12 23.50 21.00 53.00 33.0 25.00 0.50 C5 ODP 12X103 50 M12 31.00 21.00 103.00 83.0 75.00 0.72 C5 ODP 16X 53 50 M16 34.00 29.00 53.00 33.0 25.00 0.57 C5 ODP 16X103 50 M16 36.00 29.00 103.00 83.0 75.00 0.85 C6 ODP 10X 55 63 M10 19.50 18.00 55.00 33.0 25.00 0.82 CAMFIX DIN 26623-1 C6 ODP 10X105 63 M10 28.00 18.00 105.00 83.0 75.00 1.00 C6 ODP 10X130 63 M10 32.00 18.00 130.00 108.0 100.00 1.20 C6 ODP 12X 55 63 M12 23.50 21.00 55.00 33.0 25.00 0.84 C6 ODP 12X105 63 M12 31.00 21.00 105.00 83.0 75.00 1.07 C6 ODP 12X130 63 M12 36.00 21.00 130.00 108.0 100.00 1.26 C6 ODP 16X 55 63 M16 34.00 29.00 55.00 33.0 25.00 0.89 C6 ODP 16X105 63 M16 34.00 29.00 105.00 83.0 75.00 1.20 C6 ODP 16X130 63 M16 41.00 29.00 130.00 108.0 100.00 1.49 927-929 925 L 58-60 HRc L1 CSI ADJ C-ER L3 Ref. FINEFIT Center Alignment Shank d min max and Base with CAMFIX Adaptations 0.05 for Specially Tailored Toolholders SS D3 D1 1° kg Designation SS CSI d min d max D 1 D 3 L L 1 L 3 ADJ C5 ER32 50 ER32 2.0 20.0 70.00 50.00 115.00 95.0 52.50 2.12 ADJ C6 ER32 63 ER32 2.0 20.0 70.00 50.00 111.50 89.5 52.50 2.07 • Radial adjustment 0.05 mm, Angular adjustment 1° Radial Adjustment Angular Adjustment 991 981 947-950 944-946 891
